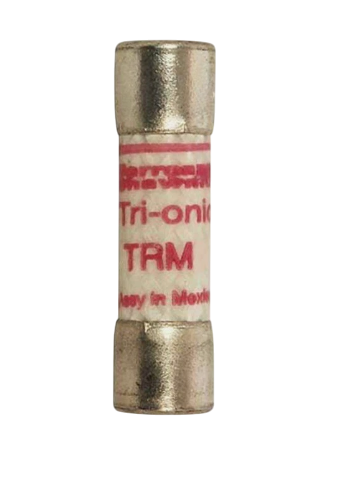

TRM3-1/2 - Ferraz Shawmut 3.5A 250V Time Delay Midget Fuse, 10kA Interrupt Rating

TRM3-1/2

TRM3-1/2 is a 3.5 Amp, 250 Volt AC time delay midget fuse from Ferraz Shawmut designed for circuits with high inrush current.

This fuse features a 12-second time delay at 200% rating, a 10,000 Amp interrupting rating, and a compact 13/32" x 1 1/2" size. It is UL Listed to Standard 248-14 and CSA Certified to Standard C22.2 No. 248.14. The TRM3-1/2 is ideal for protecting small motors, transformers, lighting, and control circuits but is not intended for branch circuit protection.

• Amperage: 3.5 Amps
• Voltage: 250 VAC
• Fuse Class: Midget
• Time Delay: 12 seconds at 200% rating
• Interrupt Rating: 10,000 AIC @ 250 VAC
• Physical Size: 13/32" x 1 1/2"
• Certifications: UL Listed (248-14), CSA Certified (C22.2 No. 248.14)
• Applications: Small motors, transformers, lighting, control circuits
• Not for branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TRM3-1/2
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Tri-Onic
• Type : TRM
• Voltage : 250
• Amperage : 3
• AIC rating : 10kA@250V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1

Product Data

• UPC : 782001743390
• GTIN : 00782001743390
• Weight : 0.01
