Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TRM15

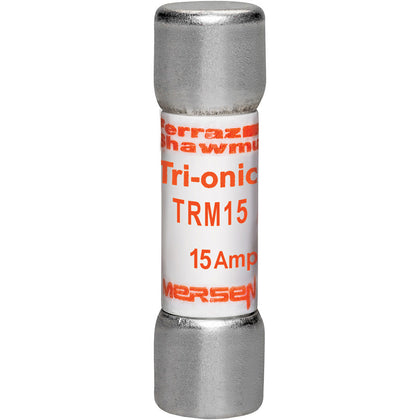

TRM15 is a Mersen time delay midget fuse designed for low voltage applications requiring reliable protection.This 15 amp, 250 volt AC fuse features a 12-second time delay at 200% rated current, making it ideal for protecting small motors, transformers, and high inrush loads. It has a 10,000 amp interrupting rating and a compact cylindrical body with a diameter of 13/32 inch and length of 1-1/2 inch. The fuse meets UL 248-14 and CSA C22.2 certifications and uses ferrule terminals for mounting.
- Key Specifications
- Amperage: 15 A
- Voltage Rating: 250 VAC
- Interrupting Rating: 10,000 AIC
- Time Delay: 12 seconds at 200% rating
- Fuse Type: Midget, Tri-Onic Time Delay
- Body Style: Cylindrical
- Diameter: 13/32 inch
- Length: 1-1/2 inch
- Mounting Type: Ferrule Terminal
- Certifications: UL 248-14, CSA C22.2
Specifications
- Part Number: TRM15
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRM
- Voltage : 250
- Amperage : 15
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001746612
- GTIN : 00782001746612
- Country of Origin : Mexico
- Dimensions : x 1.5" x
- Weight : 5.19
