Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

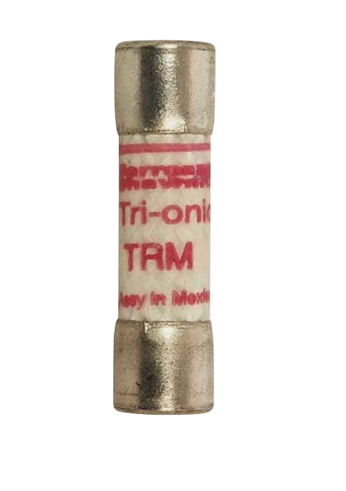

TRM15/100
TRM15/100 is a Mersen time delay midget fuse rated for 0.15 amperes and 250 volts AC with ferrule terminals.TRM15/100 features Tri-Onic® technology providing a 12-second time delay at 200% rated load, suitable for low voltage applications. It has a 10,000 amp interrupting rating at 250 VAC and a compact cartridge body style measuring 13/32 inch diameter by 1 1/2 inch length.
- Key Specifications
- Current Rating: 0.15 A
- Voltage Rating: 250 VAC
- Fuse Type: Time Delay Midget
- Terminal Type: Ferrule
- Interrupting Rating: 10,000 AIC @ 250 VAC
- Trip Class: Time Delay (12 seconds at 200% load)
- Body Style: Cartridge
- Dimensions: 13/32 inch diameter x 1 1/2 inch length
- Series: Tri-Onic® TRM
- Certifications: UL, CSA
Specifications
- Part Number: TRM15/100
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRM
- Voltage : 250
- Amperage : 15
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001743031
- GTIN : 00782001743031
- Weight : 0.01
