Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TRM10

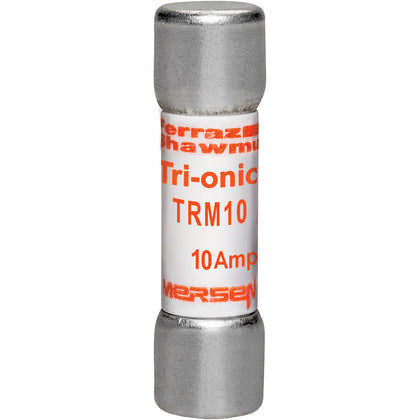

TRM10 is a Mersen Ferraz Shawmut 10 amp, 250 volt AC midget time delay fuse designed for reliable circuit protection.This TRM10 fuse features a time-delay characteristic with a 12-second delay at 200% rated current, suitable for lighting and general purpose applications. It has a 1 pole configuration, a 10,000 amp interrupting rating at 250VAC, and complies with UL 248-14 and CSA C22.2 standards. The fuse measures approximately 0.41 inches in diameter and 1.5 inches in length, making it compact for various mounting types.
- Key Specifications
- Amperage: 10 Amps
- Voltage Rating: 250 VAC
- Poles: 1
- Fuse Class: Midget (TRM Series)
- Speed/Characteristic: Time Delay (Tri-Onic®)
- Interrupting Rating: 10,000 Amps
- Dimensions: 0.41" Diameter x 1.5" Length
- Certifications: UL 248-14, CSA C22.2
- Max Operating Temperature: 176°F (80°C)
- Mounting Type: Ferrule
- Part Number: TRM10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRM
- Voltage : 250
- Amperage : 10
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- UPC : 782001746575
- GTIN : 00782001746575
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.08
