Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

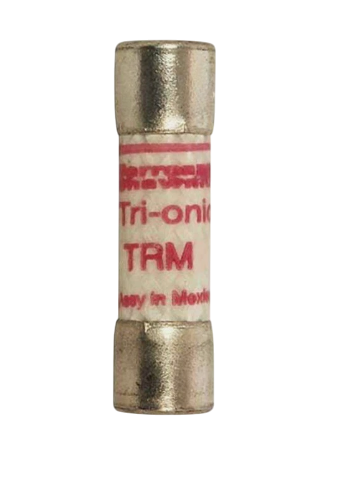

TRM1-6/10
TRM1-6/10 is a 1.6 amp, 250 volt time-delay midget fuse from Mersen Ferraz Shawmut designed for low voltage circuit protection.This fuse features a 12-second time delay at 200% rating, making it suitable for circuits with high inrush currents. It has a 10 kiloamp interrupting rating (I.R.) and is UL listed to standard 248-14 and CSA certified to standard C22.2 No. 248.14. The fuse body is made of GMG insulating material with tin-plated copper ferrule terminals and mounts via clip. It complies with RoHS standards.
- Key Specifications
- Amperage: 1.6 A
- Voltage Rating: 250 VAC
- Fuse Type: Time-Delay Midget
- Interrupt Rating: 10 kA
- Trip Class: Time Delay (12 seconds at 200% rating)
- Mounting Type: Clip
- Terminal Type: Ferrule, Tin-Plated Copper
- Fuse Class: Midget
- Certifications: UL Listed, CSA Certified
- Material: GMG Insulating Body
- RoHS Compliant: Yes
- Dimensions: 1.5 inch length, 0.41 inch diameter
Specifications
- Part Number: TRM1-6/10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRM
- Voltage : 250
- Amperage : 1
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001743253
- GTIN : 00782001743253
- Weight : 0.01
