Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TRM1-4/10

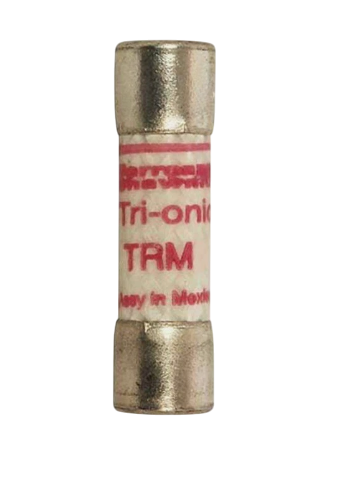

TRM1-4/10 is a Ferraz Shawmut Mersen 1.4 amp, 250 volt AC time-delay midget fuse designed for supplemental protection of small motors and transformers.This Tri-Onic TRM series fuse features a 12-second time delay at 200% rating, a 10,000 amp interrupting rating, and a compact 1 1/2 inch by 13/32 inch cylindrical body. It is UL 248-14 and CSA C22.2 approved, suitable for circuits with high inrush current, and compatible with UltraSafe fuse holders.
- Key Specifications
- Amperage: 1.4 A
- Voltage Rating: 250 VAC
- Fuse Type: Time Delay Midget
- Interrupting Rating: 10,000 A
- Dimensions: 1.5 inch length x 13/32 inch diameter
- Fuse Series: TRM
- Approvals: UL 248-14, CSA C22.2
- Mounting Type: Fuse holder compatible
- Time Delay: 12 seconds at 200% rating
- Application: Supplemental protection for small motors and transformers
Specifications
- Part Number: TRM1-4/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRM
- Voltage : 250
- Amperage : 1
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001743239
- GTIN : 00782001743239
- Weight : 25
