Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

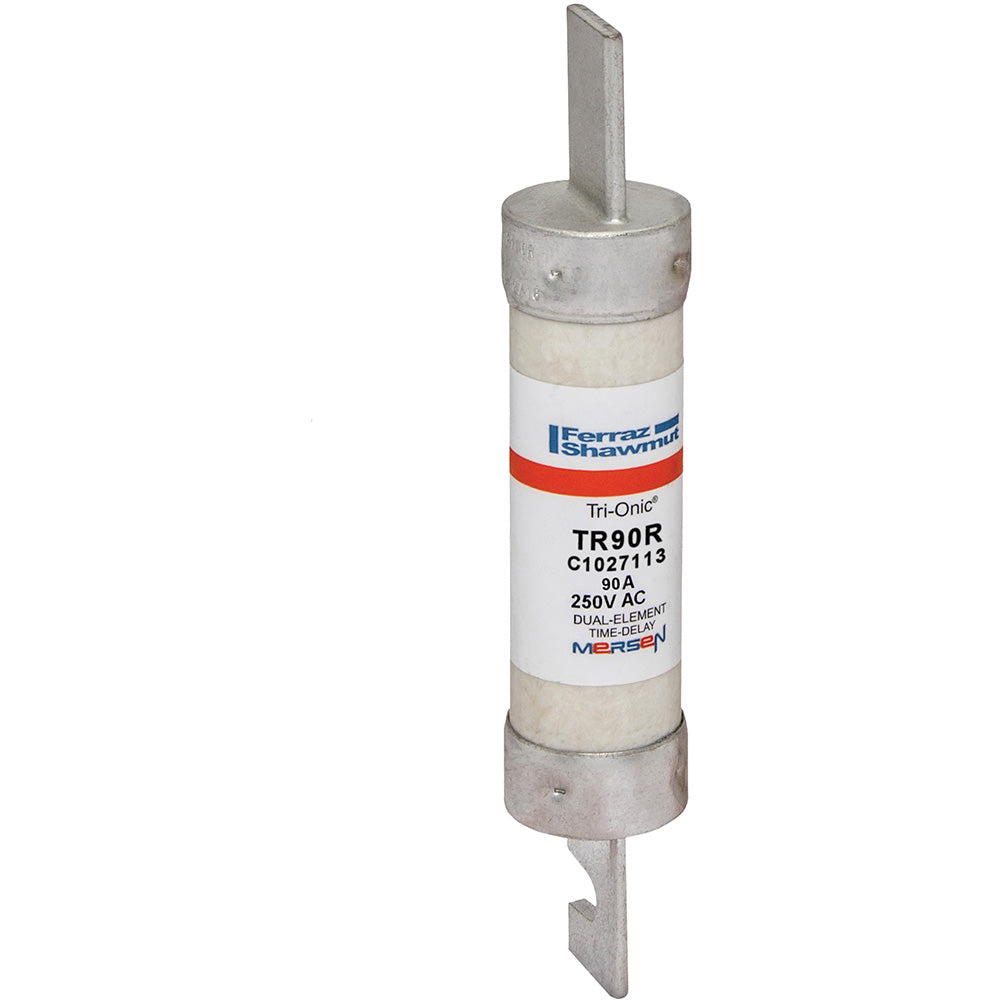

TR90R
TR90R is a Mersen Class RK5 time-delay fuse rated for 90 amps and 250 volts AC/DC, designed for reliable circuit protection.This fuse features a current-limiting design with time-delay characteristics ideal for motor start-ups and transformer inrush currents. It has a blade terminal type and clip mounting for easy installation. The TR90R fuse offers a 200kA interrupt rating at 250 volts AC and is UL 248-12 and CSA certified, ensuring compliance with industry safety standards.
- Amperage: 90A
- Voltage: 250 VAC / 250 VDC
- Fuse Class: RK5
- Time-Delay characteristic
- Current-Limiting design
- Interrupt Rating: 200kA AC
- Terminal Type: Blade
- Mounting Type: Clip
- Certifications: UL 248-12, CSA C22.2
- Length: approx. 5-7/8 inches
- Diameter: approx. 1-1/16 inches
Specifications
- Part Number: TR90R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 90
- AIC rating : 200kA@250V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748005
- GTIN : 00782001748005
- Weight : 25
