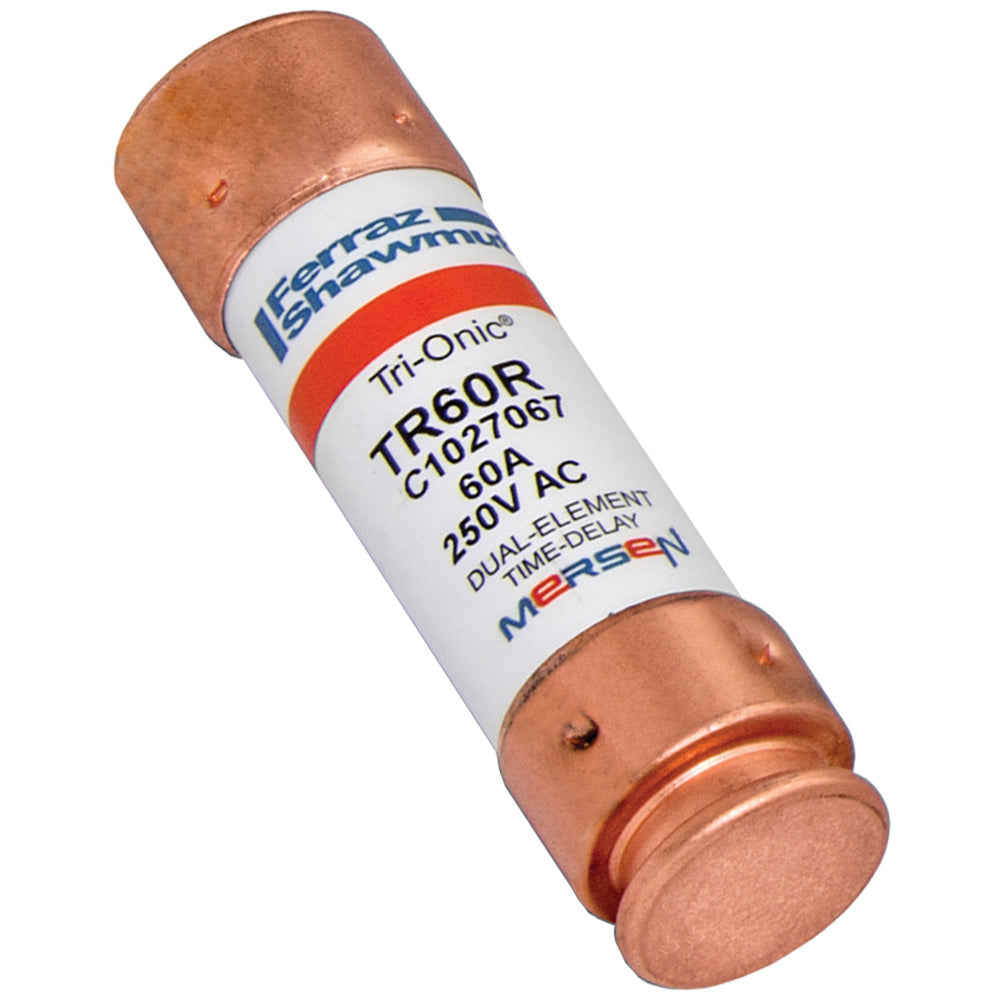

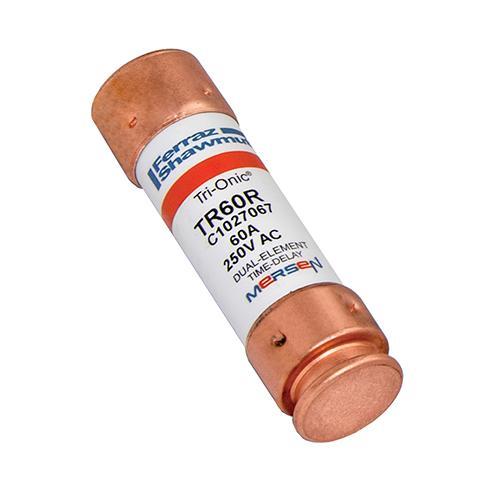

TR60R - Mersen 60A 250V Class RK5 Time-Delay Tri-Onic Fuse

TR60R

TR60R is a Mersen Class RK5 time-delay fuse rated for 60 amps and 250 volts AC/DC, designed for reliable motor and transformer protection.This Tri-Onic fuse features a time-delay characteristic to handle harmless starting and inrush currents safely. It has a rejection-style design to prevent replacement errors and a fiberglass body for durability in industrial environments. The fuse offers a 200kA interrupt rating at 250 volts AC, is UL listed to standard 248-12, and CSA certified for safety and performance.

Key Specifications
• Amperage: 60 Amps
• Voltage Rating: 250 Volts AC/DC
• Fuse Class: RK5
• Time-Delay Characteristic
• Interrupt Rating: 200kA AC
• Mounting Type: Clip
• Body Material: Fiberglass
• UL Listed (UL 248-12)
• CSA Certified (C22.2 No. 248.12)
• Tri-Onic Series
• Ferrule Type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TR60R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Tri-Onic
• Type : TR
• Voltage : 250
• Amperage : 60
• AIC rating : 200kA@250V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782001747947
• GTIN : 00782001747947
• Dimensions : 13/16" diameter × 3" length — that's 0.81" × 3" (about 20.6 mm × 76.2 mm)
• Weight : 0.135 lb
