Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TR600R

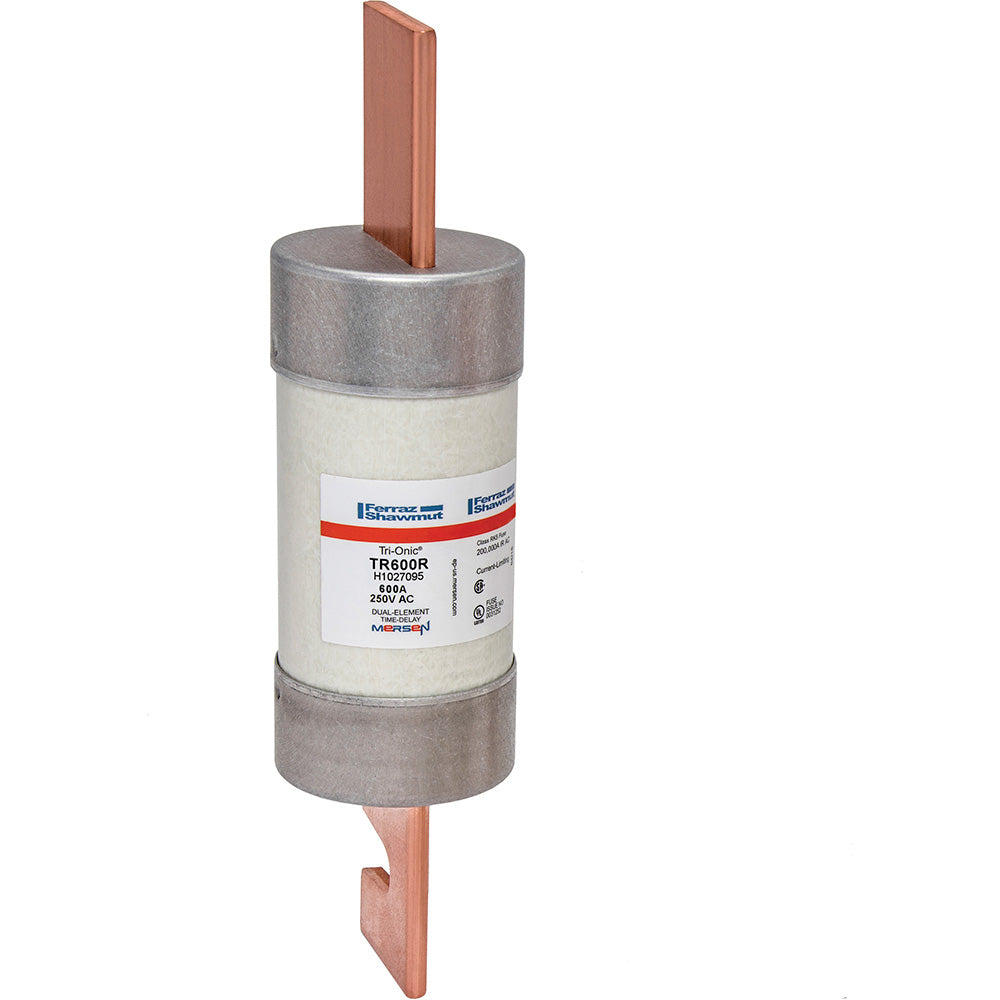

TR600R is a Mersen 600 Amp, 250 Volt Class RK5 time delay fuse designed for reliable overcurrent protection.This Tri-Onic TR series fuse features a fiberglass body and blade mounting for easy installation. It provides time-delay characteristics to safely handle motor starting and transformer inrush currents. Rated for 600 amps with a 250 VAC and 160 VDC voltage rating, it has a high interrupting rating of 200kA AC and 20kA DC. The fuse is UL 248-12 and CSA certified, ensuring compliance with industry safety standards. Its rejection-style design prevents replacement errors, and the metal-embossed label ensures traceability.
- Key Specifications
- Amperage: 600A
- Voltage: 250 VAC / 160 VDC
- Class: RK5
- Time Delay (Slow Blow) characteristic
- Interrupting Rating: 200kA AC / 20kA DC
- Mounting Type: Blade (Clip)
- Body Material: Fiberglass
- Dimensions: 2-9/16 inch diameter x 10-3/8 inch length
- Certifications: UL 248-12, CSA C22.2
- Series: TR (Tri-Onic)
- Rejection style design for safe replacement
- Part Number: TR600R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 600
- AIC rating : 200kA@250V
- Diameter : 2.56
- Class Rating : RK5
- Barrels : 1
- UPC : 782001748203
- GTIN : 00782001748203
- Weight : 2
