Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

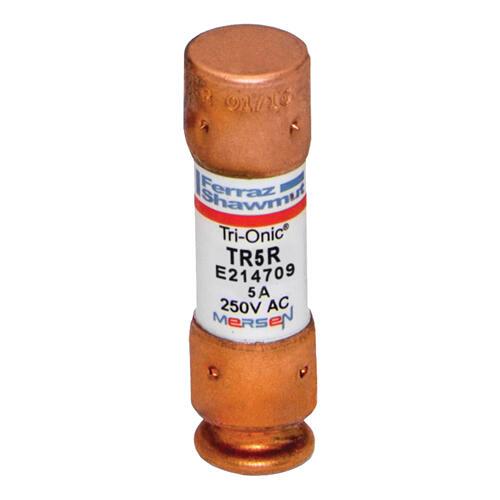

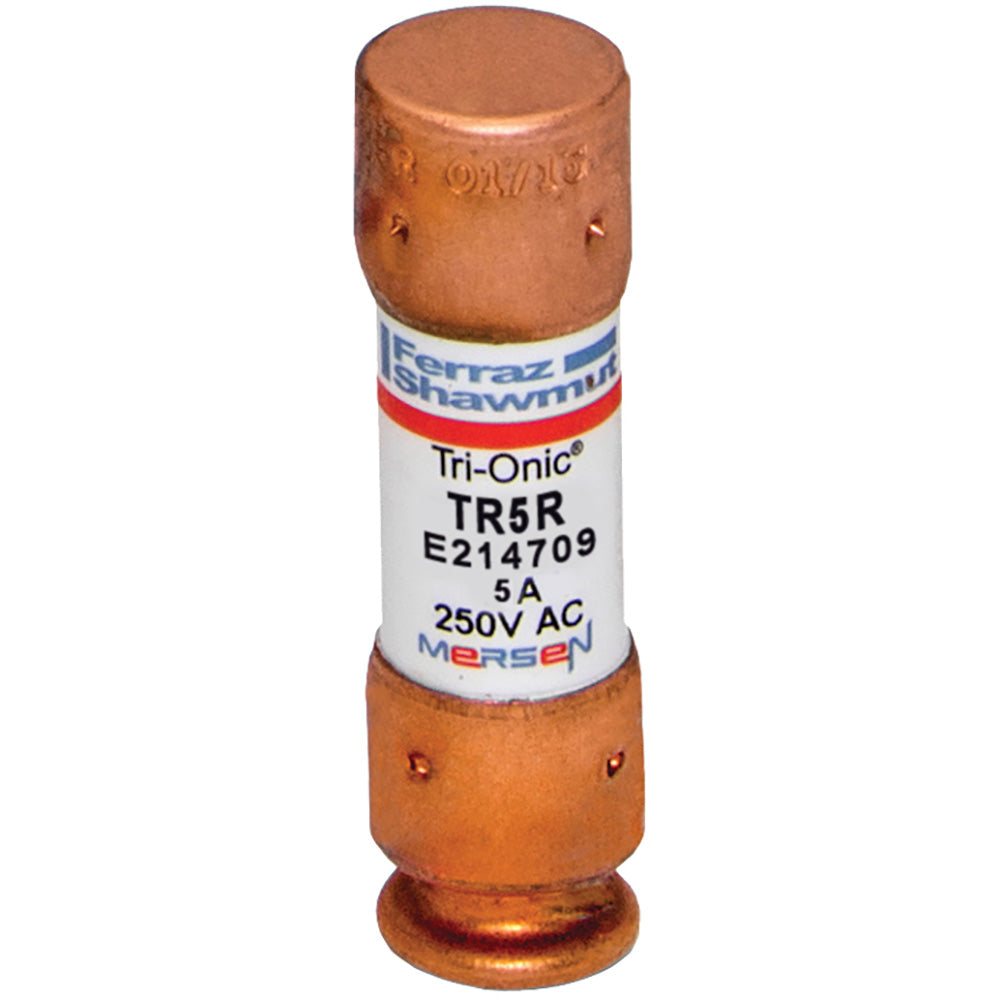

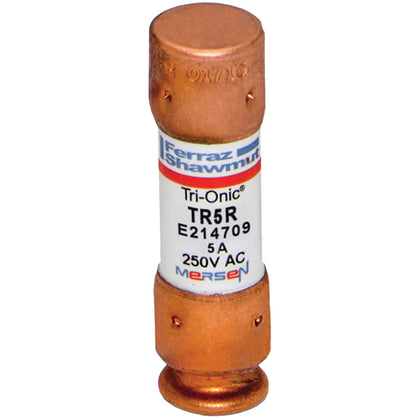

TR5R
TR5R is a 5 amp, 250 volt Class RK5 time delay fuse from Mersen designed for reliable current limiting protection.This fuse features a time-delay characteristic suitable for motor start-ups and transformer inrush currents. It is rated for 250 VAC and 160 VDC with a 200kA interrupt rating AC and is UL listed to standard 248-12 and CSA certified. The fuse has a 9/16 inch diameter and 2 inch length, with a rejection-style design to prevent replacement errors and a fiberglass body for durability in industrial environments.
- Key Specifications
- Amperage: 5 Amp
- Voltage: 250 VAC, 160 VDC
- Fuse Class: RK5
- Time-Delay Type
- Interrupt Rating: 200kA AC
- Dimensions: 9/16 inch diameter, 2 inch length
- Mounting Type: Cartridge
- Certifications: UL 248-12, CSA C22.2
- Rejection-style design for error prevention
- Fiberglass body for industrial durability
Specifications
- Part Number: TR5R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 5
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001747732
- GTIN : 00782001747732
- Weight : 25
