Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TR500R

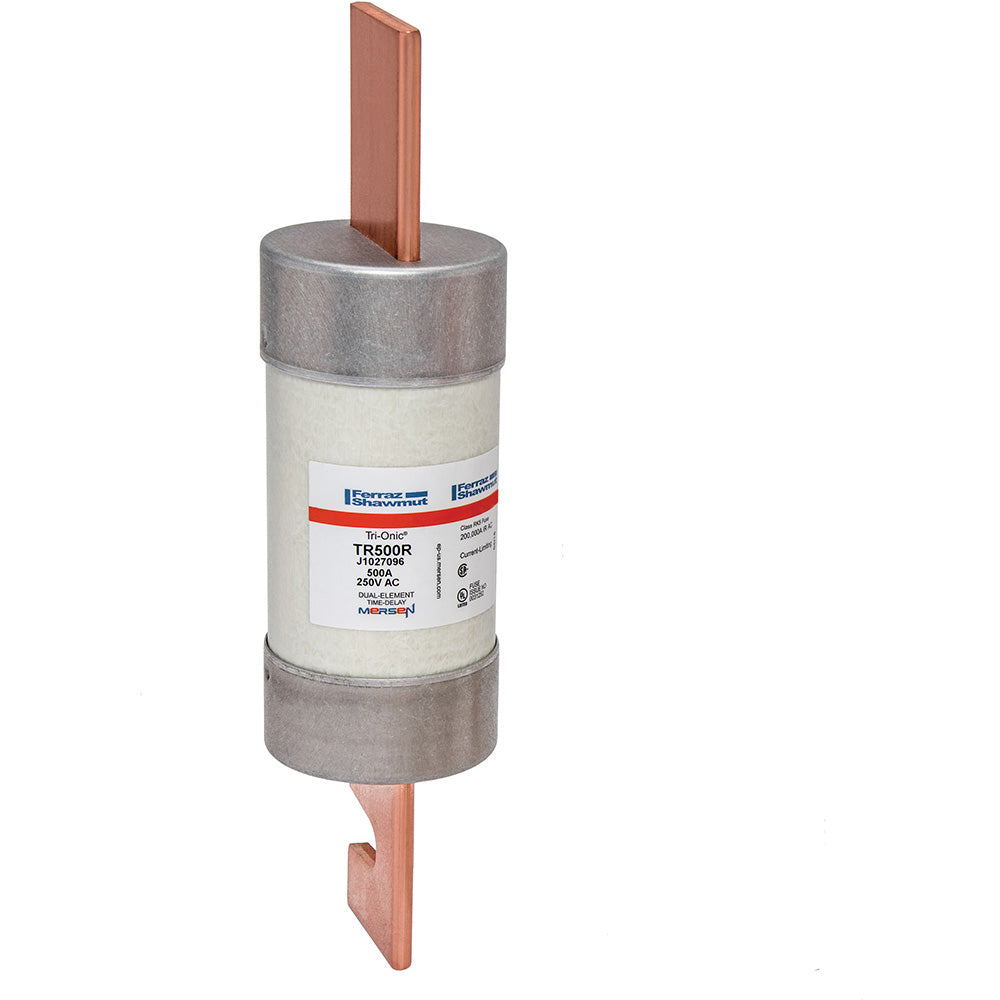

TR500R is a Mersen Class RK5 time-delay fuse rated for 500 amps at 250VAC and 160VDC with a blade-style connection.This fuse features a current-limiting design with a 200kA interrupt rating at AC and 20kA at DC, suitable for motor circuits, feeders, and general-purpose equipment. It has a fiberglass body for durability and a rejection-style design to prevent replacement errors. The fuse is UL listed to standard 248-12 and CSA certified.
- Key Specifications
- Amperage: 500A
- Voltage: 250VAC / 160VDC
- Interrupt Rating: 200kA AC / 20kA DC
- Fuse Class: RK5
- Time-Delay Type
- Connection Type: Blade
- Mounting Type: Clip
- Body Material: Fiberglass
- Certifications: UL 248-12, CSA C22.2
- Dimensions: Approx. 10-3/8 inch length, 2-9/16 inch diameter
Specifications
- Part Number: TR500R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 500
- AIC rating : 200kA@250V
- Diameter : 2.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748197
- GTIN : 00782001748197
- Weight : 1
