Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TR4R

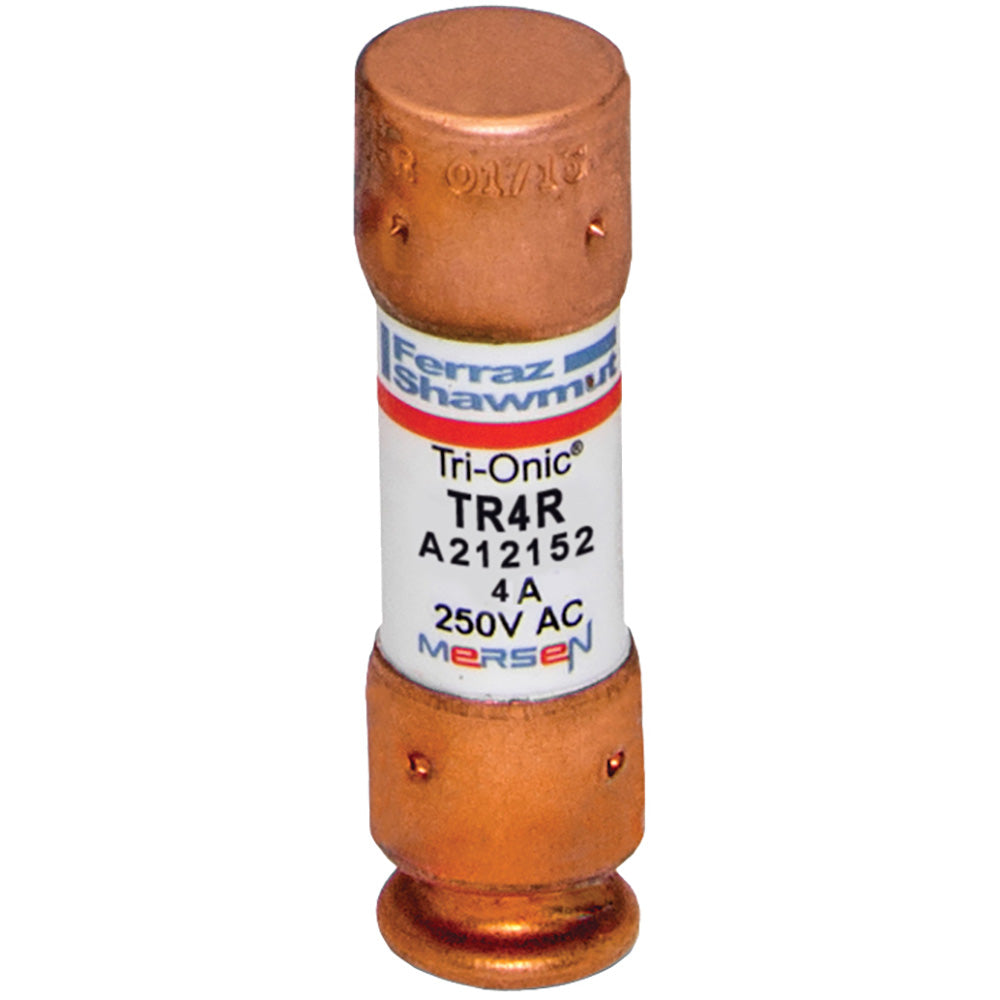

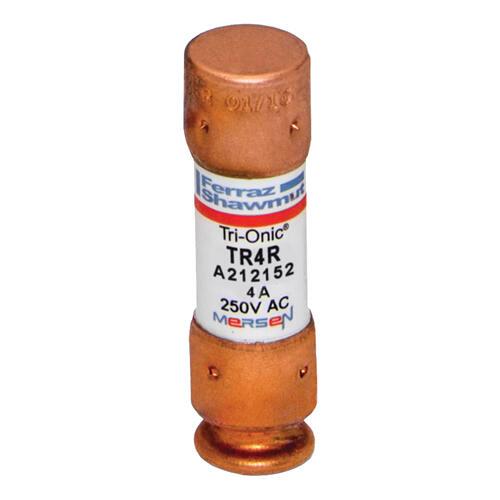

TR4R is a Mersen Class RK5 time delay fuse designed for reliable current limiting protection in industrial applications.This 4 amp fuse features a 250 VAC and 160 VDC voltage rating with a 200kA interrupting rating at AC and 20kA at DC. It has a fiberglass tube body with a ferrule terminal and a rejection style design to prevent replacement errors. The Tri-Onic time delay characteristic safely handles motor starting and transformer inrush currents. Certified to UL 248-12 and CSA C22.2 standards, it measures 9/16 inch diameter by 2 inches length.
- Amperage: 4 Amp
- Voltage Rating: 250 VAC / 160 VDC
- Interrupting Rating: 200kA AC / 20kA DC
- Fuse Class: RK5
- Time Delay: Tri-Onic
- Mounting Type: Ferrule Terminal
- Body Material: Fiberglass Tube
- Dimensions: 9/16 inch diameter x 2 inch length
- Rejection Style Design
- Certifications: UL 248-12, CSA C22.2
- Current Limiting Fuse
Specifications
- Part Number: TR4R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 4
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001747718
- GTIN : 00782001747718
- Weight : 0.05
