Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

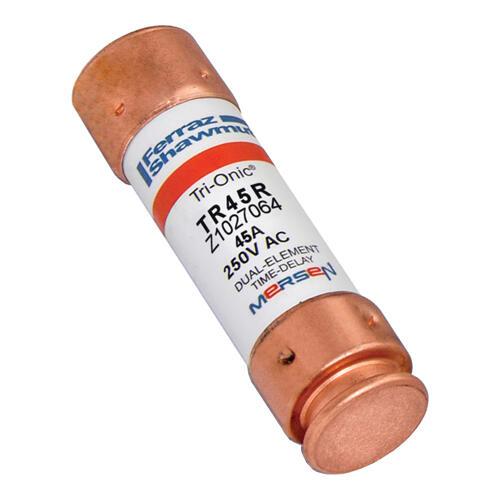

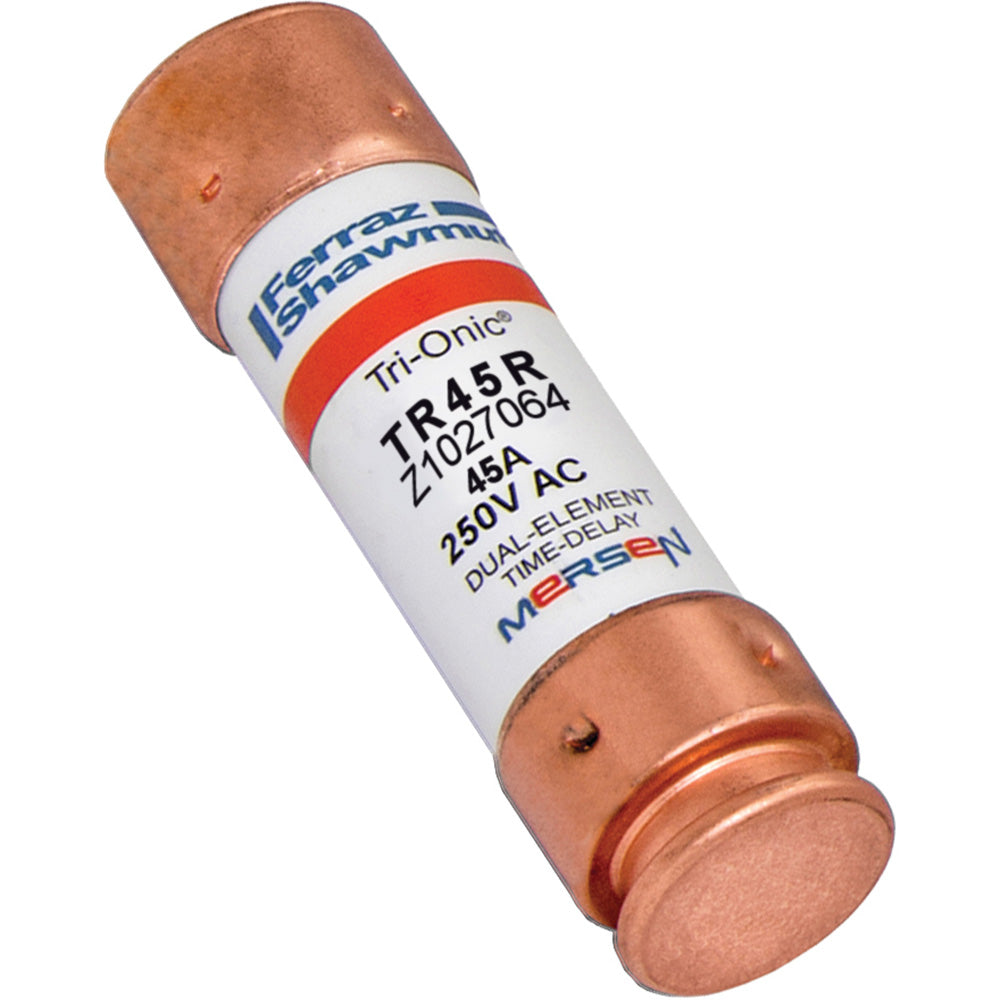

TR45R
TR45R is a 45 amp, 250VAC/VDC Class RK5 time delay current limiting fuse from Mersen designed for low voltage applications.This Mersen Tri-Onic® TR-R series fuse features a time delay dual element design with current limiting capability. It has a cylindrical polyester body measuring 13/16 inch diameter by 3 inches length, ferrule terminals, and clip mounting. The fuse is rated for 45 amps and 250 volts AC/DC with an interrupt rating of 200kA at 250VAC and 20kA at 160VDC. It is suitable for motor circuits, mains, feeders, branch circuits, transformers, service entrance equipment, and general-purpose equipment. The fuse is RoHS compliant and UL 248-12 and CSA certified.
- Amperage: 45 A
- Voltage: 250 VAC/VDC
- Class: RK5
- Fuse Type: Time Delay, Current Limiting
- Interrupt Rating: 200 kA AC, 20 kA DC
- Mounting: Clip Mounting
- Connection: Ferrule Terminal
- Body Material: Polyester
- Body Dimensions: 13/16 in Dia x 3 in Length
- Series: TR-R
- Certifications: UL 248-12, CSA C22.2 No. 248.12, RoHS Compliant
Specifications
- Part Number: TR45R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 45
- AIC rating : 200kA@250V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001747923
- GTIN : 00782001747923
- Weight : 5.19
