Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TR400RID

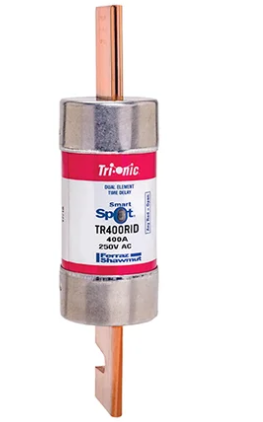

TR400RID is a 400 amp, 250 volt Class RK5 time delay fuse from Ferraz Shawmut's TR-R series designed for reliable circuit protection.This fuse features a time delay characteristic suitable for motor and transformer protection, with a 200 kA interrupt rating. It has a clip mounting type and a SmartSpot indication system for easy status verification. The fuse body is made of polyester, measuring 8 5/8 inches in length and 2 1/16 inches in diameter, compliant with UL 248-12 and CSA C22.2 standards.
- Key Specifications
- Current Rating: 400 Amps
- Voltage Rating: 250 VAC / 160 VDC
- Fuse Class: RK5
- Speed Type: Time Delay
- Interrupt Rating: 200 kA
- Mounting Type: Clip
- Body Material: Polyester
- Dimensions: 8 5/8" L x 2 1/16" Diameter
- Indication System: SmartSpot
- Series: TR-R
- Certifications: UL 248-12, CSA C22.2
- RoHS Compliant: Yes
Specifications
- Part Number: TR400RID
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 400
- AIC rating : 200kA@250V
- Diameter : 2.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001415440
- GTIN : 00782001415440
- Weight : 1
