Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TR30R

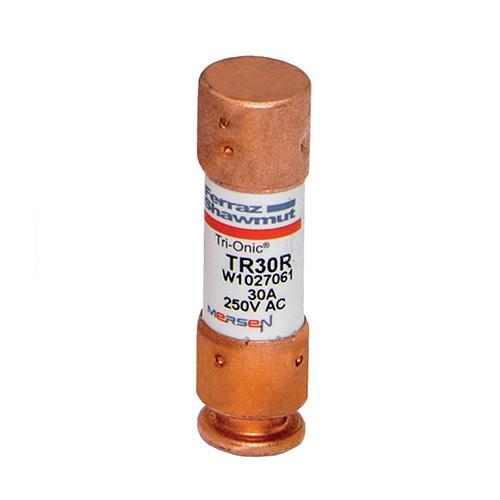

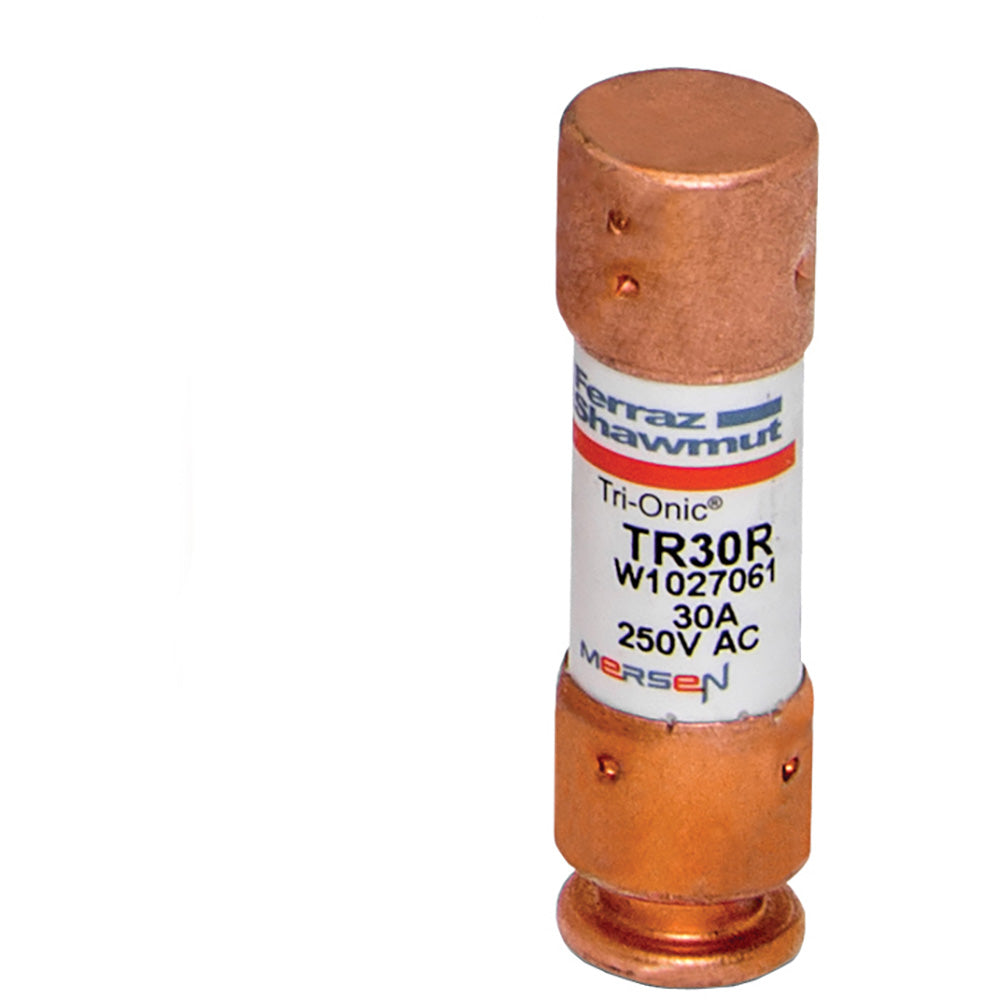

TR30R is a Mersen Tri-Onic Class RK5 time delay fuse designed for reliable circuit protection in industrial and commercial applications. This 30A, 250VAC/160VDC fuse features a ferrule mounting style and rejection design to prevent incorrect replacement. Engineered for superior performance, it safely handles motor inrush currents and offers high interrupting ratings for enhanced safety. The TR30R fuse is constructed with a fiberglass body for durability and dimensional stability, and includes a metal-embossed date and catalog number for traceability. Its time-delay characteristic allows for safe handling of harmless starting currents, making it ideal for motor circuits, feeders, transformers, and general-purpose equipment.
- Part Number: TR30R
- Manufacturer: Mersen
- Series: TR-R
- Class: RK5
- Amperage: 30A
- Voltage: 250VAC, 160VDC
- Interrupting Rating: 200kA AC, 20kA DC
- Mounting Type: Ferrule
- Speed/Characteristic: Time Delay
- Body Material: Fiberglass
- Certifications: UL Listed, CSA Certified
- Application: Motor circuits, feeders, transformers, mains, branch circuits
Specifications
- Part Number: TR30R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 30
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001747862
- GTIN : 00782001747862
- Weight : 25
