Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TR300R

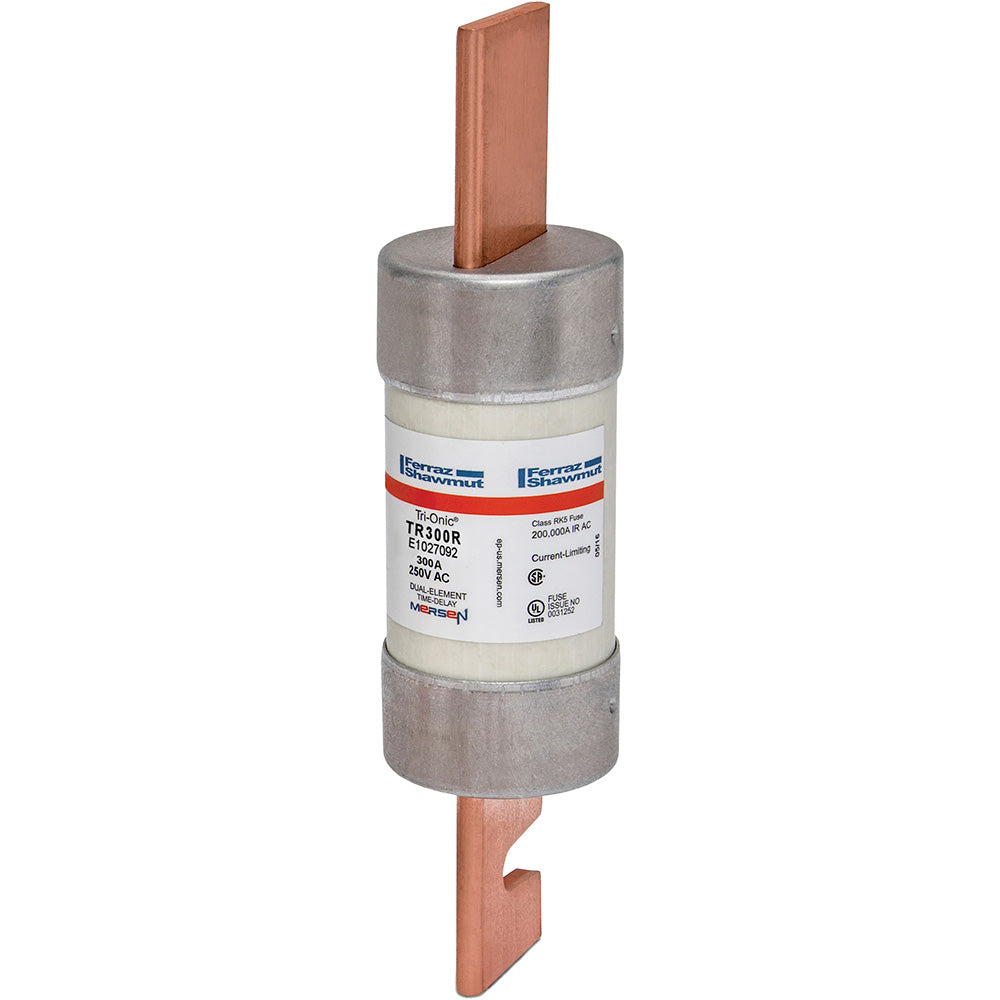

TR300R is a 300 Amp, 250 Volt Class RK5 time delay fuse designed for industrial and general-purpose electrical protection.This Mersen fuse features a dual element Tri-Onic® time delay design with current limiting capabilities, suitable for AC and DC applications. It has a rejection-style design to prevent replacement errors and a high interrupting rating of 200,000 AIC at 600VAC and 20,000 AIC DC. The fuse body is constructed for durability and stability in harsh environments.
- Key Specifications
- Amperage: 300 Amps
- Voltage: 250 Volts AC/DC
- Fuse Class: RK5
- Time Delay: Dual Element Tri-Onic®
- Interrupting Rating: 200,000 AIC AC, 20,000 AIC DC
- Mounting Type: Clip
- Poles: 1
- Current Limiting: Yes
- Rejection Style Design: Yes
- Body Material: PolyTube
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: TR300R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 300
- AIC rating : 200kA@250V
- Diameter : 2.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748135
- GTIN : 00782001748135
- Weight : 1
