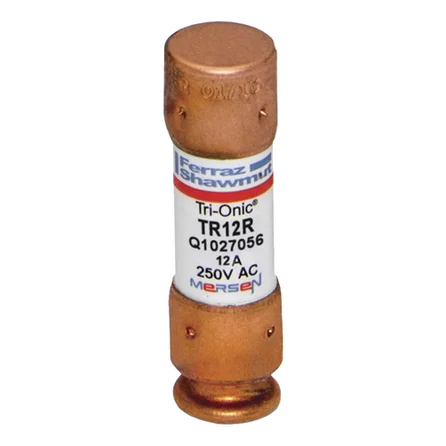

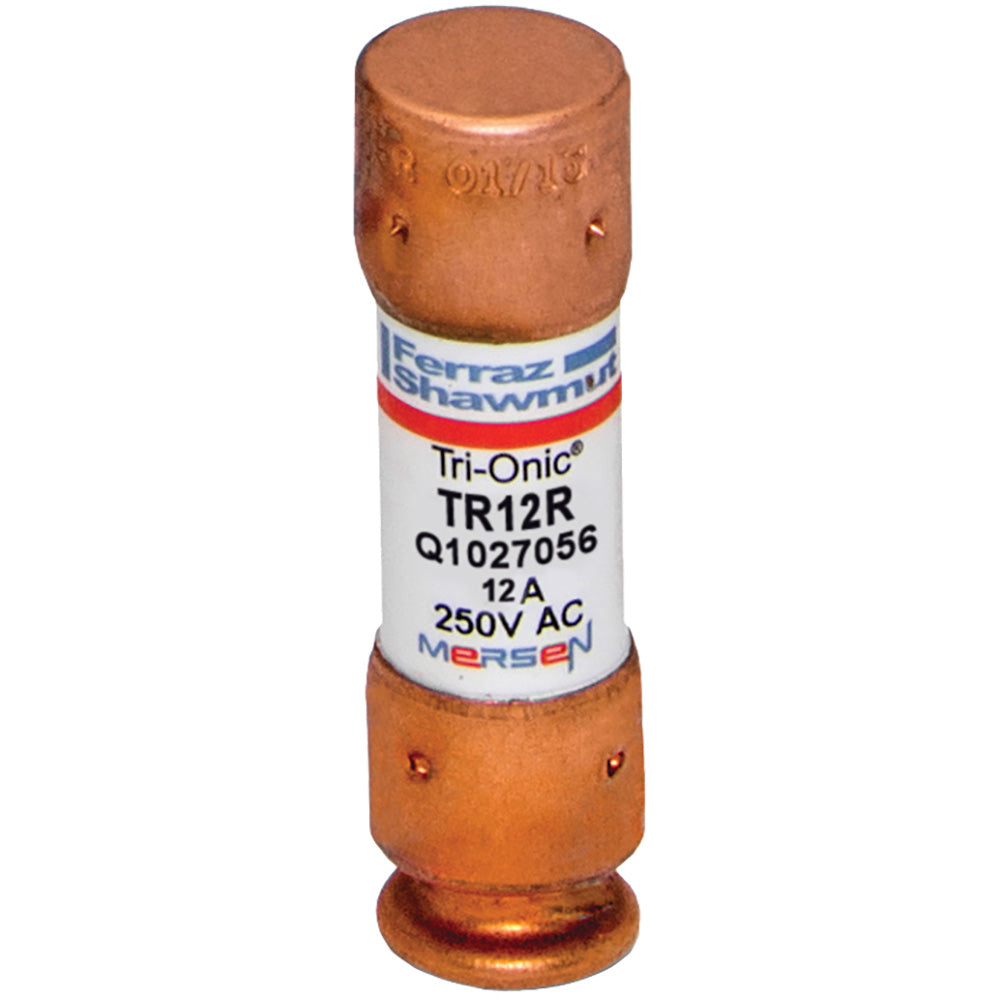

TR12R - Mersen 12A 250V AC/160V DC RK5 Time Delay Fuse, Current Limiting, Clip Mount

TR12R

TR12R is a Mersen 12 Amp, 250 Volt AC / 160 Volt DC RK5 class time delay fuse designed for motor and transformer protection.This TR12R fuse features a cylindrical 9/16 inch diameter by 2 inch length body with dual element current limiting technology. It has a clip mounting type and ferrule terminals. The fuse is rejection style to prevent replacement errors and has a high interrupt rating of 200kA AC and 20kA DC. It is UL listed and CSA certified for industrial applications.

Key Specifications
• Amperage: 12 A
• Voltage Rating: 250 V AC / 160 V DC
• Interrupt Rating: 200 kA AC / 20 kA DC
• Class: RK5
• Body Size: 9/16 in diameter x 2 in length
• Mounting Type: Clip
• Terminal Type: Ferrule
• Fuse Type: Time Delay, Current Limiting
• Series: TR-R
• Element: Dual
• Rejection Style: Yes
• Certifications: UL 248-12, CSA C22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TR12R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Tri-Onic
• Type : TR
• Voltage : 250
• Amperage : 12
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782001747817
• GTIN : 00782001747817
• Weight : 0.05
