Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TR110R

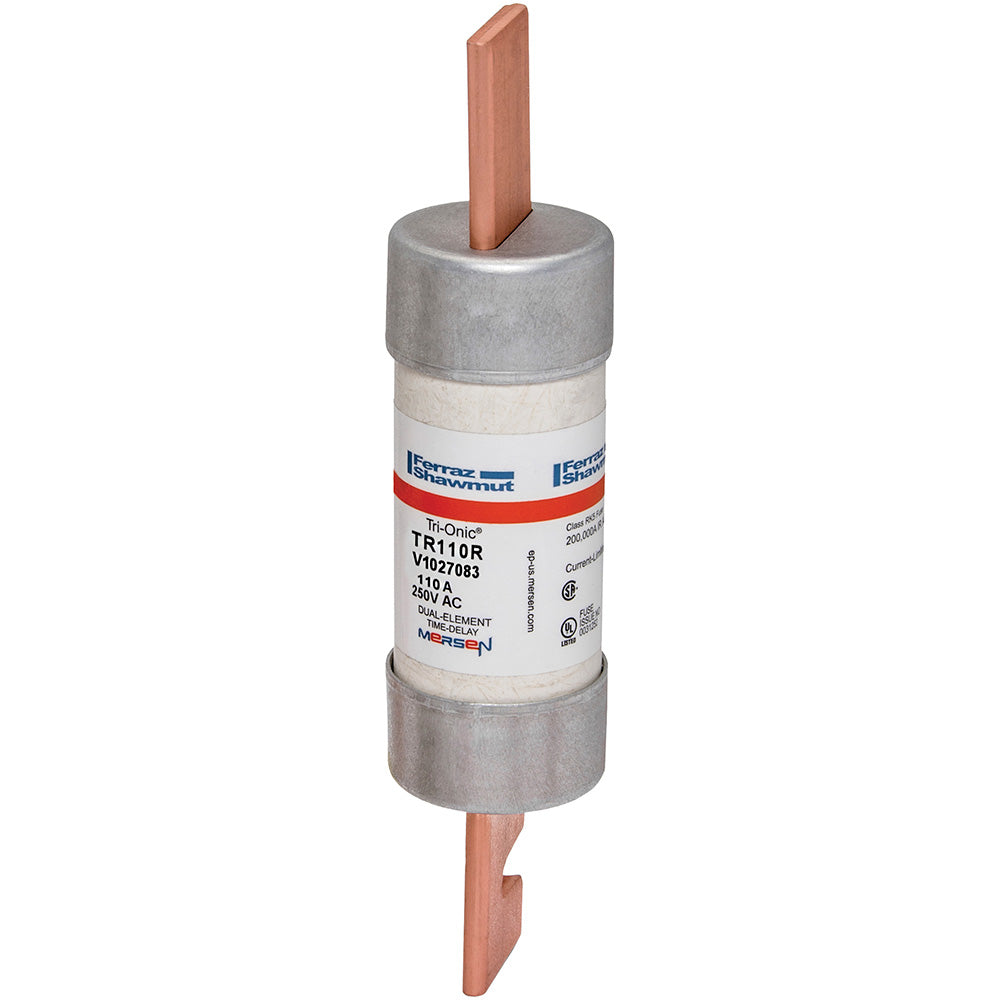

TR110R is a Mersen Class RK5 time delay fuse rated for 110 amps and 250 volts AC, designed for reliable circuit protection.TR110R features a time-delay, current-limiting design with a 200kA interrupt rating at 250VAC. It has a clip mounting type and a fiberglass body for durability in industrial environments. This fuse is UL listed to standard 248-12 and CSA certified, suitable for motor circuits, feeders, and general-purpose equipment.
- Key Specifications
- Amperage: 110A
- Voltage: 250VAC / 250VDC
- Fuse Class: RK5
- Time Delay: Yes
- Interrupt Rating: 200kA AC
- Mounting Type: Clip
- Body Material: Fiberglass
- Approvals: UL 248-12, CSA C22.2 No. 248.12
- Length: 7-1/8 inches
- Diameter: 1-9/16 inches
- Current Limiting: Yes
Specifications
- Part Number: TR110R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 110
- AIC rating : 200kA@250V
- Diameter : 1.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748043
- GTIN : 00782001748043
- Weight : 0.6
