Description
TR1-6/10

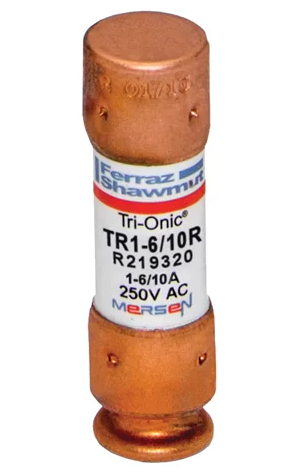

TR1-6/10R is a Mersen Class RK5 time-delay, current-limiting fuse designed for reliable circuit protection in demanding applications.
This rejection-style fuse features a 1.6A ampere rating, 250V AC/DC voltage rating, and a high 200kA AC interrupting capacity. Its time-delay characteristic allows for safe handling of motor startups and transformer inrush currents, while the current-limiting design provides enhanced protection against short circuits. The fuse is UL Listed to Standard 248-12 and CSA Certified to C22.2 No. 248.12, ensuring compliance with North American safety standards. The cylindrical, non-indicating body measures 2" x 9/16" and is constructed for use with rejection-style fuse blocks to prevent installation errors.
Key Specifications
- Part Number: TR1-6/10R
- Manufacturer: Mersen
- Amperage: 1.6A
- Voltage: 250V AC/DC
- Poles: Single
- Mounting Type: Rejection-style fuse block
- Interrupt Rating: 200kA AC, 20kA DC
- Series/Frame: TR-R Series
- Trip Unit: Time-delay, current-limiting
- Certifications: UL 248-12, CSA C22.2 No. 248.12
- Body Size: 2" x 9/16" (51mm x 14mm)
- Body Material: Fiberglass with silica filler
- Visual Indication: Non-indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TR1-6/10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage
Product Data
- Weight : 5.19
