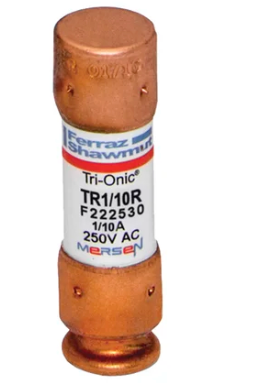

TR1/10R - Eaton (Mersen) 0.1A 250V AC/DC Class RK5 Time Delay Fuse

TR1/10R

TR1/10R is a Class RK5 time delay fuse rated for 0.1 amps and 250 volts AC/DC, designed for reliable circuit protection.TR1/10R features dual element Tri-Onic technology for time delay to accommodate motor start-ups and transformer inrush currents, current limiting to reduce peak let-thru current, and a rejection style design to prevent replacement errors. It is AC and DC rated with a high interrupting rating of 200,000 AIC at 600VAC and 20,000 AIC DC. The fuse has a cylindrical body measuring 9/16" x 2" and complies with UL 248-12 and CSA C22.2 standards.

Key Specifications
• Amperage: 0.1 Amp
• Voltage Rating: 250V AC / 250V DC
• Class: RK5
• Time Delay: Dual Element Tri-Onic®
• Interrupting Rating: 200,000 AIC AC, 20,000 AIC DC
• Physical Size: 9/16" x 2" cylindrical body
• Rejection Style Design to prevent replacement errors
• Standards: UL 248-12, CSA C22.2
• Current Limiting
• AC and DC Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TR1/10R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Tri-Onic
• Type : TR
• Voltage : 250
• Amperage : 1
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782001747503
• GTIN : 00782001747503
• Weight : 25
