Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

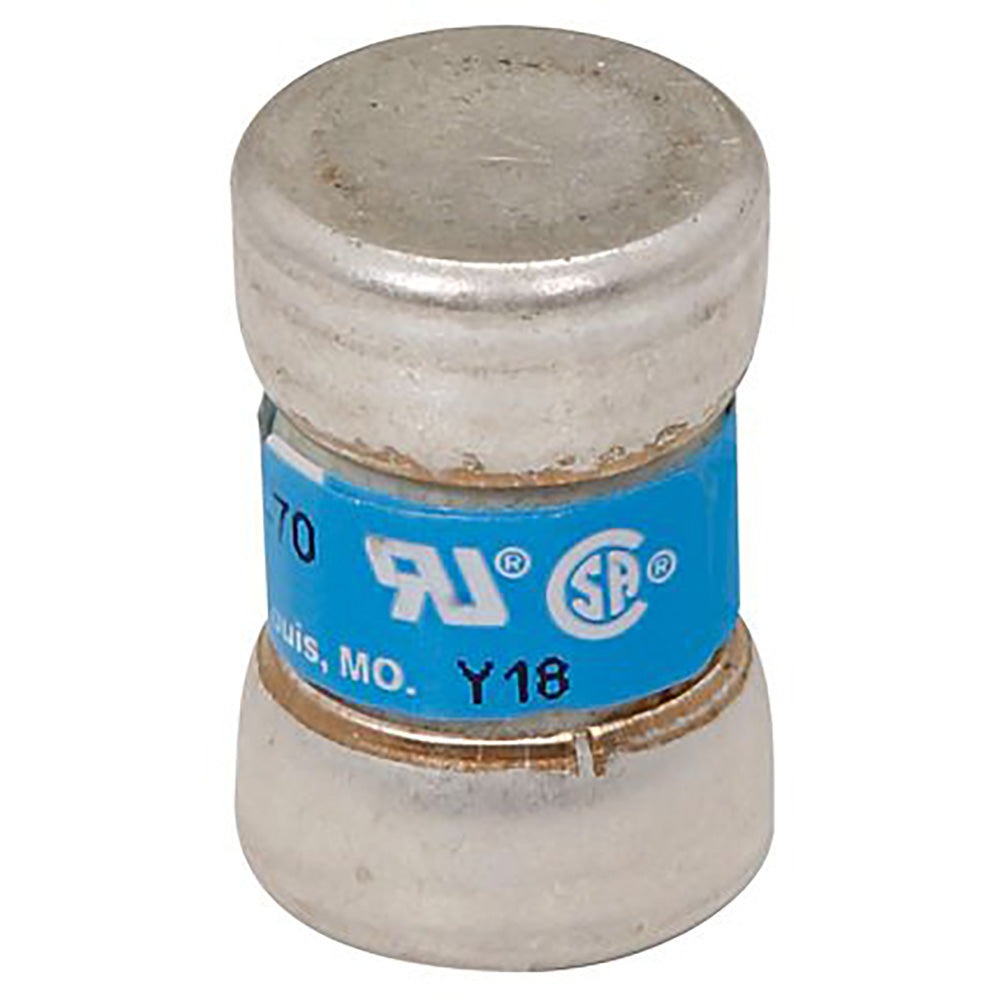

TPS-70
TPS-70 is an Eaton Bussmann series telecommunication fuse designed for DC power distribution applications.TPS-70 features a 70 ampere rating, 170 Vdc voltage rating, and a 100 kA interrupting rating. It is a non-indicating, current-limiting fuse with ferrule end connections and a durable glass melamine tube construction with silver-plated brass ferrules.
- Key Specifications
- Amperage Rating: 70 A
- Voltage Rating: 170 Vdc
- Interrupting Rating: 100 kAIC
- Fuse Type: Current-Limiting, Non-Indicating
- Connection Type: Ferrule End x Ferrule End
- Construction: Glass Melamine Tube
- Ferrules: Silver-Plated Brass
- Compliance: CE Marked, RoHS Compliant
- Physical Size: 0.56 in x 0.87 in
- Series: Eaton Bussmann TPS
Specifications
- Part Number: TPS-70
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Telpower
- Type : TPS
- Voltage : 170
- Amperage : 70
- AIC rating : 100kA@170VDC
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 05171219710
- GTIN : 00051712197106
- Dimensions : 0.56 in x 0.87 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.2
