Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TPS-30

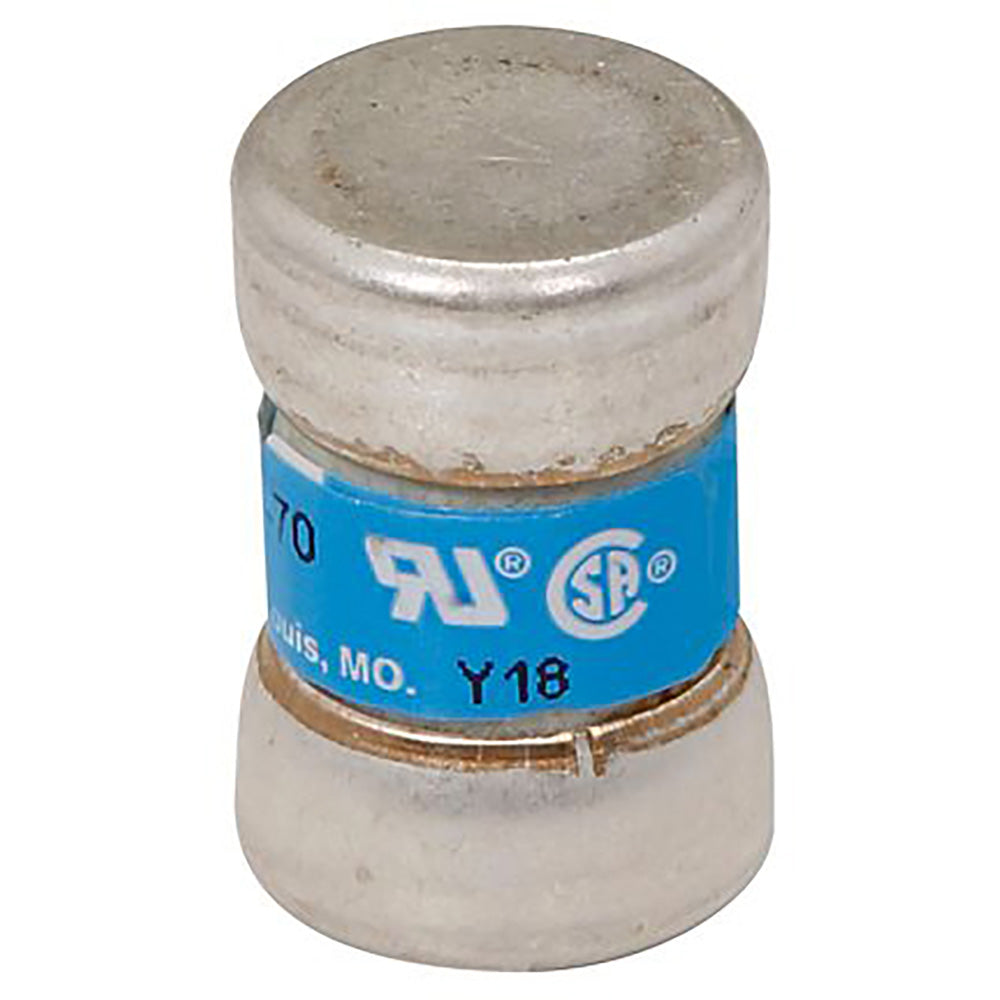

TPS-30 is a non-indicating, current-limiting telecommunication fuse from Eaton Bussmann Series, designed for DC power distribution applications.
This fuse features a 30A amperage rating, 170VDC voltage rating, and a high 100kA interrupting capacity. It is constructed with silver-plated brass ferrules and a durable glass melamine tube, ensuring reliable performance in demanding environments. The TPS-30 is UL recognized and CE marked, meeting essential safety and compliance standards for telecommunications and industrial power systems.
-
Key Specifications
- Part Number: TPS-30
- Manufacturer: Eaton
- Amperage: 30A
- Voltage: 170VDC
- Poles: Single
- Mounting Type: Holder (ferrule end x ferrule end)
- Interrupt Rating: 100,000A (100kAIC)
- Series/Frame: TPS (Telpower)
- Trip Unit: Not applicable (fuse)
- Certifications: UL Recognized (Guide JFHR2, File E56412), CE Marked, RoHS Compliant
- Fuse Type: Fast Blow
- Indicator: Non-indicating
- Dimensions: 0.56" x 0.87" x 0.56"
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TPS-30
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Telpower
- Type : TPS
- Voltage : 170
- Amperage : 30
- AIC rating : 100kA@170VDC
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 05171219704
- GTIN : 00051712197045
- Dimensions : 0.56 in x 0.87 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.2
