Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TMQC22100MM

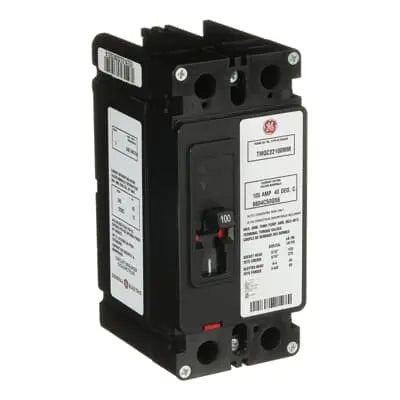

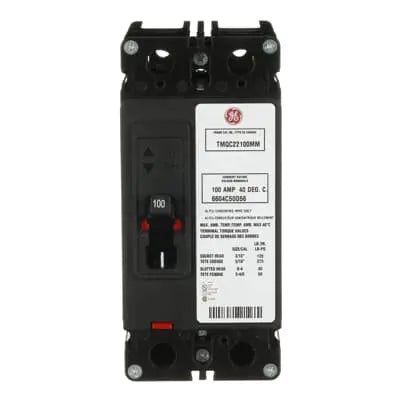

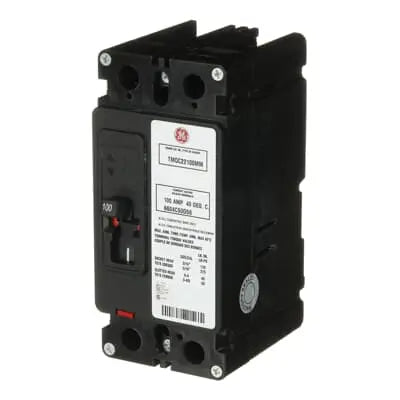

TMQC22100MM is a General Electric 2 pole thermal magnetic circuit breaker rated for 100 amps and 240 volts AC with a TMQC frame type.This circuit breaker features a bolt-on mounting type, thermal magnetic trip unit with long time and instantaneous trip functions, and a very high interrupting capacity of 42kAIC at 240V. It is designed for single-phase applications and includes load side lug terminals. The breaker is non-interchangeable and intended for tenant main use in 200A sockets.
- Amperage: 100A
- Voltage: 240V AC
- Poles: 2
- Frame Type: TMQC
- Mounting Type: Bolt-On
- Interrupt Rating: 42kAIC @ 240V
- Trip Unit: Thermal Magnetic (Long time and instantaneous)
- Phase: Single-phase
- Terminal Type: Load side lug terminals
- Non-interchangeable trip
- Application: Tenant main breaker for 200A sockets
Specifications
- Part Number: TMQC22100MM
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Type : TMQC
- Voltage : 240VAC
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 42kAIC at 240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- Weight : 9
