TMCX6206 - Eaton Explosion-Proof Cable Gland 2 Inch NPT Nickel-Plated Brass

TMCX6206

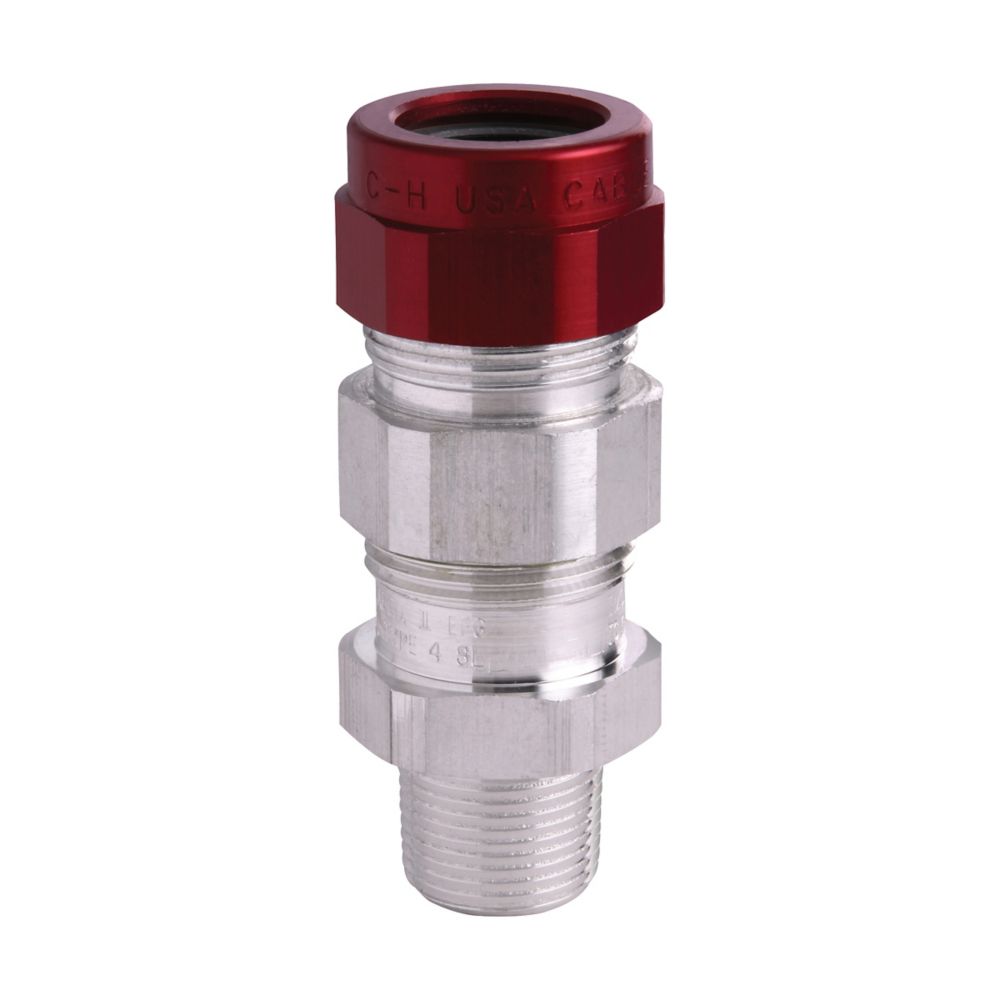

TMCX6206 is an Eaton explosion-proof cable gland designed for armored and metal-clad cables with a 2 inch NPT thread size.This cable gland from Eaton's Crouse-Hinds series features a nickel-plated brass construction suitable for hazardous and classified locations. It supports TECK armored, tray cable, and metal-clad corrugated armored cables with an armor range of 1.57 to 2.06 inches and an outer sheath range of 1.63 to 2.31 inches. The gland provides NEMA 4 protection and complies with NEC/CEC standards for Class I, Division 1, Class II, Division 1, and Class III hazardous ratings.

Key Specifications
• Manufacturer: Eaton
• Part Number: TMCX6206
• Type: Explosion-Proof Cable Gland
• Material: Nickel-Plated Brass
• Thread Size: 2 Inch NPT
• Cable Types: TECK Armored, Tray Cable, Metal-Clad Corrugated Armored
• Armor Range: 1.57 to 2.06 Inches
• Outer Sheath Range: 1.63 to 2.31 Inches
• Protection Rating: NEMA 4
• Certifications: NEC/CEC Class I, Division 1; Class II, Division 1; Class III
• Weight: 7.75 lbs
• Dimensions: 6.31" Length x 3.5" Width x 3.5" Height
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: TMCX6206
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Type : TMCX
• Connection : Male NPT
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Explosion-Proof



Product Data

• UPC : 782274414720
• GTIN : 00782274414720
• Dimensions : 6.31 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 3.1
• Standards : NEC, CEC
• Certification : UL, CUL, CSA
