Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TKMA836Y800

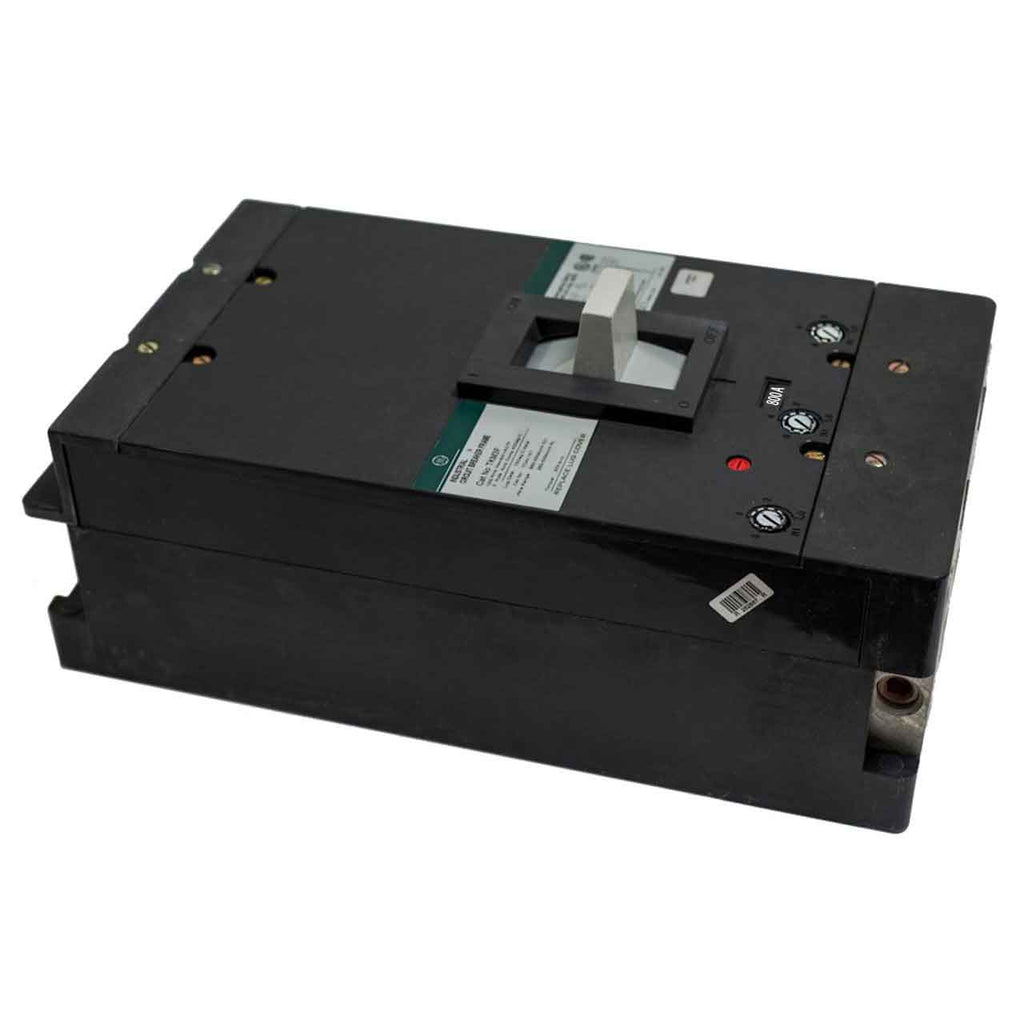

TKMA836Y800 is a General Electric molded case circuit breaker designed for demanding industrial applications. It features a feed-thru connection and is part of the K1200 Line series.This 3 pole circuit breaker is rated for 800 amps and 600 volts AC, with a 30kA interrupting capacity at 480V. It is a non-automatic molded case switch suitable for applications where overcurrent protection is not required. The breaker includes line and load side lug terminals and a TKM frame type.
- Amperage: 800A
- Voltage: 600V AC / 250V DC
- Poles: 3
- Interrupt Rating: 30kA at 480V
- Mounting Type: Feed-Thru
- Series/Frame: K1200 Line, TKM Frame
- Trip Unit: Non-Automatic
- Connection: Line & Load Side Lug Terminals
- Phase: 3 Phase
- Application: Industrial, demanding environments
- Certifications: UL Listed
Specifications
- Part Number: TKMA836Y800
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : K1200 Line
- Type : TKMA
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : NA - No Overcurrent Protection
- Protection : Non-Automatic
Product Data
- UPC : 783164132502
- Weight : 51
