Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TKMA836800

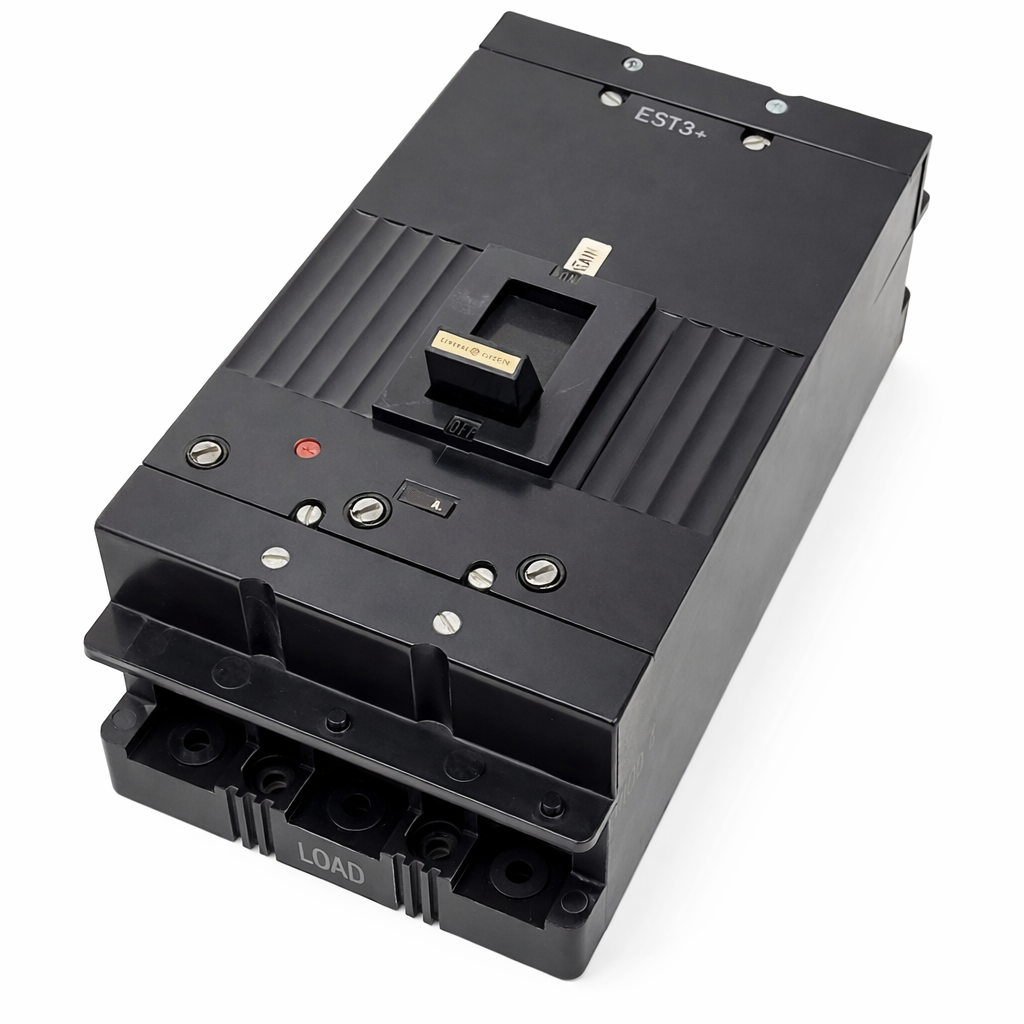

TKMA836800 is a General Electric 3 pole molded case circuit breaker rated for 800 amps and 600 volts AC with a 30kA interrupting rating at 480V.TKMA836800 features a thermal magnetic trip unit within the TK frame series, designed for industrial and commercial electrical protection. It supports bolt-on mounting with load lug terminals and is suitable for 3-phase applications. This breaker complies with industry certifications ensuring reliable and safe operation.
- Amperage: 800A
- Voltage: 600V AC
- Poles: 3
- Interrupt Rating: 30kA at 480V
- Frame/Series: TK (K1200 line)
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Terminal Type: Load Lugs
- Phase: 3 Phase
- Certifications: Industry standard compliant
- Dimensions: Approx. 8 1/4" W x 5 1/2" D x 15 1/2" H
Specifications
- Part Number: TKMA836800
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : K1200 Line
- Type : TKMA
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 00783164053593
- Weight : 44
- Wire Size : 3 AWG to 500 kcmil
