Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TKMA836500

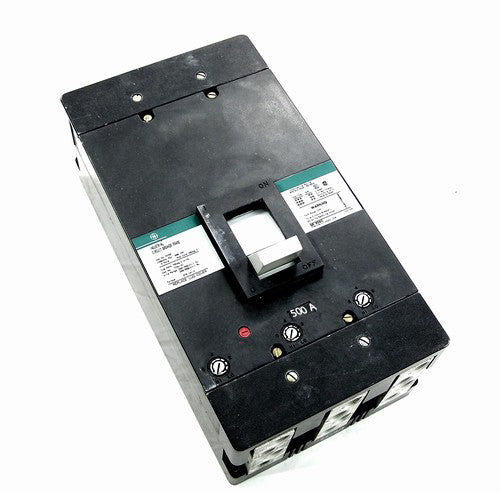

TKMA836500 is a General Electric 3 pole thermal magnetic molded case circuit breaker rated for 500 amps and 600 volts.TKMA836500 provides reliable circuit protection with a 30kA interrupting rating at 480V, featuring long-time and instantaneous trip functions. It includes feed-thru connection type with line and load side lugs, designed for industrial and commercial electrical applications.
- Manufacturer: General Electric
- Series: TKMA
- Amperage: 500A
- Voltage: 600V AC
- Poles: 3
- Interrupting Rating: 30kA @ 480V
- Protection Type: Thermal Magnetic
- Trip Functions: Long-Time and Instantaneous (LI)
- Connection Type: Feed-Thru
- Terminal Connection: Line and Load Side Lug
- Phase: 3
Specifications
- Part Number: TKMA836500
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : K1200 Line
- Type : TKMA
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 44
