Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TK4V3608NGR

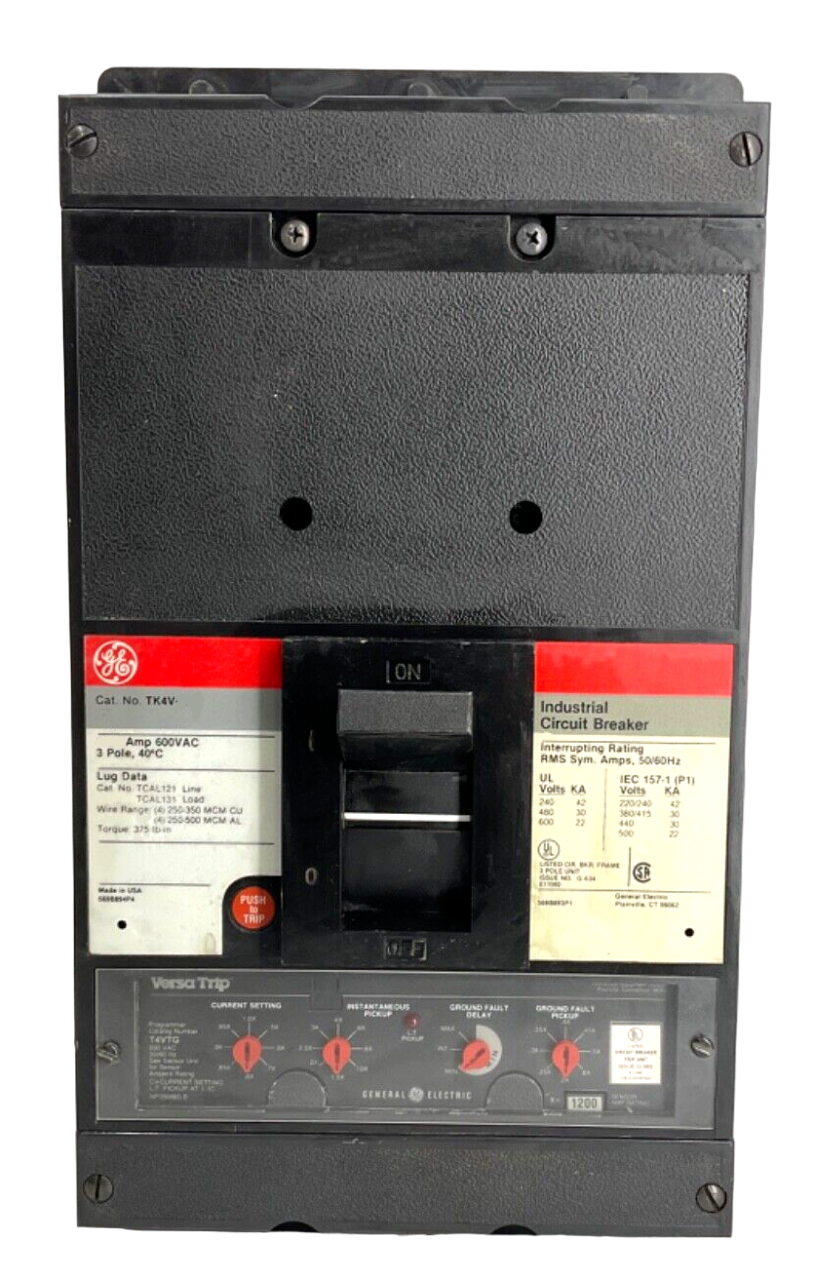

TK4V3608NGR is a General Electric MicroVersaTrip molded case circuit breaker designed for industrial and commercial power distribution applications requiring reliable overcurrent protection and advanced trip functionality. This 800-ampere, 3-pole breaker operates at 600 volts AC and features the MicroVersaTrip 4 programmer with adjustable time-current functions, mechanical fault indicators, and zone-selective interlock capability for enhanced system coordination. The breaker incorporates fixed ratio current sensors with a 50-100 percent adjustment range and supports multiple time-delay bands for precise protection tuning.
- Amperage Rating: 800A
- Voltage Rating: 600VAC
- Number of Poles: 3
- Series: TK4V MicroVersaTrip
- Trip Unit: 4-Function Micro-VersaTrip Programmer
- Current Adjustment Range: 50-100 percent
- UL Listed: File E-11592
- UL489 Listed
- Adjustable Time-Current Functions: Up to 9
- Mechanical Fault Indicators: Local and Remote
- Zone-Selective Interlock Capability
Specifications
- Part Number: TK4V3608NGR
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MicroVersaTrip
- Type : TK4V
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- Weight : 50
