Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TK4V3606N

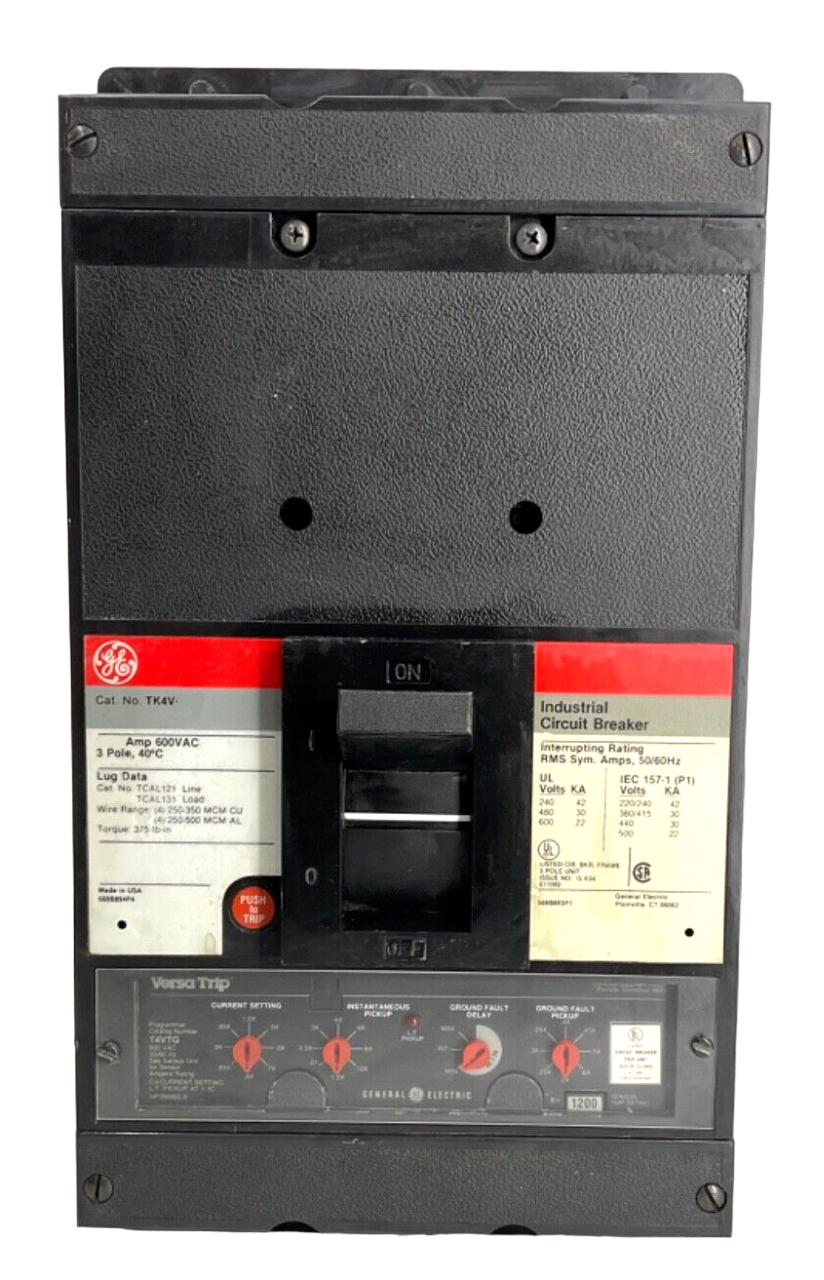

TK4V3606N is a General Electric 3 pole, 600 amp, 600 volt molded case circuit breaker designed for industrial and commercial power distribution applications. This breaker features the MicroVersaTrip series trip unit for reliable protection and adjustable trip settings. The TK4V3606N is part of the Model 6 frame series and is built for bolt-on mounting, making it suitable for use in panelboards and switchgear. It offers advanced trip unit features including multiple time-delay bands and accurate trip adjustment for improved system coordination. The breaker is designed for high interrupting capacity and is compatible with a range of accessories for enhanced signaling and monitoring.
- Manufacturer: General Electric
- Part Number: TK4V3606N
- Type: Molded Case Circuit Breaker
- Series/Frame: MicroVersaTrip, Model 6
- Poles: 3
- Rated Voltage: 600V
- Rated Current: 600A
- Mounting Type: Bolt-On
- Interrupt Rating: 30kA @ 480V
- Trip Unit: MicroVersaTrip
- Adjustable Trip Settings
- UL Listed
Specifications
- Part Number: TK4V3606N
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MicroVersaTrip
- Type : TK4V
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- Weight : 50
