TJK636500WL - General Electric 500A 600V 3P Molded Case Circuit Breaker, TJK6 Frame, Thermal Magnetic Trip, Field Installable Trips, 30kAIC@480V, Feed-Thru, Line & Load Lugs

Save $4,555.14
SKU: TJK636500WL-New
Condition: New
Price:
$4,786.86 $9,342.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

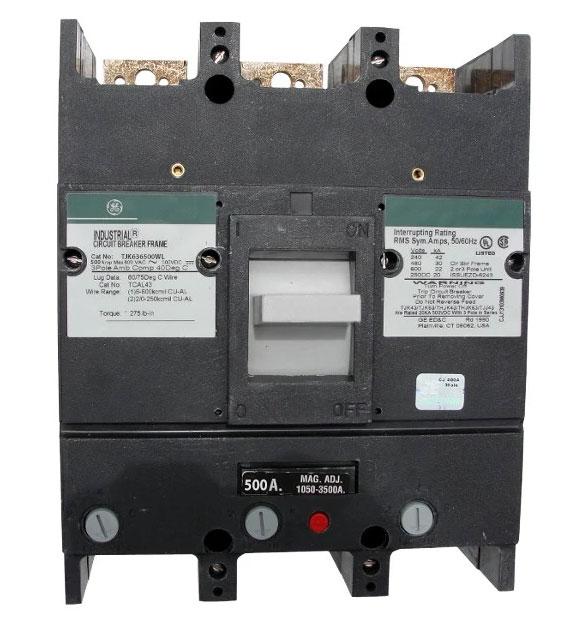

TJK636500WL - General Electric Feed-Thru 600V 500A 3 pole circuit breaker 30kA@480V - Essential Electric Supply
TJK636500WL - General Electric 500A 600V 3P Molded Case Circuit Breaker, TJK6 Frame, Thermal Magnetic Trip, Field Installable Trips, 30kAIC@480V, Feed-Thru, Line & Load Lugs - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TJK636500WL - General Electric Feed-Thru 600V 500A 3 pole circuit breaker 30kA@480V - Essential Electric Supply
TJK636500WL - General Electric 500A 600V 3P Molded Case Circuit Breaker, TJK6 Frame, Thermal Magnetic Trip, Field Installable Trips, 30kAIC@480V, Feed-Thru, Line & Load Lugs - Essential Electric Supply

Description

TJK636500WL


TJK636500WL is a General Electric 500A, 600V, 3-pole molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This thermal magnetic circuit breaker features a TJK6 frame, field-installable trip units, and feed-thru line and load side lug terminals for flexible installation. It offers long time and instantaneous trip functions, with an interrupting rating of 30kA at 480VAC. The breaker is rated for use at 240V, 480V, and 600VAC, and supports both aluminum and copper connections.

    Key Specifications
  • Part Number: TJK636500WL
  • Manufacturer: General Electric
  • Amperage: 500A
  • Voltage: 240V, 480V, 600VAC
  • Poles: 3
  • Mounting Type: Panel or Switchboard (Molded Case)
  • Interrupt Rating: 42kA@240VAC, 30kA@480VAC, 22kA@600VAC, 20kA@500VDC
  • Series/Frame: TJK6 (600A max frame)
  • Trip Unit: Thermal Magnetic, Field Installable/Interchangeable
  • Certifications: UL Listed (assumed, not explicitly stated in sources)
  • Terminals: Line and load side lugs, aluminum/copper compatible
  • Dimensions: 8 1/4" W x 3 13/16" D x 10 1/8" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: TJK636500WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : J600 Line
  • Type : TJK
  • Voltage : 600
  • Amperage : 500
  • Phase : 3
  • Poles : 3
  • AIC rating : 30kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous Trip
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164050790
  • GTIN : 00783164050790
  • Weight : 20

Accesories

Part Manufacture Sub Category
AMC3JK
TJKASA2AB1
TJKST316
TJKBAAL
TJK636T500
