Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

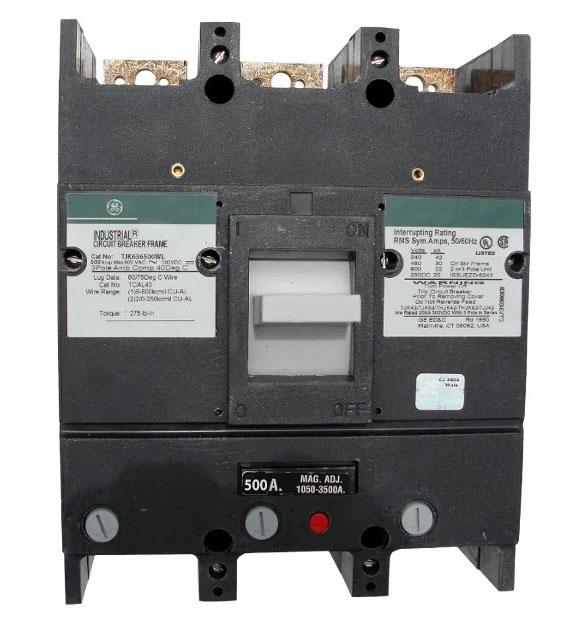

TJK636500
TJK636500 is a General Electric 3 pole molded case circuit breaker rated for 500 amps and 600 volts, designed for industrial electrical protection.TJK636500 features a thermal magnetic trip unit with long time and instantaneous trip functions, interchangeable trip unit, and line and load side lug terminals. It belongs to the J600 series with a TJ frame and supports feed-thru connection for 3-phase systems. The breaker has a 30kA interrupt rating at 480V and is suitable for bolt-on mounting.
- Key Specifications
- Amperage: 500 Amp
- Voltage: 600 Volt AC
- Poles: 3 Pole
- Frame Type: TJ Frame
- Series: J600 Line
- Interrupt Rating: 30kA at 480V
- Trip Unit: Thermal Magnetic, Interchangeable
- Mounting Type: Bolt-On
- Connection: Feed-Thru
- Phase: 3 Phase
- Line & Load Side Lug Terminals
Specifications
- Part Number: TJK636500
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : TJK
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 078316405078
- GTIN : 00783164050783
- Weight : 20
