Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

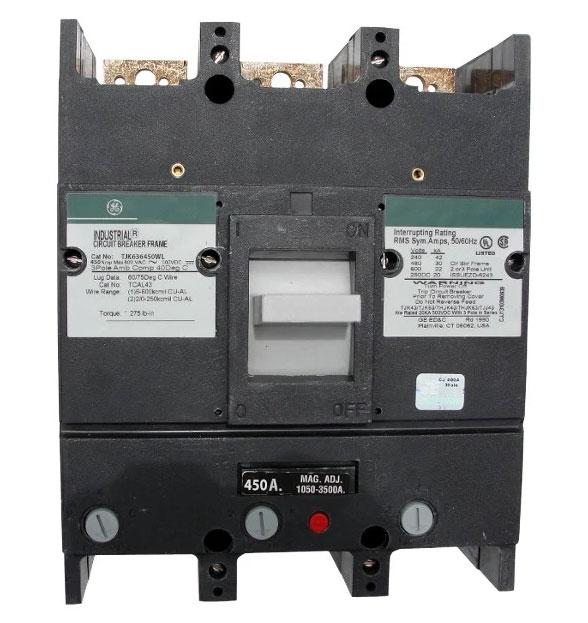

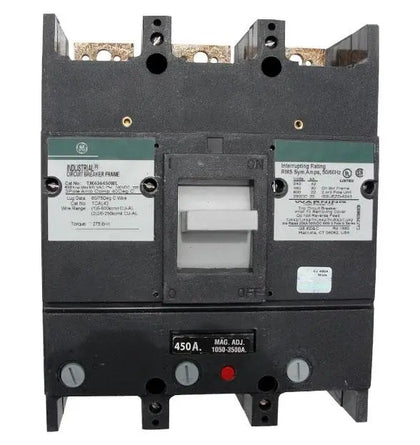

TJK636450WL
TJK636450WL is a General Electric 450 Amp, 600 Volt, 3 Pole molded case circuit breaker designed for reliable thermal magnetic protection.This circuit breaker features a TJK frame from the J600 line, providing thermal magnetic trip functions with long time and instantaneous trip capabilities. It supports field-installable trip units including shunt trips and auxiliaries, and is rated for 30kA interrupting capacity at 480 VAC. The breaker includes line and load side lug terminals and is suitable for feed-thru applications in three-phase systems.
- Amperage: 450A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: TJK (J600 Line)
- Interrupting Rating: 30kA at 480 VAC
- Trip Unit: Thermal Magnetic, interchangeable
- Mounting: Feed-Thru
- Line and Load Side Lug Terminals
- Supports Field Installable Trips (Shunt Trip, Auxiliaries)
- Phase: 3 Phase
- Protection: Overload and Short Circuit
- Certifications: Standard industrial certifications (not explicitly listed)
Specifications
- Part Number: TJK636450WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : TJK
- Voltage : 600
- Amperage : 450
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164164091
- GTIN : 00783164164091
- Weight : 20
