Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TJK436350WL

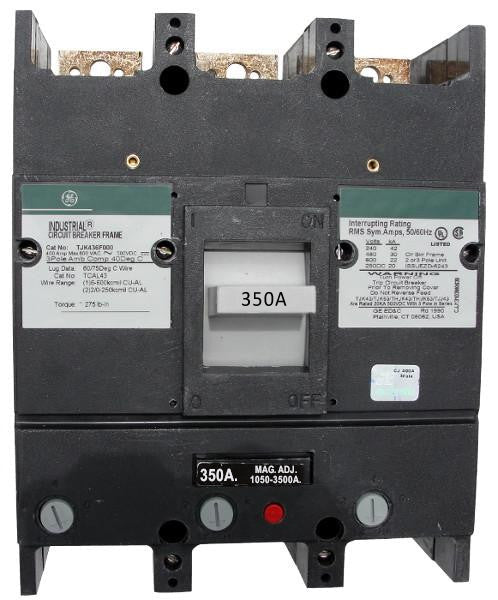

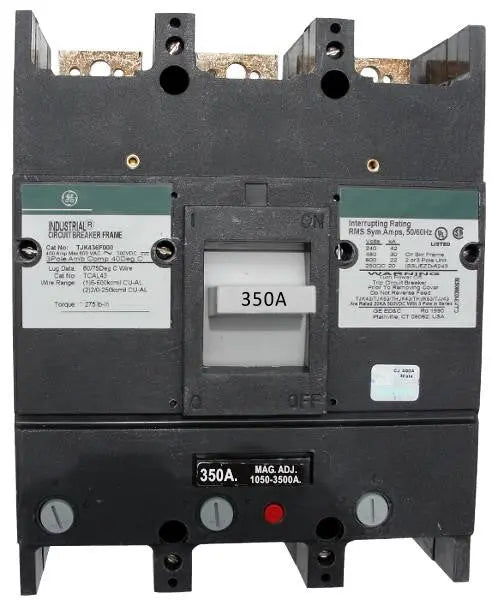

TJK436350WL is a General Electric molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This unit features a TJK frame style and an interchangeable thermal magnetic trip unit for flexible protection settings. The TJK436350WL is a three-pole, 350 ampere circuit breaker rated for 600V AC at 50/60Hz. It is part of the J600 line and offers a 30kA interrupt rating at 480V, making it suitable for demanding electrical environments. The breaker includes line and load side lug terminals for easy installation and connection.
- Part Number: TJK436350WL
- Manufacturer: General Electric
- Series/Frame: TJK
- Amperage: 350A
- Voltage: 600V AC
- Poles: 3
- Interrupt Rating: 30kA @ 480V
- Mounting Type: Feed-Thru
- Trip Unit: Interchangeable Thermal Magnetic
- Application: J600 Line
- Terminal Type: Line & Load Side Lug
- Frequency: 50/60Hz
Specifications
- Part Number: TJK436350WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : TJK
- Voltage : 600
- Amperage : 350
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164050158
- GTIN : 00783164050158
- Weight : 21
