Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TJK436300WL

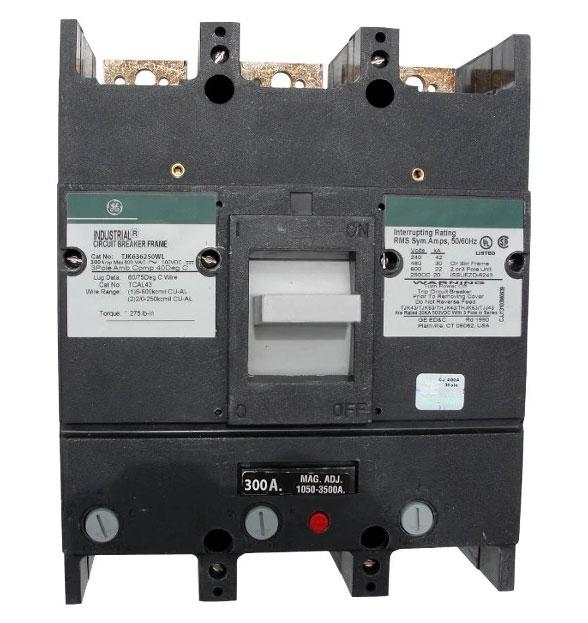

TJK436300WL is a General Electric 300 amp, 600 volt, 3 pole thermal magnetic molded case circuit breaker designed for reliable electrical protection.This TJK frame breaker features a bolt-on mounting type with a 30kA interrupting rating at 480 volts. It supports thermal magnetic trip units with long-time and instantaneous functions, suitable for 3-phase applications. The breaker includes line and load lug terminals compatible with aluminum and copper wiring.
- Manufacturer: General Electric
- Amperage: 300A
- Voltage Rating: 600V AC
- Poles: 3
- Frame Type: TJK
- Interrupting Rating: 30kA at 480V
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Phase: 3
- Terminal Type: Line/Load Lug
- Dimensions: Approx. 8 1/4" W x 3 13/16" D x 10 1/8" H
- Certifications: UL Listed
Specifications
- Part Number: TJK436300WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : TJK
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164050134
- GTIN : 00783164050134
- Weight : 21
