- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TJK436225

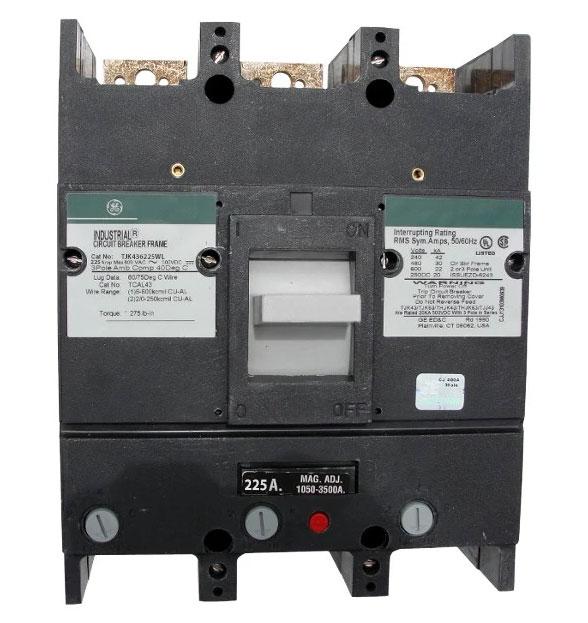

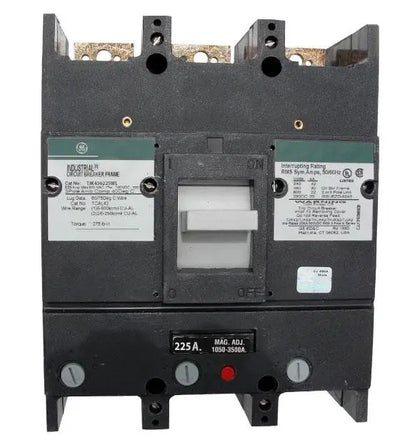

TJK436225 is a General Electric 225 amp, 600 volt, 3 pole molded case circuit breaker from the J600 line frame.This Type TJK circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It has a 30kA interrupt rating at 480VAC and is bolt-on mounted with load-side lugs included. The breaker is HACR rated and designed for residential, commercial, and industrial applications with internal common trip and non-interchangeable trip unit.
- Amperage: 225A
- Voltage Rating: 600VAC
- Poles: 3
- Frame Type: J600 (TJK4)
- Interrupt Rating: 30kA at 480VAC (22kA at 600VAC)
- Trip Unit: Thermal Magnetic, Long Time and Instantaneous (LI)
- Mounting Type: Bolt-On
- HACR Rated
- Includes Load-Side Lugs
- Internal Common Trip
- Non-Interchangeable Trip Unit
- Applications: Residential, Commercial, Industrial
Specifications
- Part Number: TJK436225
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : TJK
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- GTIN : 00783164050080
- Weight : 20
