Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TJJ436350WL

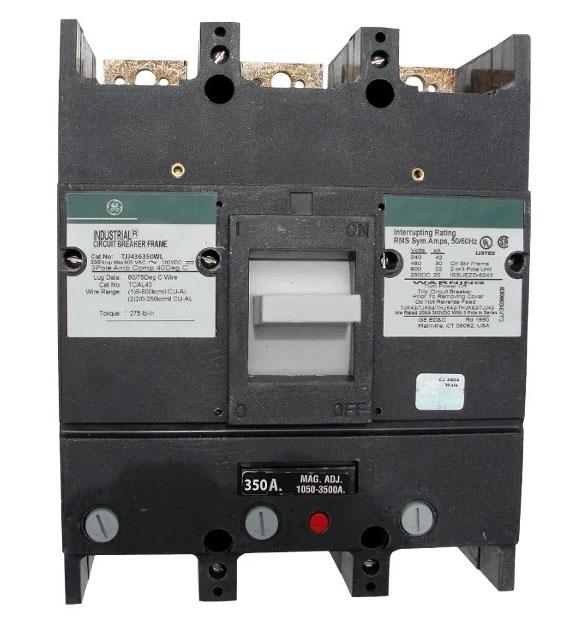

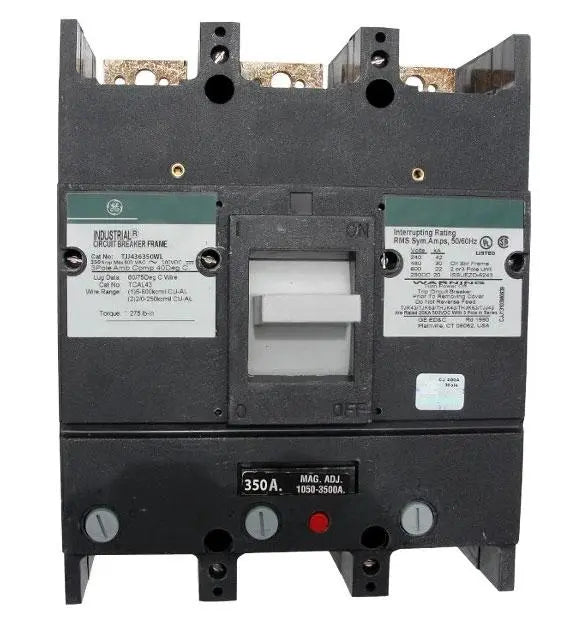

TJJ436350WL is a General Electric 3-pole molded case circuit breaker with a 350 ampere rating and 600 volt capacity designed for reliable power distribution protection.This thermal magnetic breaker features a TJJ frame, fixed trip unit, and supports line and load side lug terminals. It offers interrupting ratings up to 42kA at 240 VAC and 30kA at 480 VAC, suitable for industrial and commercial applications. The breaker is UL listed and accommodates aluminum or copper wiring.
- Manufacturer: General Electric
- Part Number: TJJ436350WL
- Amperage: 350 A
- Voltage Rating: 600 VAC / 500 VDC max
- Poles: 3
- Frame: TJJ4
- Interrupting Rating: 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC
- Trip Unit: Fixed thermal magnetic
- Mounting Type: Molded case
- Terminal Type: Aluminum/Copper line and load lugs
- Certifications: UL Listed
Specifications
- Part Number: TJJ436350WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : TJJ
- Voltage : 600
- Amperage : 350
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164013665
- GTIN : 00783164013665
- Weight : 17
