Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQP150

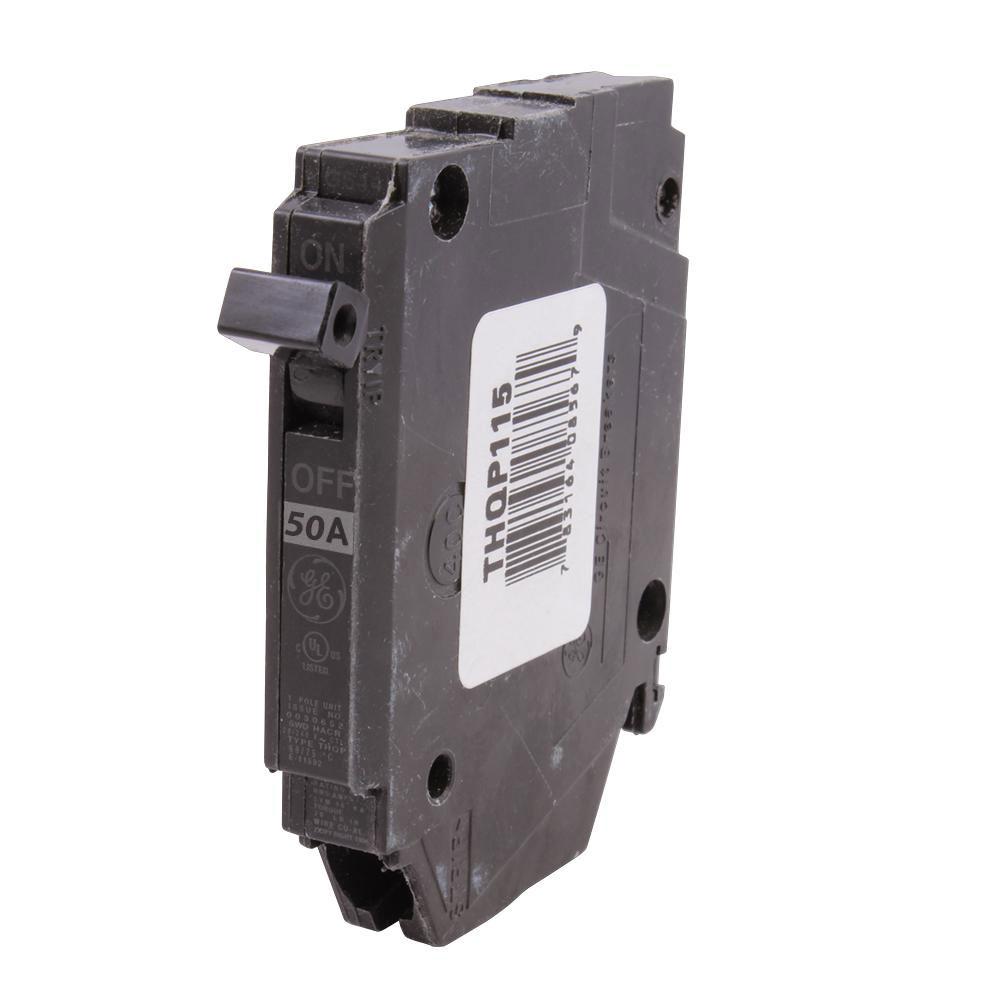

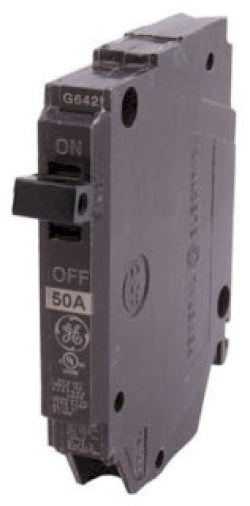

THQP150 is a General Electric 50 Amp 1 Pole Q-Line plug-in circuit breaker designed for 120/240 Volt systems with a 10kA interrupt rating.This THQP150 circuit breaker features a thermal magnetic trip unit with fixed long-time and instantaneous trip functions. It is a single-pole breaker suitable for use in Q-Line load centers, offering a compact half-width design for space-saving installation. The breaker supports 120 VAC, 240 VAC, and 120/240 VAC systems and is UL listed with HACR and GSA compliance.
- Key Specifications
- Amperage: 50 A
- Voltage: 120/240 VAC
- Poles: 1
- Interrupt Rating: 10 kAIC @ 120V
- Mounting Type: Plug-In
- Frame Type: Q-Line (THQP)
- Trip Unit: Thermal Magnetic, Fixed LI (Long-Time and Instantaneous)
- Wire Range: 8-4 kcmil Copper/Aluminum
- Suitable for Reverse Feed: Yes
- Certifications: UL Listed, HACR, GSA Compliant
Specifications
- Part Number: THQP150
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQP
- Voltage : 120/240
- Amperage : 50
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164134476
- GTIN : 00783164134476
- Country of Origin : Dominican Republic
- Dimensions : 0.5 in x 3.28 in x 3-9/32 in
- Weight : 0.24 lb
- Certification : UL
- Wire Size : 8 To 4 Awg (Copper/Aluminum)
