Product Info
- Manufacturer:ABB||General Electric
- Sub-Category:Molded Case
Description
THQLQ201520

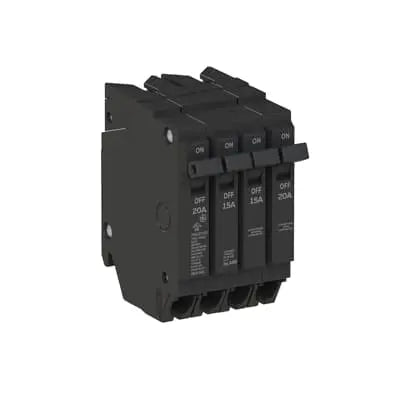

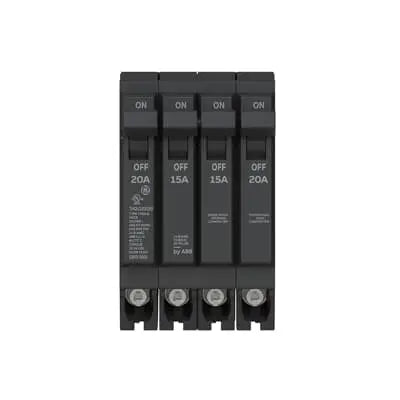

THQLQ201520 is a General Electric Q-Line quad circuit breaker designed for residential and commercial electrical panels.This quad breaker features a combination of 20A single-pole, 15A double-pole, and 20A single-pole breakers in a 4-pole Q-Line frame, suitable for 120/240V systems. It has a 10 kA interrupting rating, non-interchangeable trip style, and is HACR rated for use with heating, air conditioning, and refrigeration equipment. The breaker supports standard continuous current and is compatible with GE and ABB load centers.
- Key Specifications
- Amperage: 20A/15A/20A
- Voltage: 120/240 V AC
- Poles: 4 (2 single-pole + 1 double-pole)
- Frame Type: Q-Line
- Interrupting Capacity: 10 kAIC
- Trip Style: Non-Interchangeable
- Mounting Type: Plug-In
- Certifications: UL Listed (E11592), HACR Rated
- Suitable for Reverse Feed: Yes
- Wire Range: (2) #14-8 CU / #12-8 AL
Specifications
- Part Number: THQLQ201520
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Type : Q-Line
- Voltage : 120/240VAC
- Amperage : 20, 15
- Phase : 1
- Poles : 4
- AIC rating : 10kAIC
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
- Compatible Frames : Q-Line
Product Data
- Weight : 5.19
- Standards : HACR, SWD
- Certification : UL, CUL
- Wire Size : 2x AWG 14 to AWG 8, CU, AWG 12 to AWG 8, AL
