Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQL32020

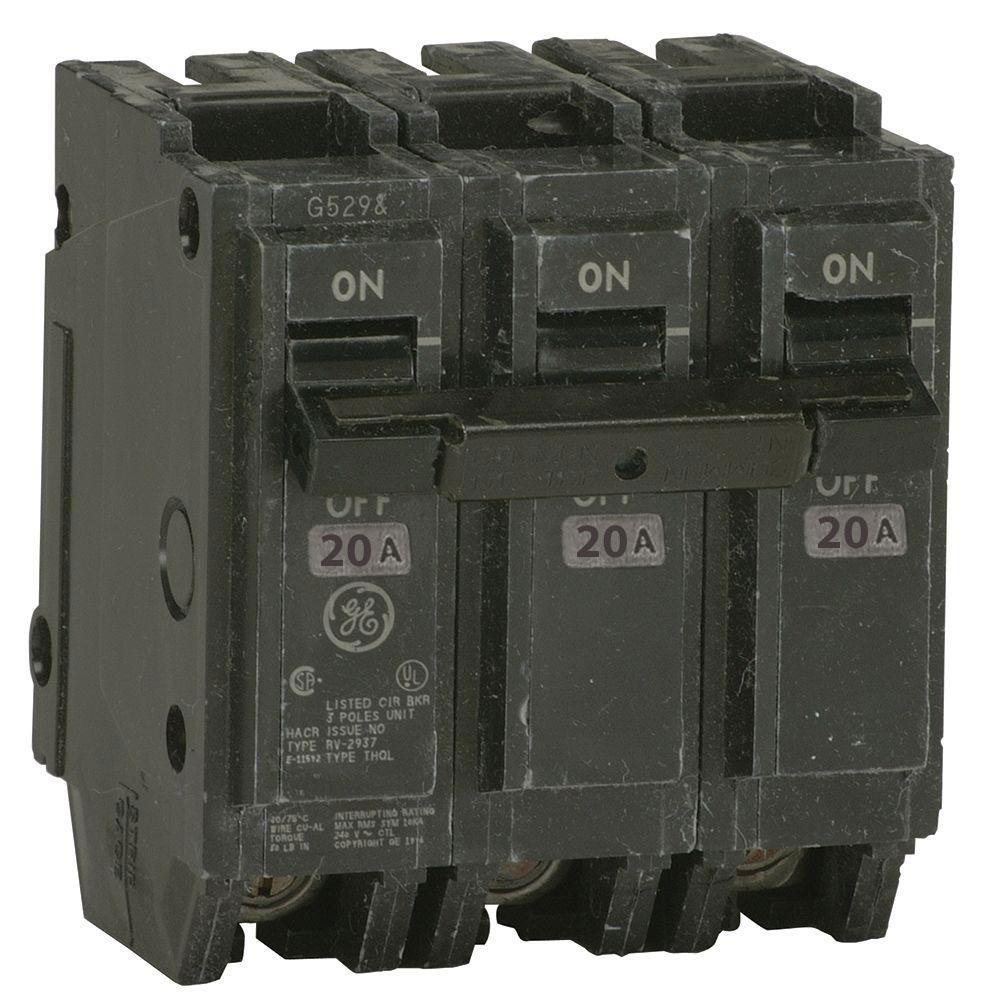

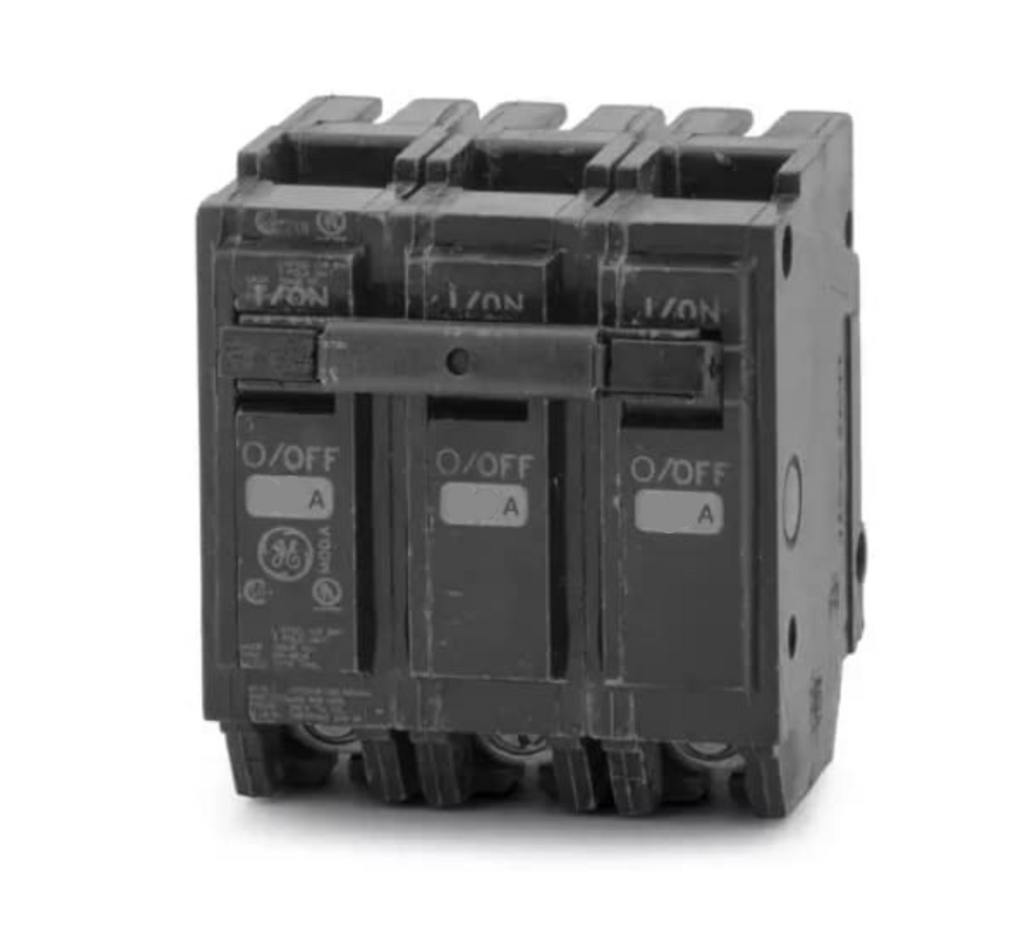

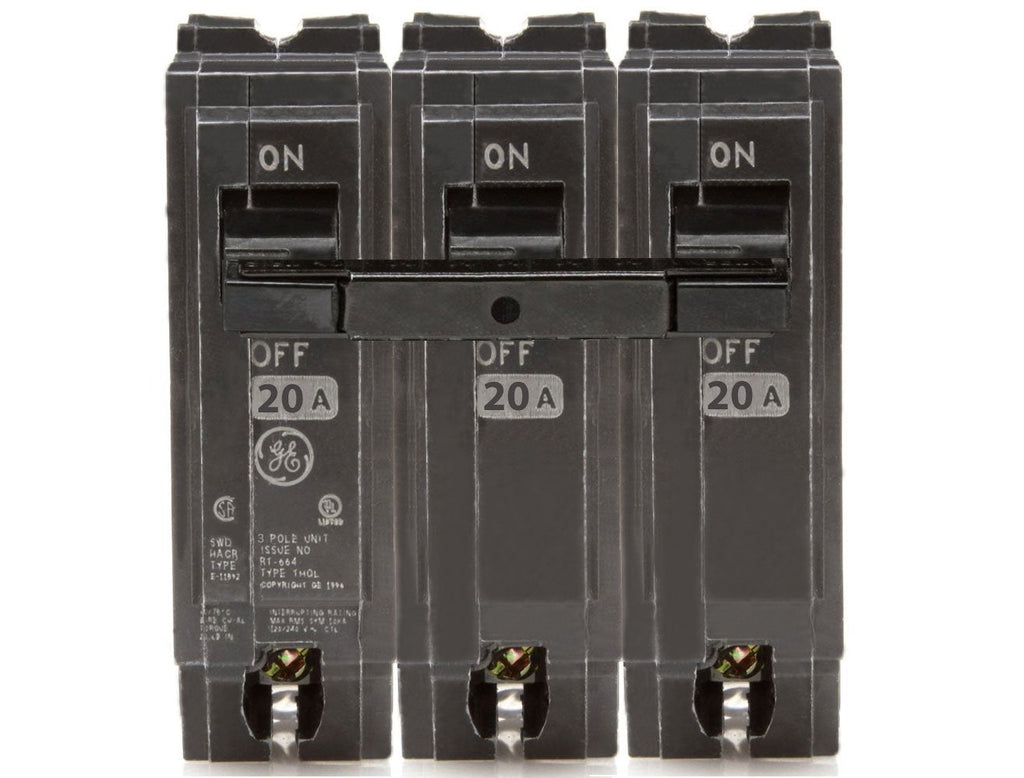

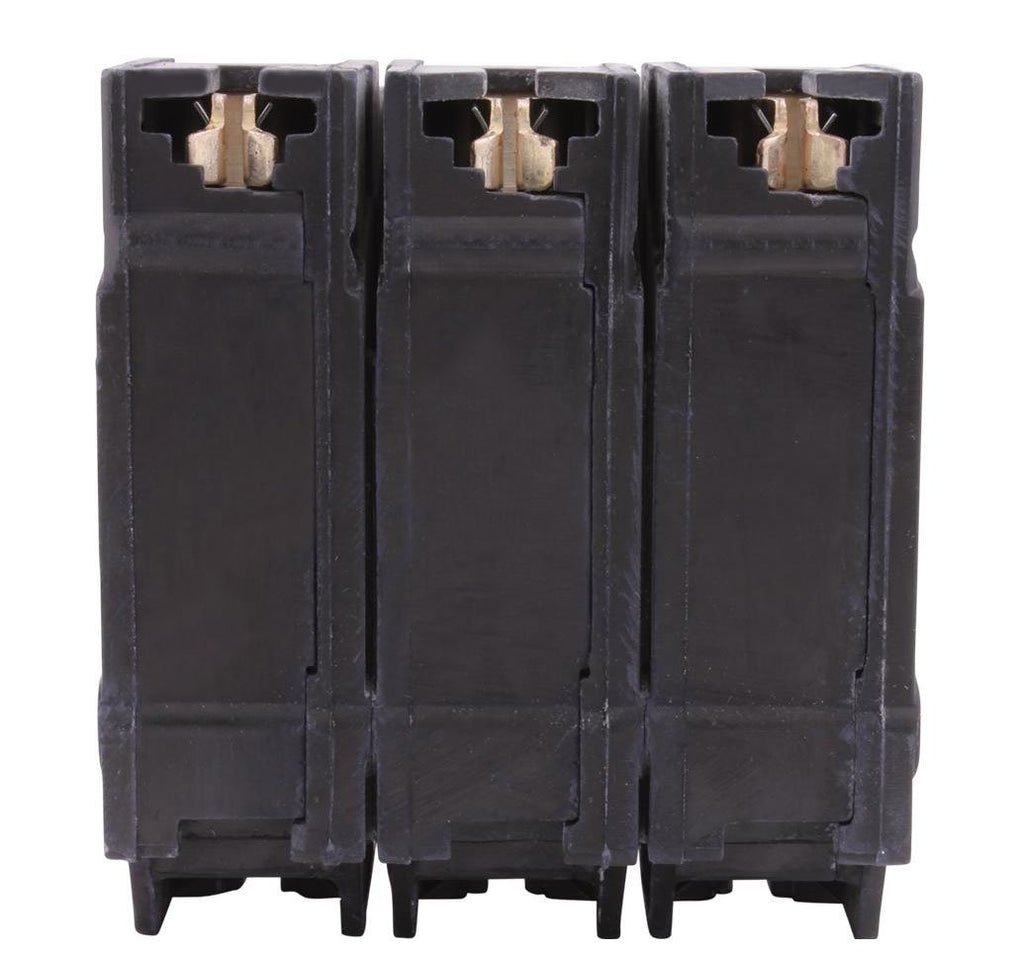

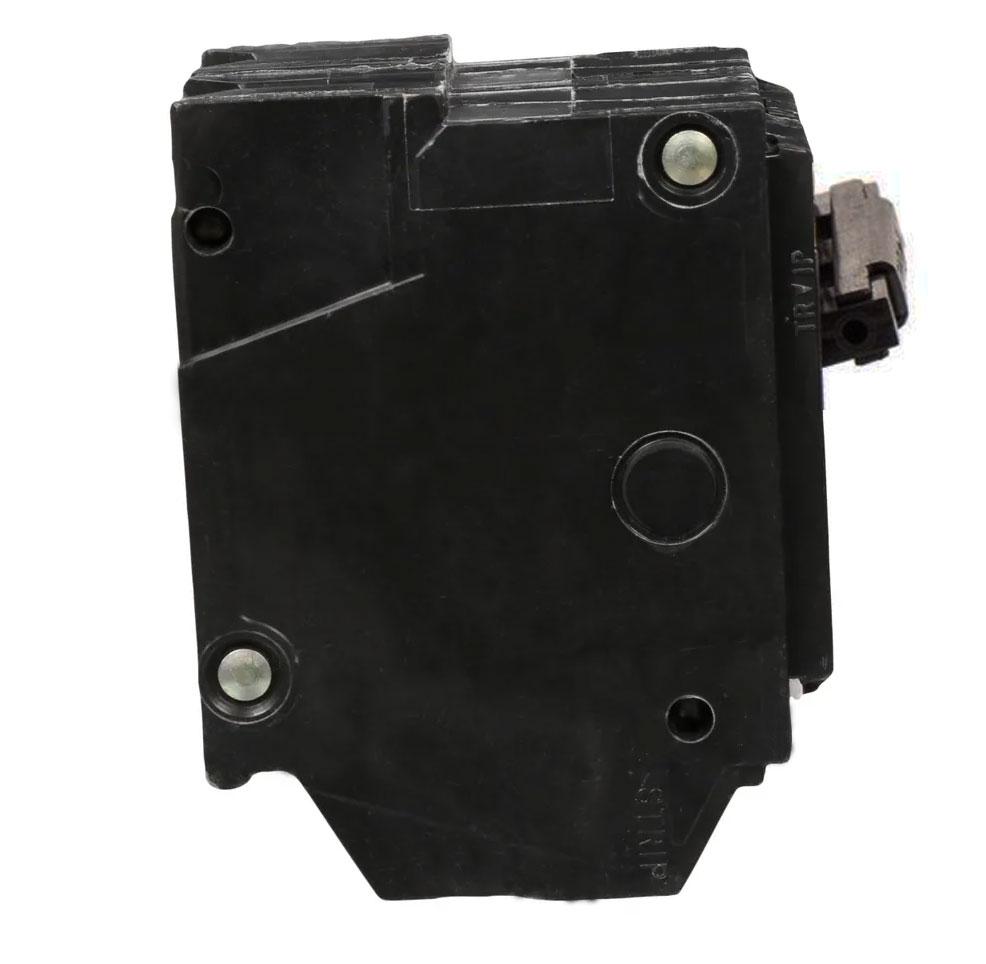

THQL32020 is a General Electric 3 pole, 20 amp, 240 volt thermal magnetic circuit breaker from the Q-Line series designed for residential and commercial electrical panels.This molded case circuit breaker features a plug-in mounting type, a 10,000 amp interrupt rating, and a common trip thermal magnetic trip unit with long-time and instantaneous trip functions. It is UL listed and CSA approved, suitable for three-phase applications with reliable protection and reverse feed capability.
- Manufacturer: General Electric
- Series: Q-Line (THQL)
- Amperage: 20 Amps
- Voltage: 240 Volts AC
- Poles: 3
- Mounting Type: Plug-In
- Interrupt Rating: 10,000 Amps
- Trip Unit: Thermal Magnetic, Common Trip
- Phase: 3
- Certifications: UL Listed, CSA Approved
- Dimensions: Approximately 3" x 3" x 3"
Specifications
- Part Number: THQL32020
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQL
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164013016
- GTIN : 40783164013014
- Weight : 1
- Certification : Ul Listed
- Wire Size : 14 To 8 Awg (Copper) 12 To 8 Awg (Aluminum)
