THQL1120PGFT General Electric 20 Amp 1-Pole 120/240V Plug-On Neutral GFCI Molded Case Circuit Breaker

SKU: THQL1120PGFT-New
Condition: New
Price:
$60.25
Stock:
39 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

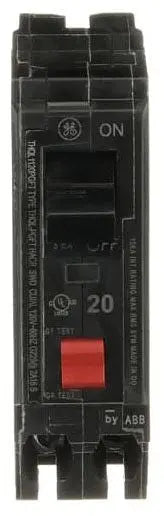

THQL1120PGFT - General Electric 20 Amp 120/240V 1 Pole Thermal Magnetic Ground Fault Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
THQL1120PGFT - General Electric 20 Amp 120/240V 1 Pole Thermal Magnetic Ground Fault Circuit Breaker - Essential Electric Supply

Description

THQL1120PGFT


THQL1120PGFT General Electric 20 Amp 1-Pole 120/240V Plug-On Neutral GFCI Molded Case Circuit Breaker

The THQL1120PGFT is a General Electric THQL Q-Line molded case circuit breaker rated 20 amps at 120/240 VAC, 1-pole, with a 10,000 AIC interrupting rating and integral ground fault protection. It is UL Listed and CSA certified, HACR rated, and built to UL943 fifth edition for Class A personnel protection at a 5 mA trip sensitivity. Plug-on neutral (PON) termination and a thermal magnetic trip unit with fixed Long Time and Instantaneous functions support inclusion in submittal packages and panel schedules requiring documented GFCI branch protection.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

  • Branch circuit GFCI protection in kitchens, bathrooms, and laundry areas per NEC 210.8
  • Garage, basement, crawl space, and outdoor receptacle circuits
  • Replacement or new-construction breaker for GE PowerMark Gold and AQ lighting panels
  • Panel schedules specifying 20A single-pole GFCI protection

Key Features

  • Plug-on neutral termination: Connects to a compatible load center bus without pigtail wiring
  • Self-test ground fault monitoring: Periodically verifies GFCI function without manual testing
  • 5 mA trip sensitivity: Meets UL943 fifth edition Class A personnel protection
  • Thermal magnetic trip unit: Fixed Long Time and Instantaneous overload and short circuit protection
  • Quick-make/quick-break mechanism: Standard Q-Line switching action with visible trip indication

Specifications

  • Catalog Number: THQL1120PGFT
  • Manufacturer: General Electric (GE), manufactured under ABB Electrification
  • Type: THQL Q-Line
  • Poles: 1
  • Voltage Rating: 120/240 VAC
  • Amperage Rating: 20 A
  • Interrupting Rating: 10,000 AIC (10 kAIC) at 120/240V
  • Trip Unit: Thermal magnetic, fixed Long Time and Instantaneous, non-interchangeable
  • Ground Fault Sensitivity: 5 mA, Class A personnel protection
  • Termination: Plug-on neutral (PON), plug-in mounting
  • Wire Range: 14 AWG minimum to 8 AWG maximum copper; 12 AWG to 8 AWG aluminum
  • Certifications: UL Listed, CSA certified, HACR rated, UL943 fifth edition
  • Compatibility: GE PowerMark Gold load centers and AQ lighting panels

Product Identification

  • UPC: 783164639872

FAQ

What is the THQL1120PGFT? A General Electric THQL Q-Line 20 amp, 1-pole, 120/240 VAC molded case circuit breaker with integral ground fault protection and plug-on neutral termination.

What is the interrupting rating? 10,000 AIC (10 kAIC) at 120/240 VAC.

<

Specifications

  • Part Number: THQL1120PGFT
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Type : THQL
  • Voltage : 120/240VAC
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kAIC at 240V
  • Connection : Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164639872
  • Weight : 0.75 lb
