Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQL1115GFT

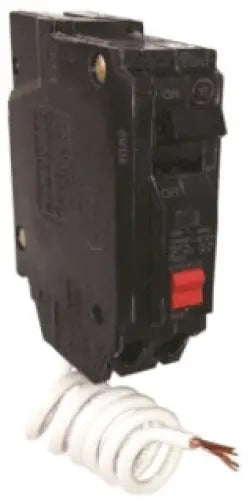

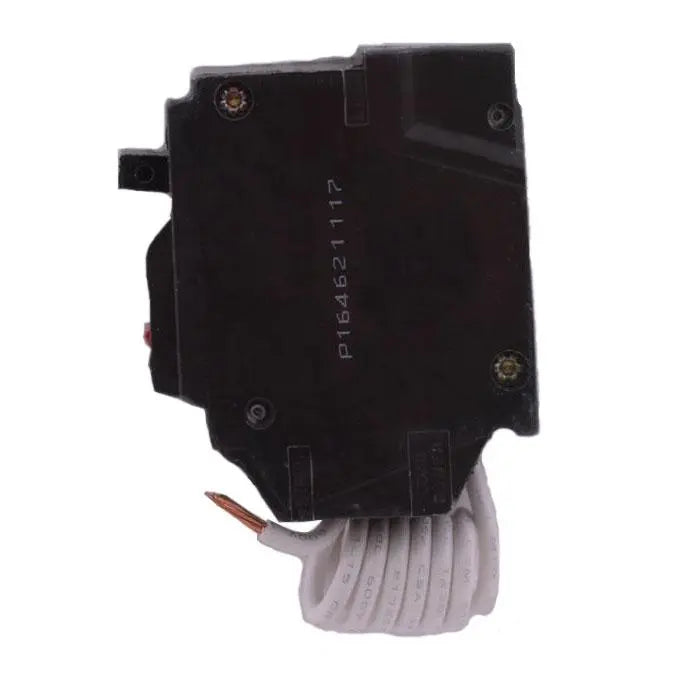

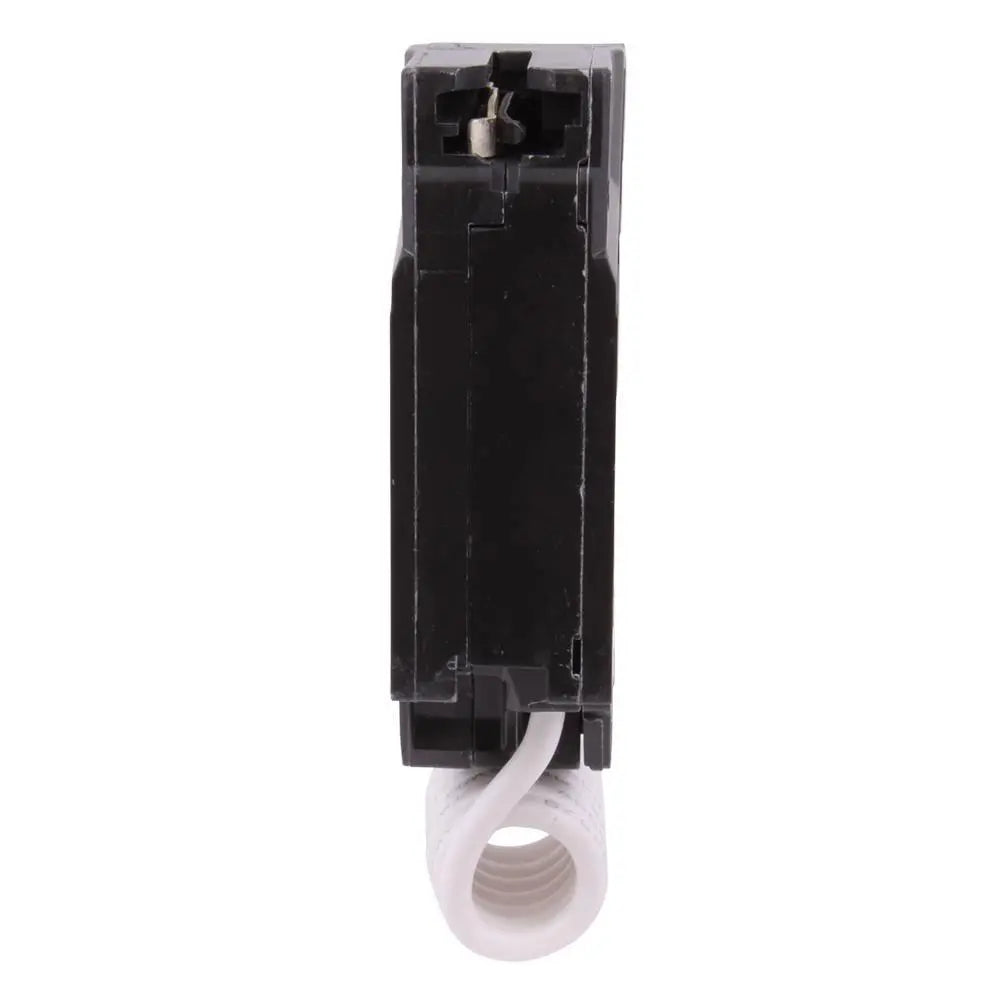

THQL1115GFT is a General Electric 15 Amp, 120 VAC, 1 Pole Ground Fault Circuit Breaker from the THQL Q-Line series designed for reliable ground fault protection.This self-test GFCI breaker features a fixed thermal magnetic trip unit with a 5 mA ground fault trip sensitivity and a 10 kA interrupt rating. It is plug-in mounted, suitable for residential load centers, and includes a tin-plated copper stab for corrosion-resistant connection. The breaker is cULus listed and UL 489 certified, meeting NEC requirements for ground fault protection in wet or damp locations.
- Key Specifications
- Amperage: 15 A
- Voltage: 120 VAC
- Number of Poles: 1
- Mounting Type: Plug-In
- Interrupt Rating: 10 kA
- Series/Frame: THQL Q-Line
- Trip Unit: Fixed Thermal Magnetic, 5 mA Ground Fault
- Self-Test Feature: Yes
- Certifications: cULus Listed, UL 489, Federal Specification WC-375B
- Connection Type: Tin Plated Copper Stab
- Wire Size Range: 14 to 8 AWG Cu, 12 to 8 AWG Al
Specifications
- Part Number: THQL1115GFT
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQL
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164485295
- GTIN : 00783164485295
- Weight : 0.54 lb
- Certification : UL Listed
