Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQC32020WL

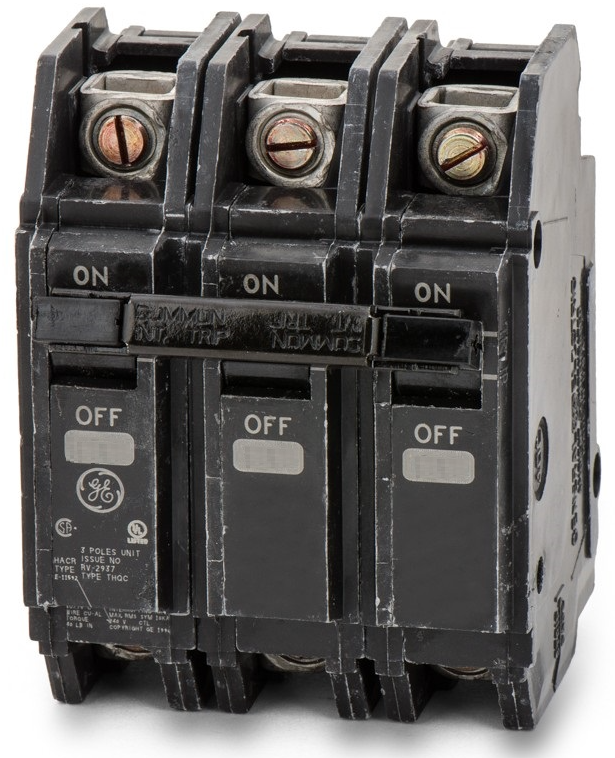

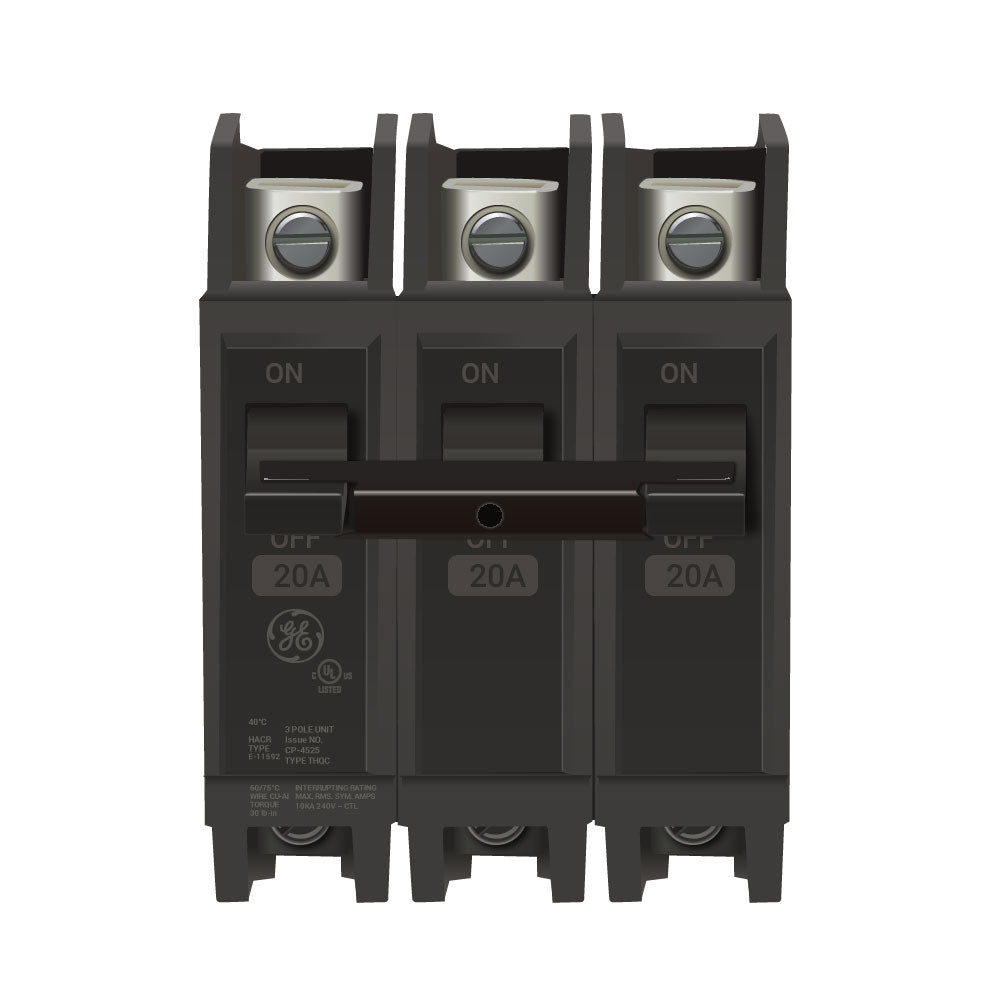

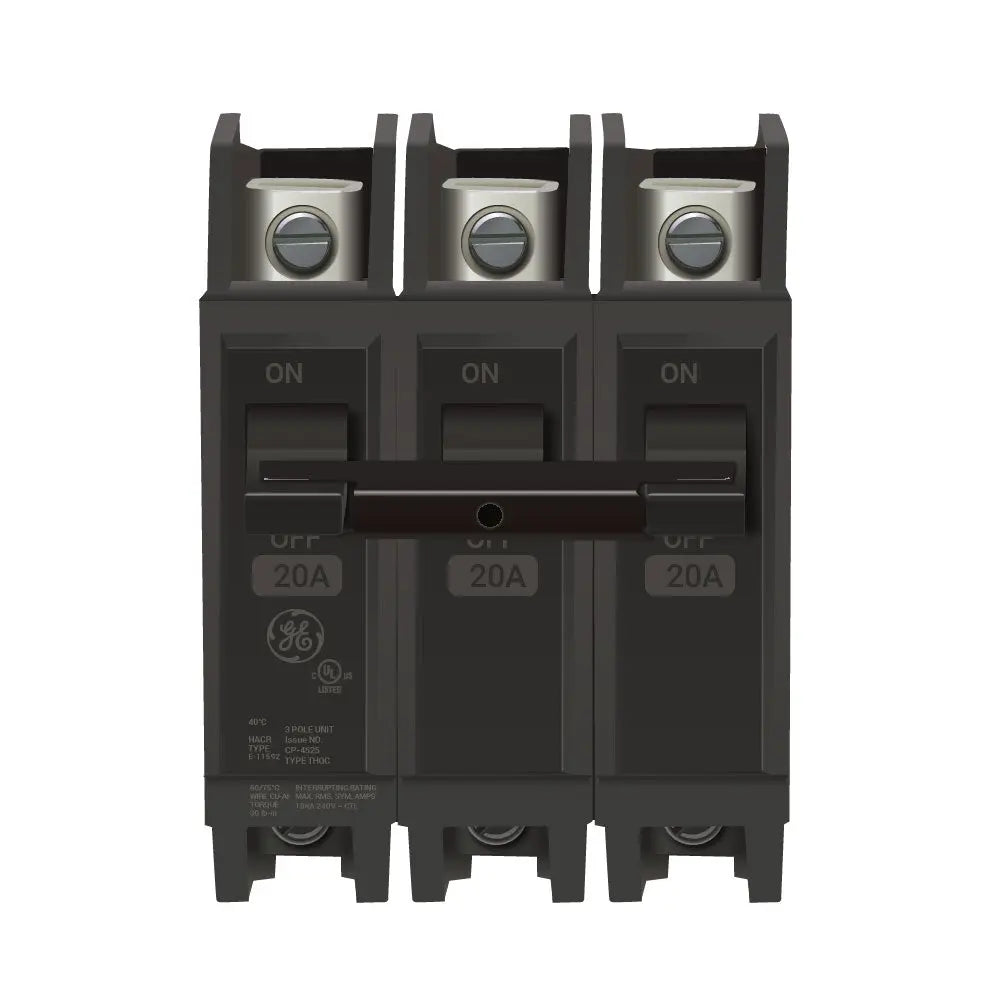

THQC32020WL is a 3-pole, 20 amp, 240 volt thermal magnetic circuit breaker from General Electric's THQC series designed for residential and commercial applications.This General Electric THQC32020WL circuit breaker features a 10kA interrupt rating at 240 VAC, thermal magnetic trip unit with long-time and instantaneous trip functions, and feed-thru capability. It supports line and load side lug terminals with wire size range from 14 to 8 AWG for copper and 12 to 8 AWG for aluminum. It is UL listed and meets UL 489, UL E11592, Federal Specification WC-375B, and HACR ratings.
- Amperage: 20 Amp
- Voltage: 240 VAC
- Poles: 3
- Frame Type: THQC
- Interrupt Rating: 10,000 AIC @ 240 VAC
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
- Mounting Type: Cable-In Cable-Out (Feed-Thru)
- Terminal Type: Line and Load Side Lug Terminals
- Wire Size: 14-8 AWG Copper, 12-8 AWG Aluminum
- Certifications: UL 489, UL E11592, Federal Spec WC-375B, HACR
Specifications
- Part Number: THQC32020WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQC
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164012705
- GTIN : 00783164012705
- Country of Origin : United States
- Weight : 1 lb
