Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

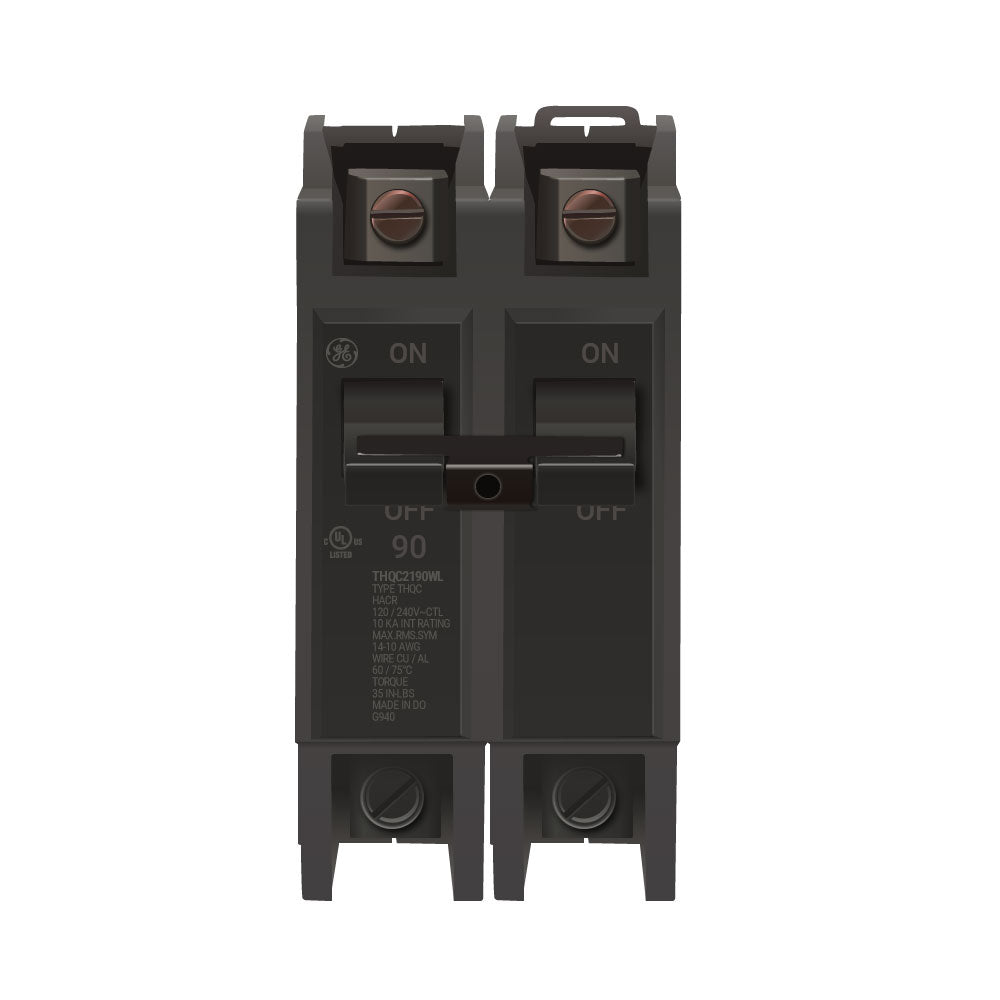

THQC2190WL
THQC2190WL is a General Electric 2 pole, 90 amp circuit breaker designed for 120/240 VAC applications with a Q-Line frame and thermal magnetic trip.This GE THQC2190WL circuit breaker features a 10 kA interrupt rating at 120/240 VAC, plug-in mounting type, and line/load lug terminals. It includes long-time and instantaneous (LI) trip functions with a non-interchangeable trip unit. The breaker supports wire sizes from #6 to 1/0 AWG copper and #4 to 1/0 AWG aluminum and is UL listed and HACR rated for reliable performance.
- Amperage: 90 A
- Voltage: 120/240 VAC
- Poles: 2
- Interrupt Rating: 10 kA at 120/240 VAC
- Mounting Type: Plug-In
- Frame Type: Q-Line
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Wire Size: #6 to 1/0 AWG Cu, #4 to 1/0 AWG Al
- UL Listed and HACR Rated
- Line and Load Side Lug Terminals
- Non-Interchangeable Trip
Specifications
- Part Number: THQC2190WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQC
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164131574
- GTIN : 00783164131574
- Weight : 0.8
- Certification : Ul Listed
- Wire Size : 14 To 2 Awg (Copper)/12 To 2 Awg (Aluminum) Load
