Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQB32080ST1

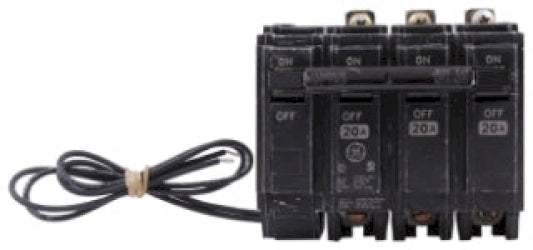

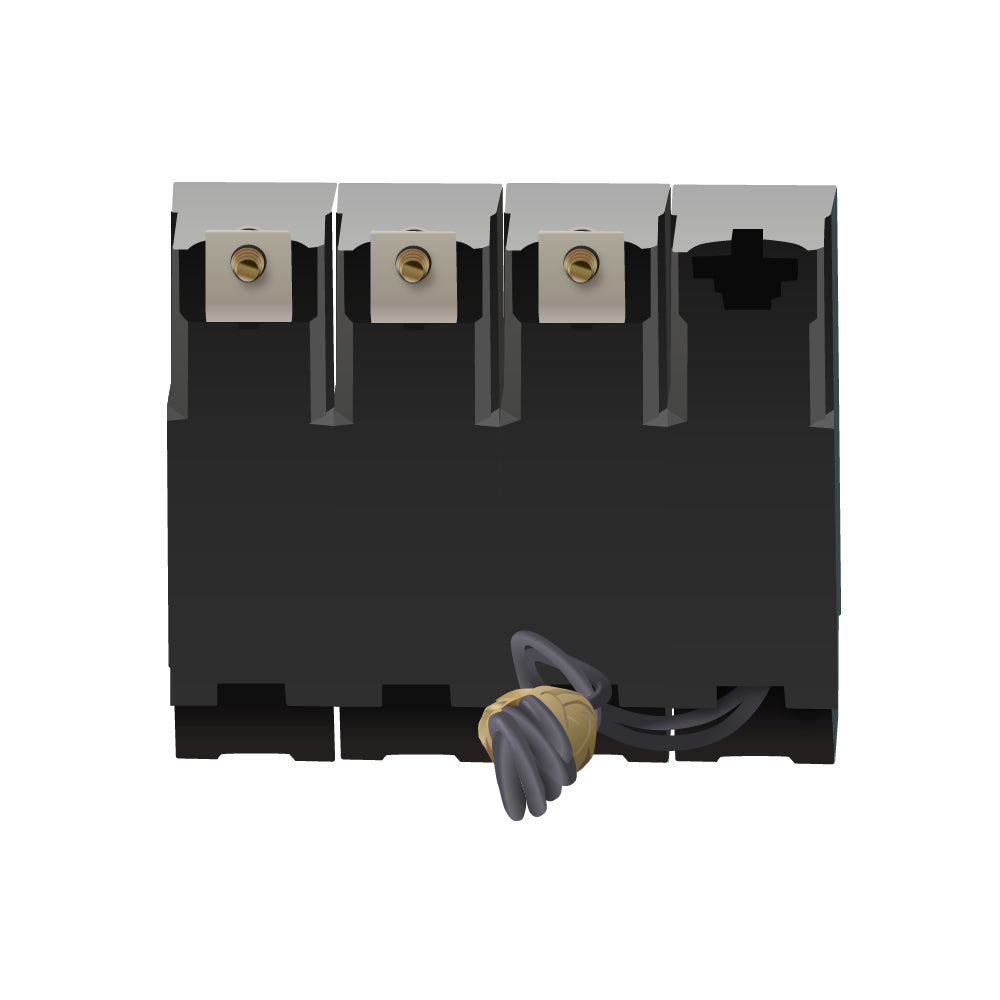

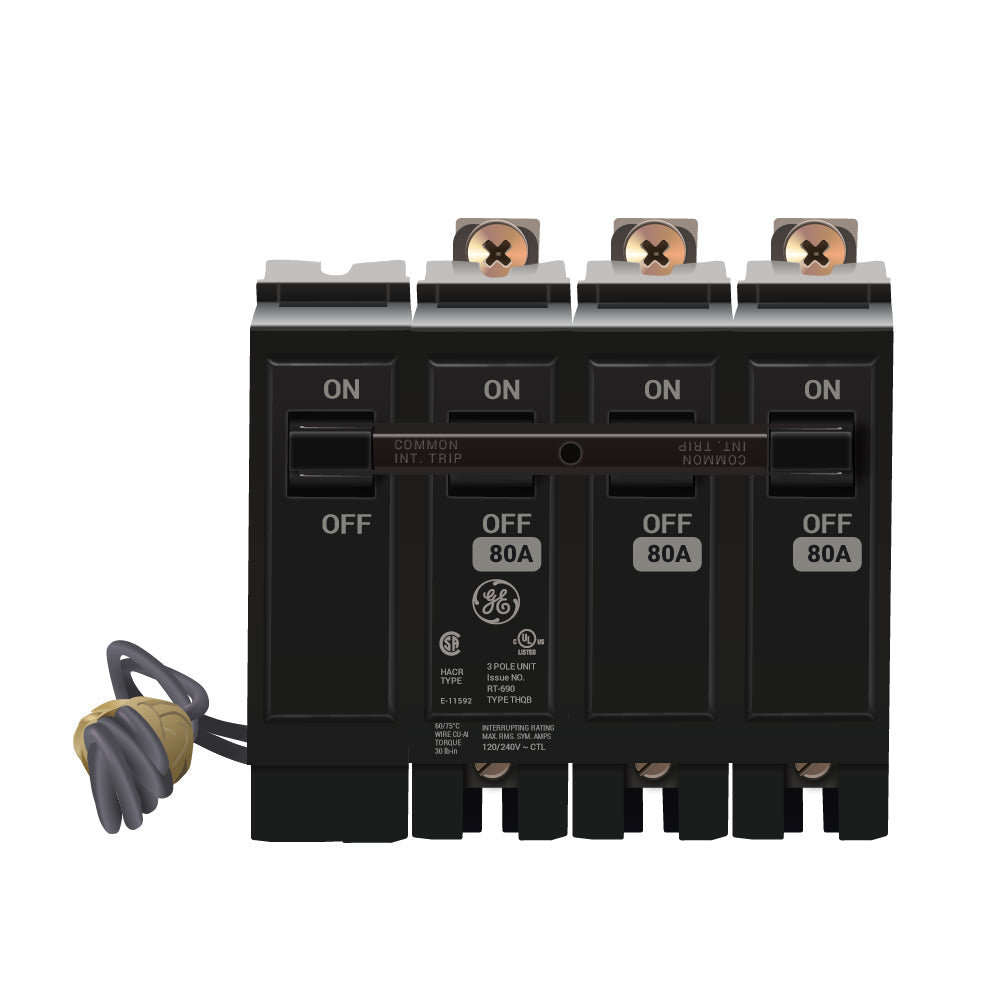

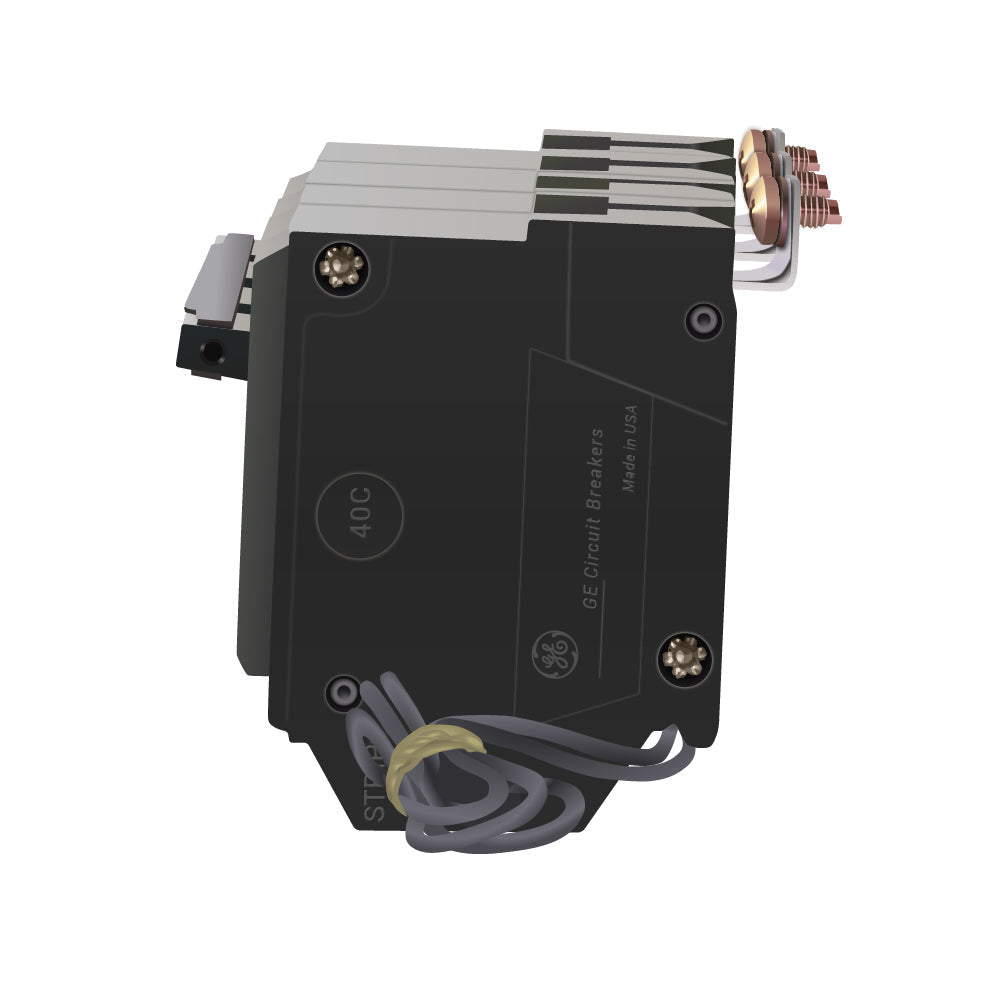

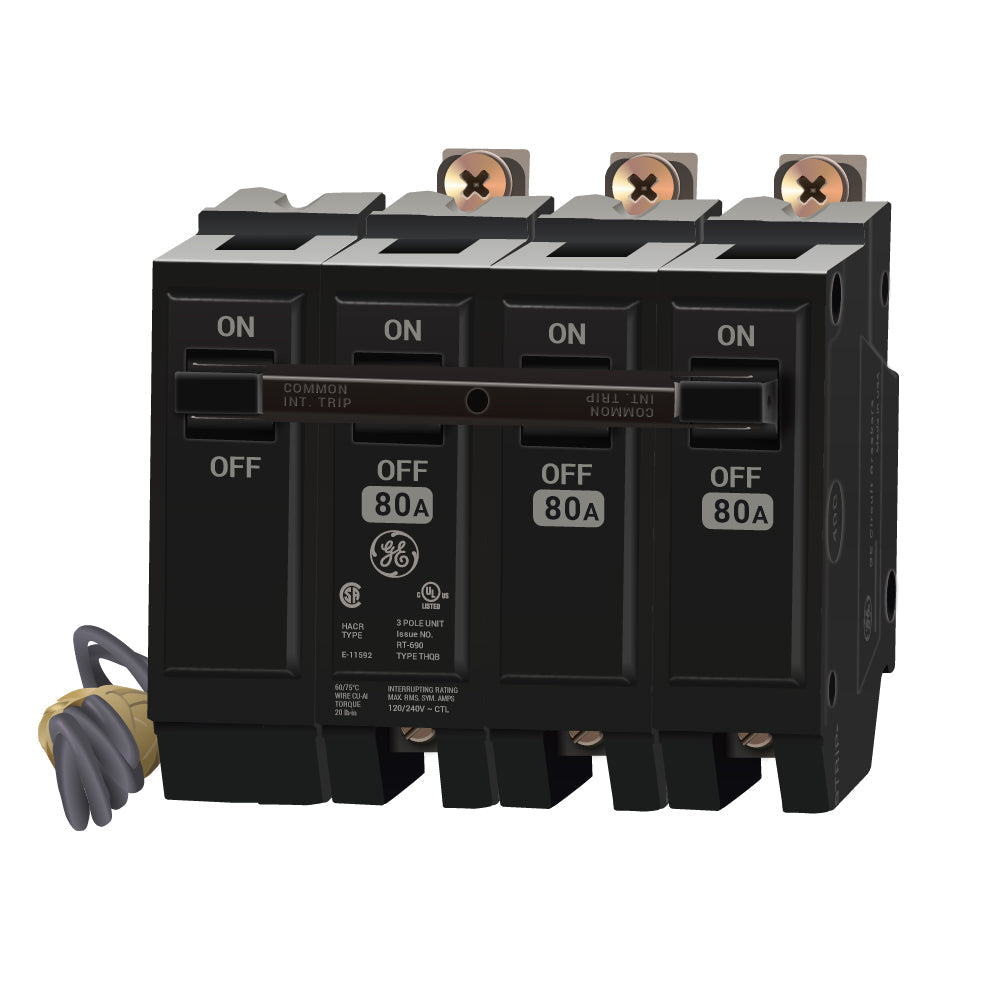

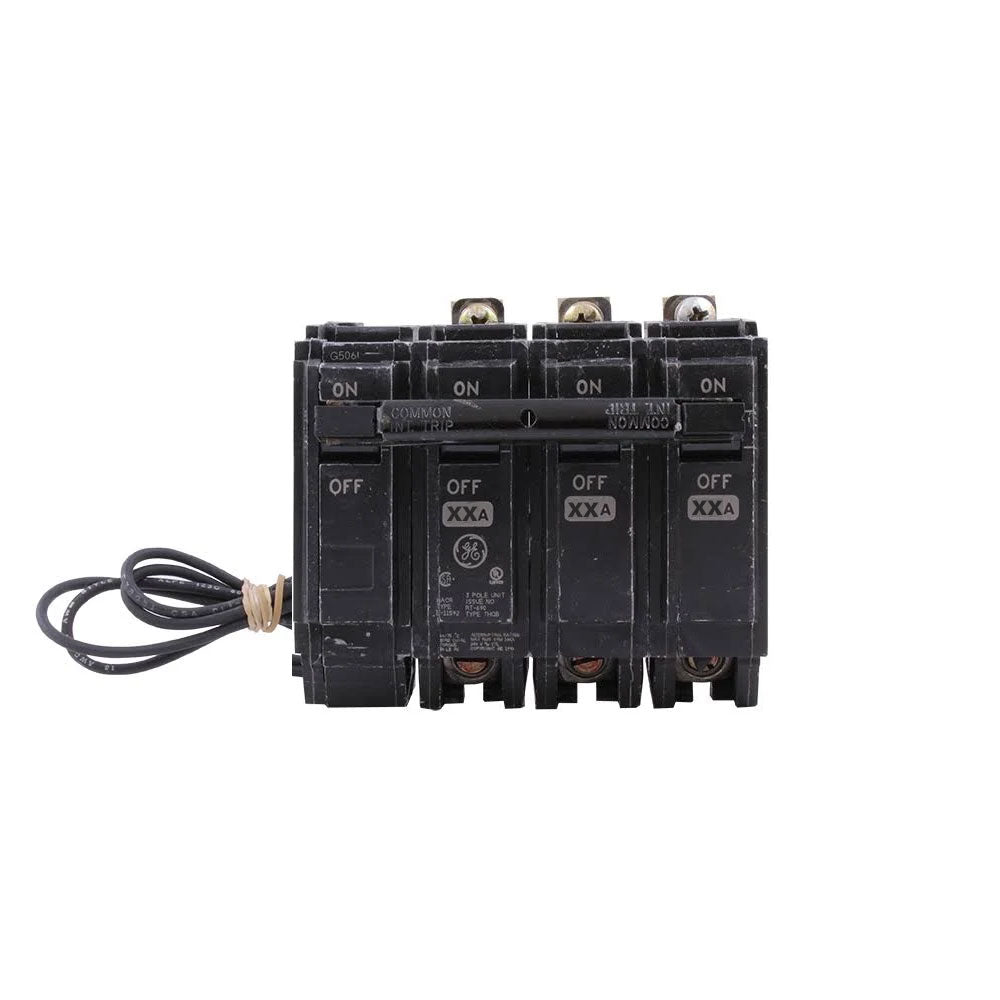

THQB32080ST1 is a General Electric 3 pole, 80 amp, 240 volt bolt-on circuit breaker with shunt trip designed for commercial and industrial applications.This THQB series breaker features a thermal magnetic trip unit with internal common trip, suitable for 120/240 VAC systems. It has a 10kA interrupting rating at 240V, is HACR rated for heating, air conditioning, and refrigeration equipment, and includes a factory-installed shunt trip for remote tripping. The breaker is Q-Line frame type with load side lug terminals and supports switch duty (SWD) operation.
- Amperage: 80 A
- Voltage: 120/240 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kA at 240V
- Series/Frame: THQB Q-Line
- Trip Unit: Thermal Magnetic with Shunt Trip (LI)
- Certifications: UL Listed, HACR Rated
- Internal Common Trip
- Switch Duty Rated (SWD)
- Suitable for Reverse Feed
Specifications
- Part Number: THQB32080ST1
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 10kA@208V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078316403420
- GTIN : 00783164034202
- Weight : 1
- Certification : Ul Listed
- Wire Size : 6 To 1/0 Awg (Copper) 4 To 1/0 Awg (Aluminum)
