Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQB32050ST1

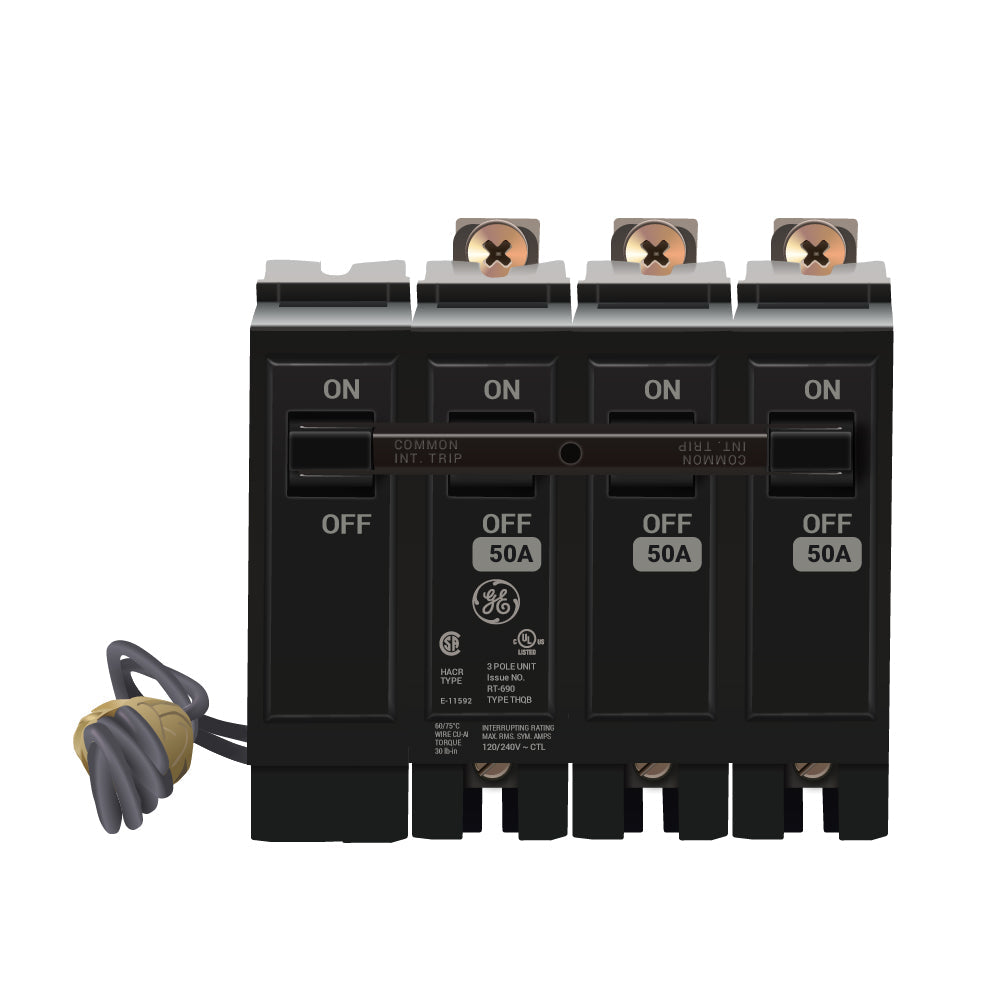

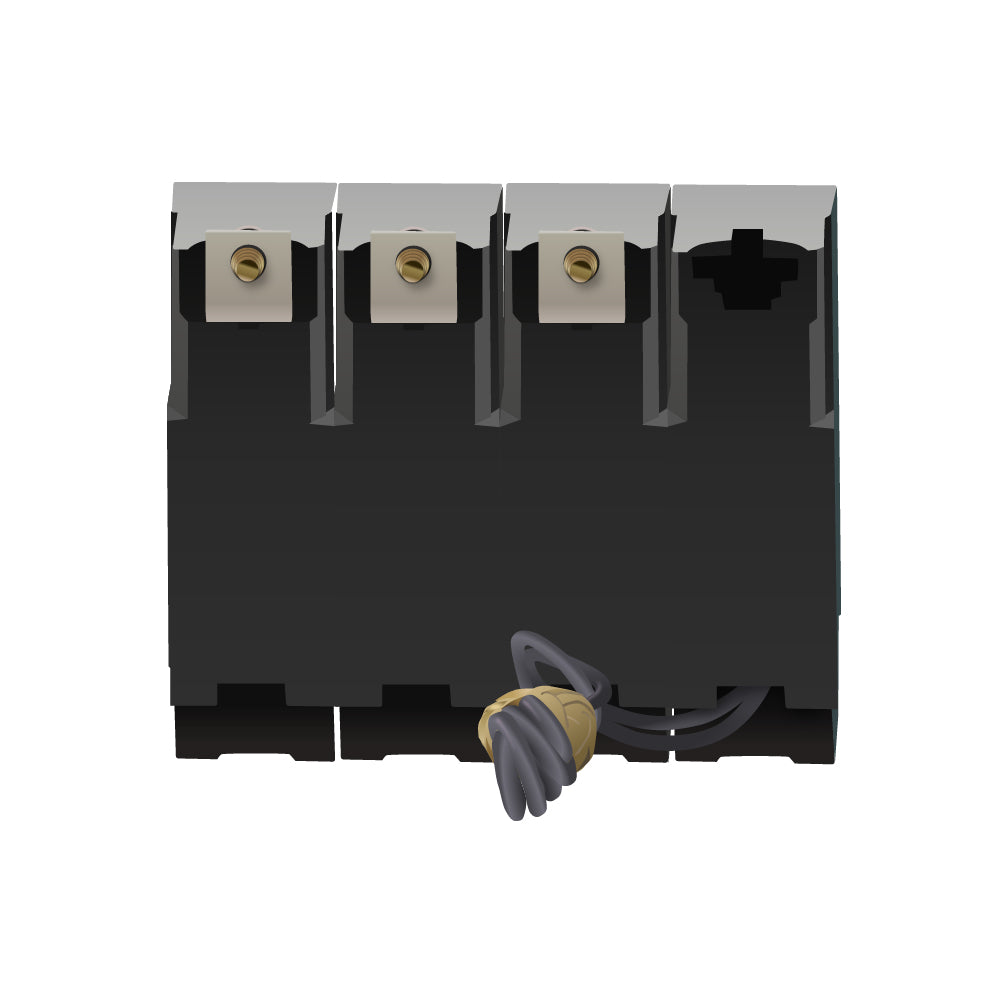

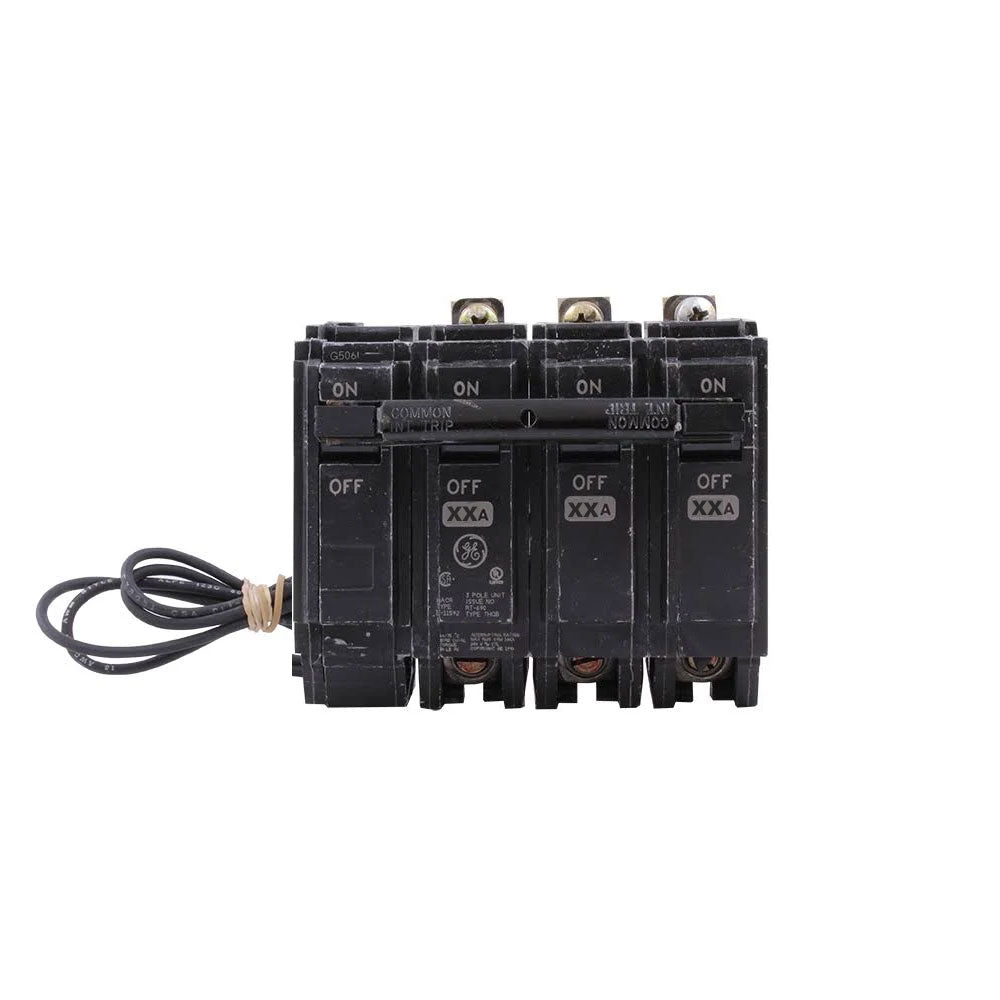

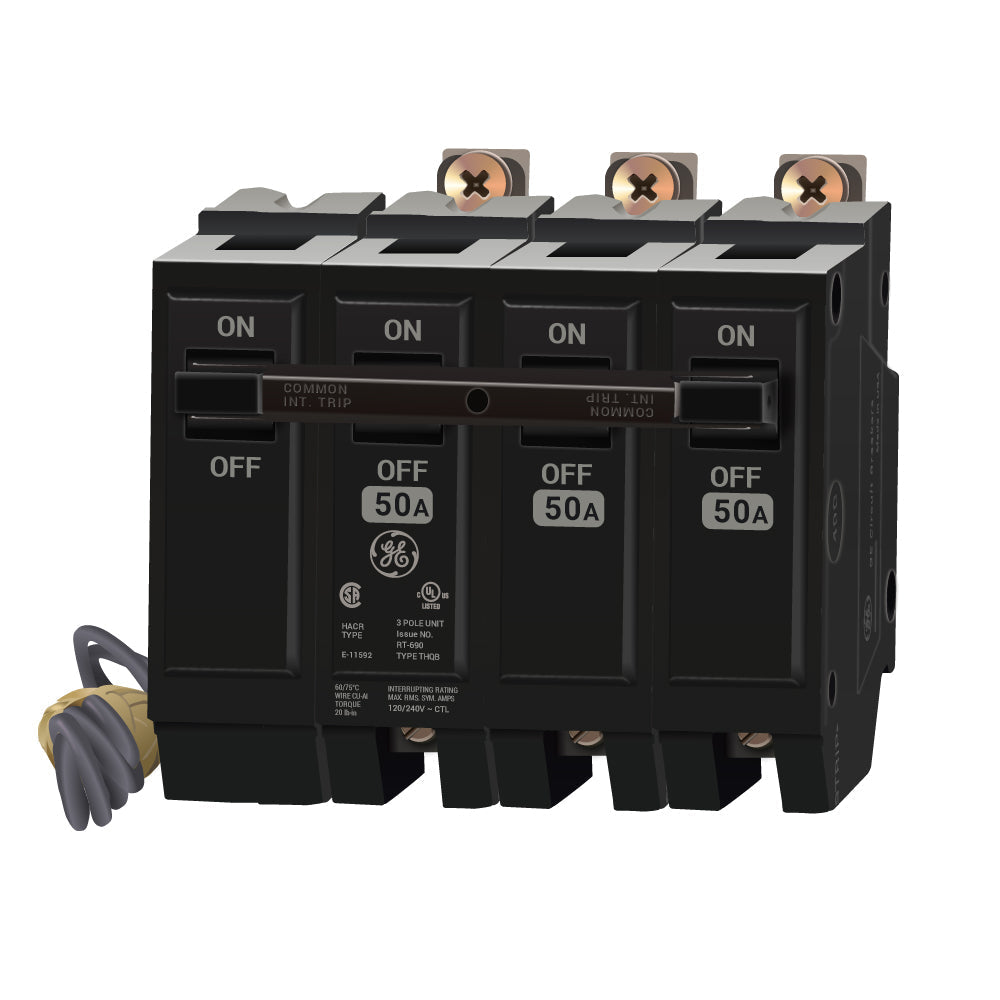

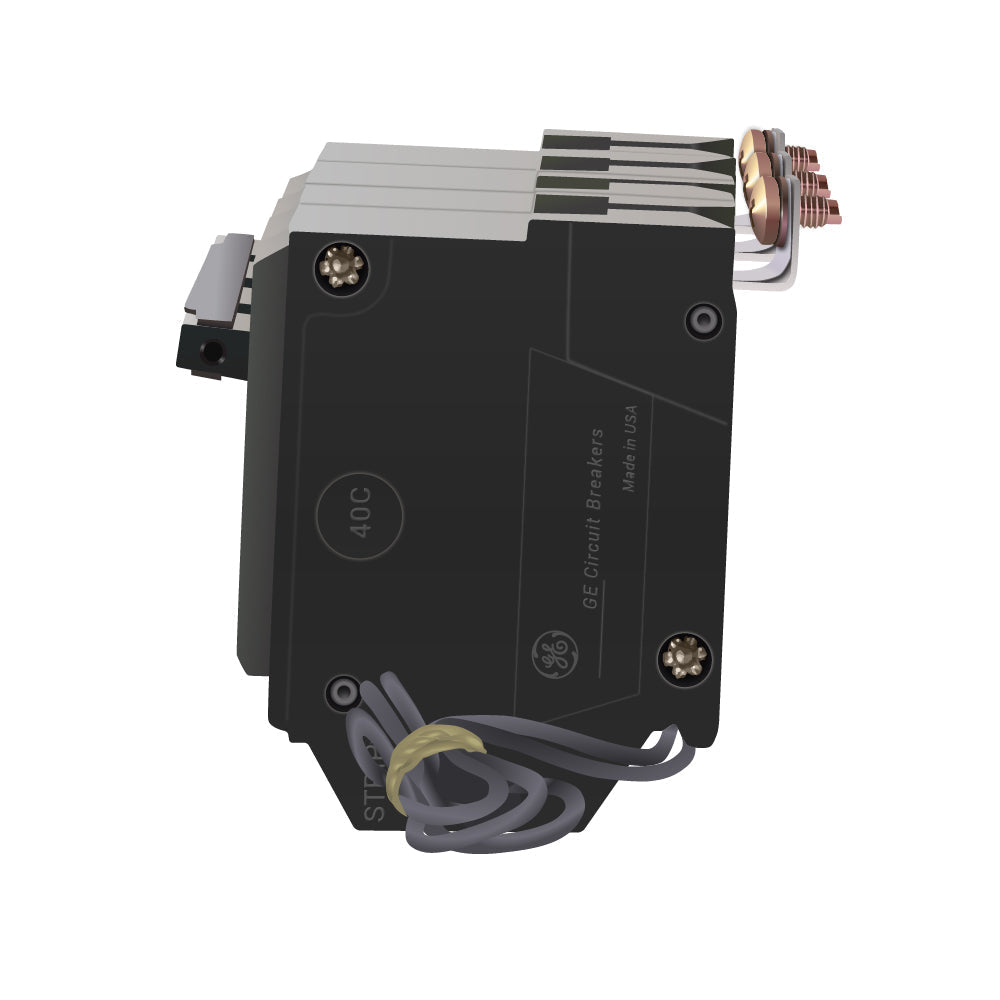

THQB32050ST1 is a General Electric Q-Line 3-pole molded case circuit breaker with shunt trip, rated for 50A and 240V AC, designed for commercial and industrial power distribution applications. This compact bolt-on circuit breaker features a thermal-magnetic trip unit with long-time and instantaneous functions, providing reliable protection for electrical circuits. The device is suitable for reverse feed applications and includes HACR markings for use with HVAC systems.
- Part Number: THQB32050ST1
- Manufacturer: General Electric
- Series/Frame: Q-Line
- Amperage: 50 A
- System Voltage: 240V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 10 kAIC
- Trip Unit: Thermal-Magnetic (LI)
- Shunt Trip: Yes
- Special Markings: HACR
- Continuous Current Rated: Standard
Specifications
- Part Number: THQB32050ST1
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 10kA@208V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 078316403414
- GTIN : 40783164034149
- Weight : 1 lb
- Certification : UL
