Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQB32040

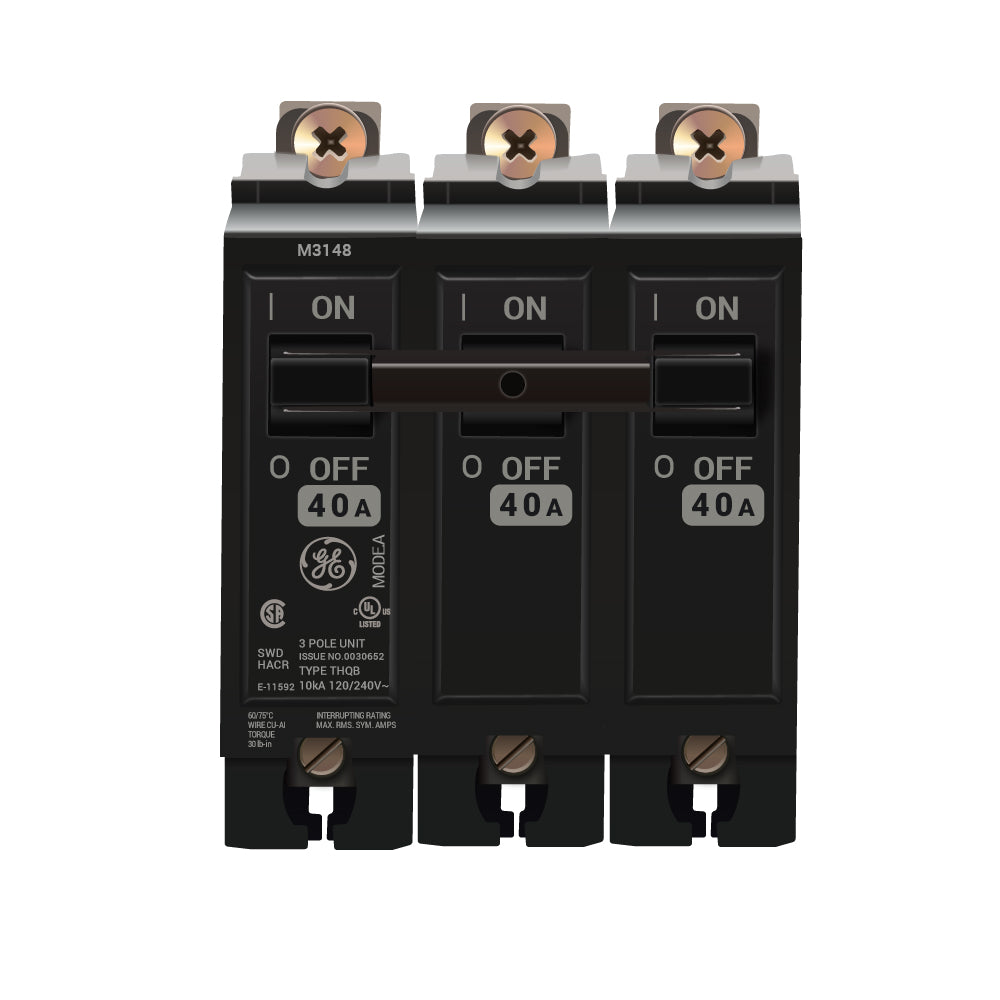

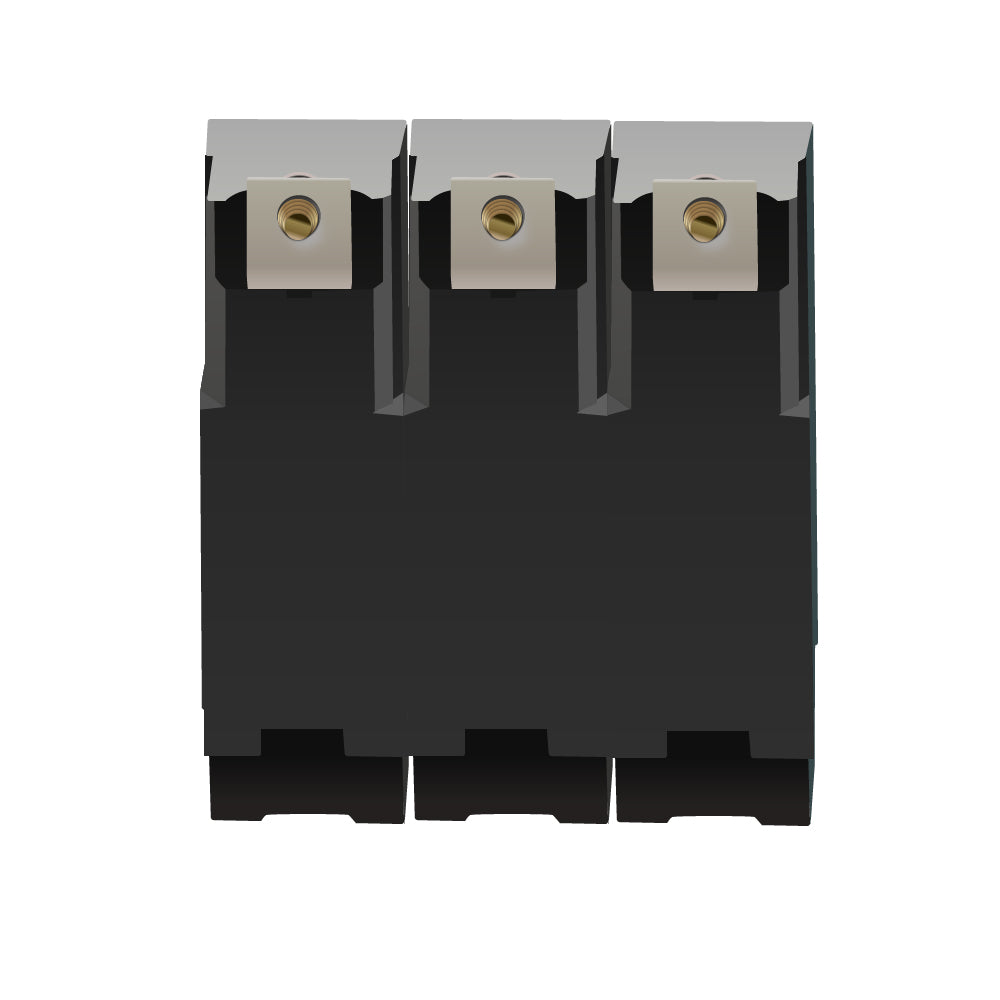

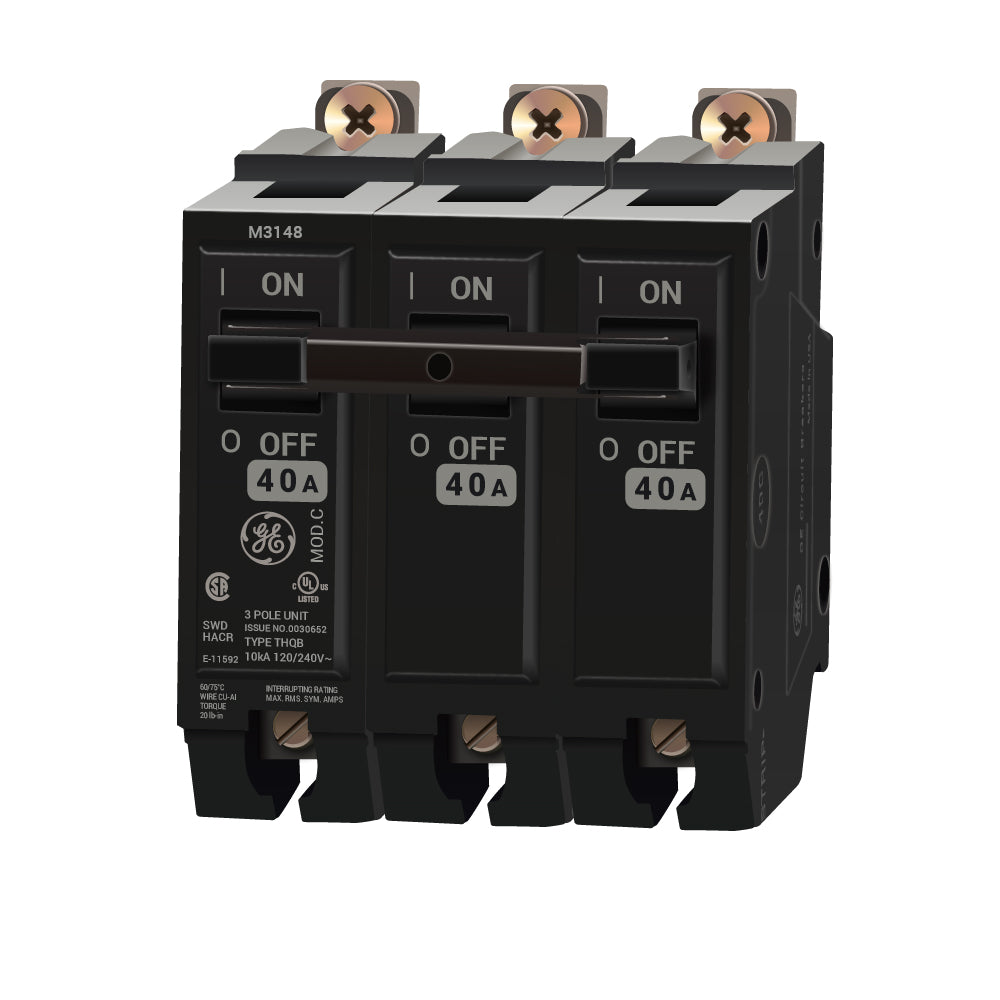

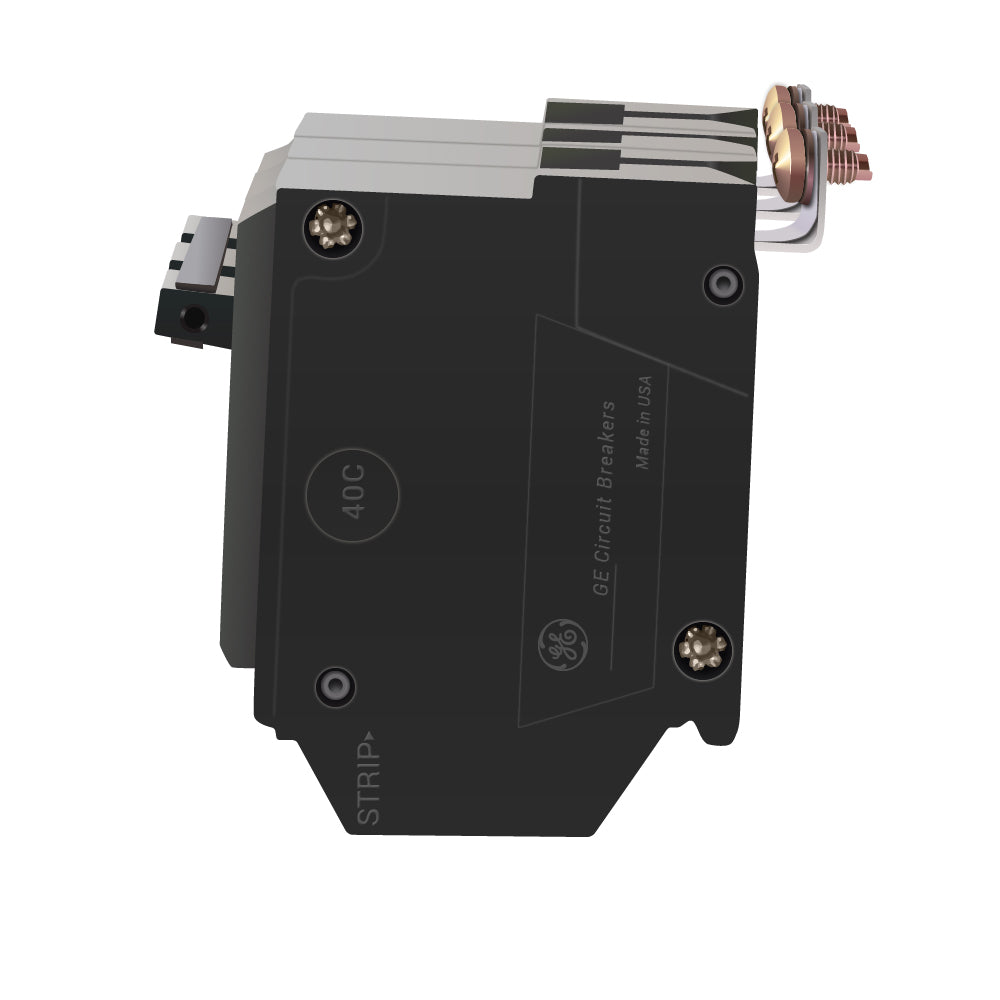

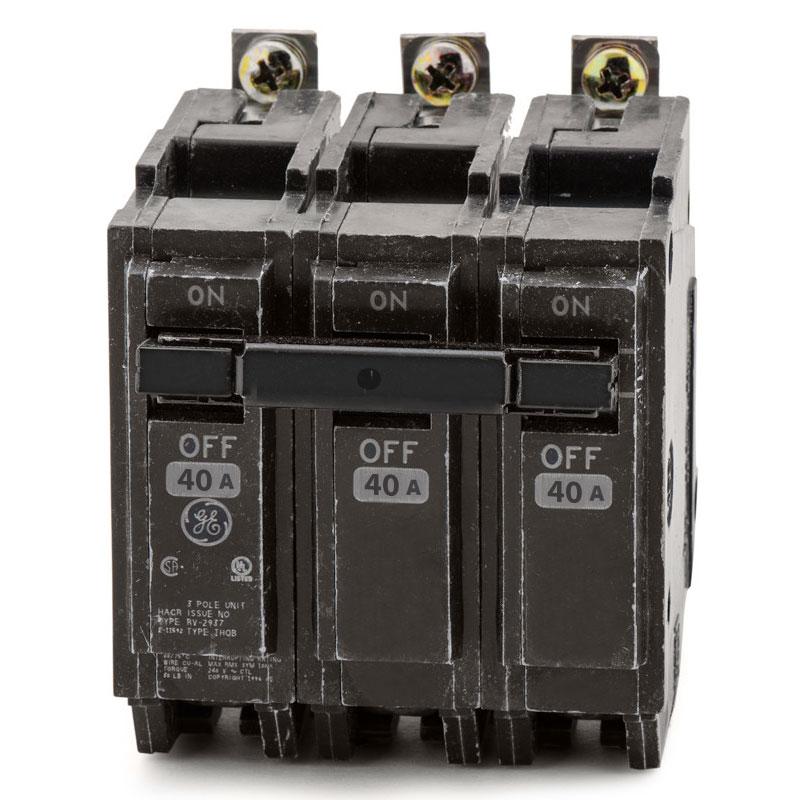

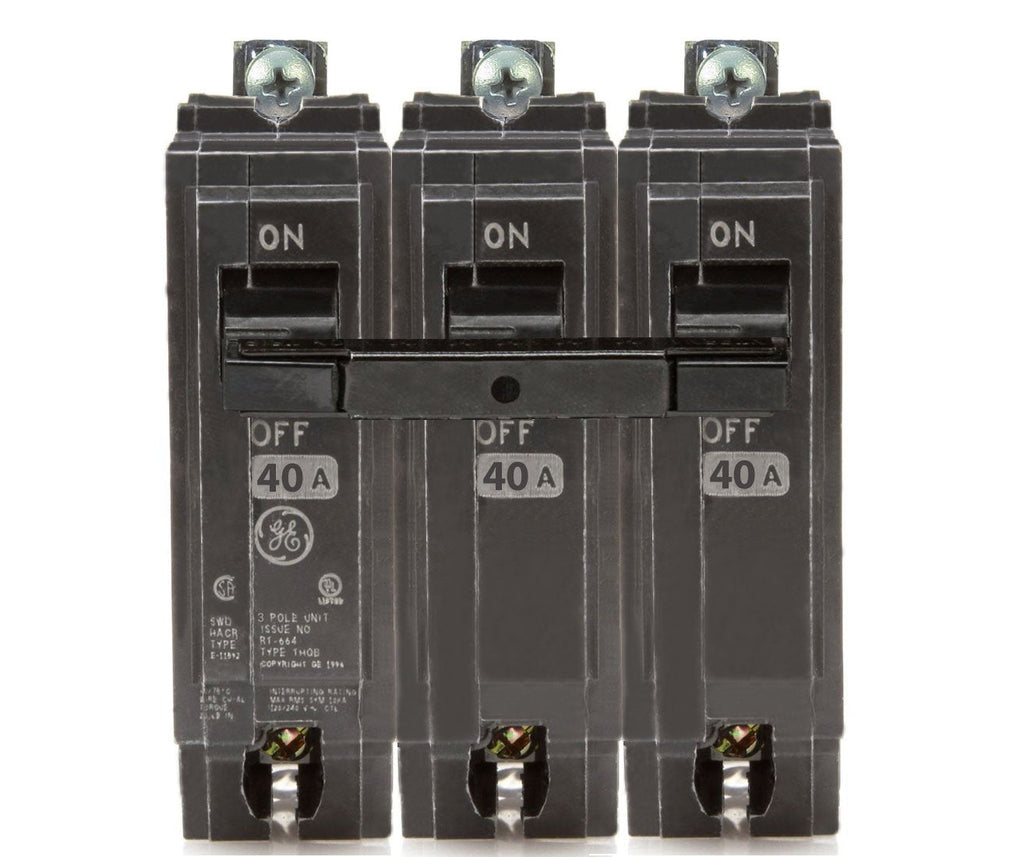

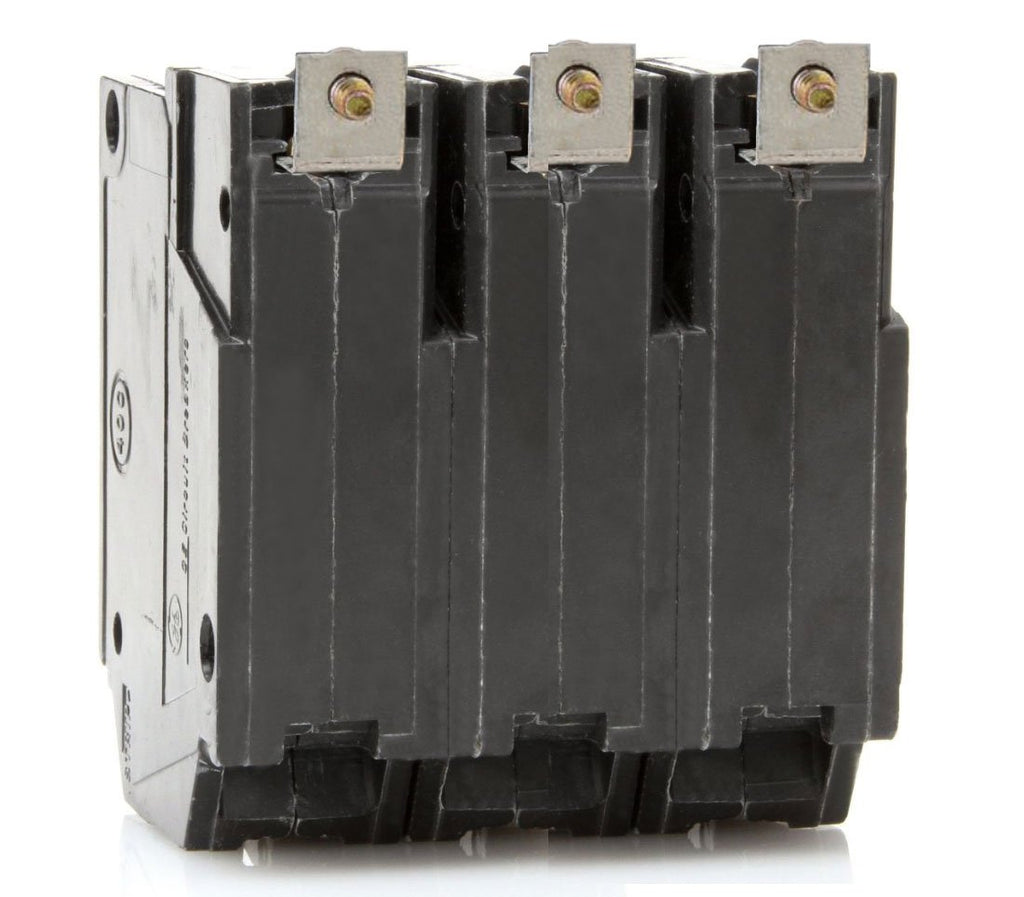

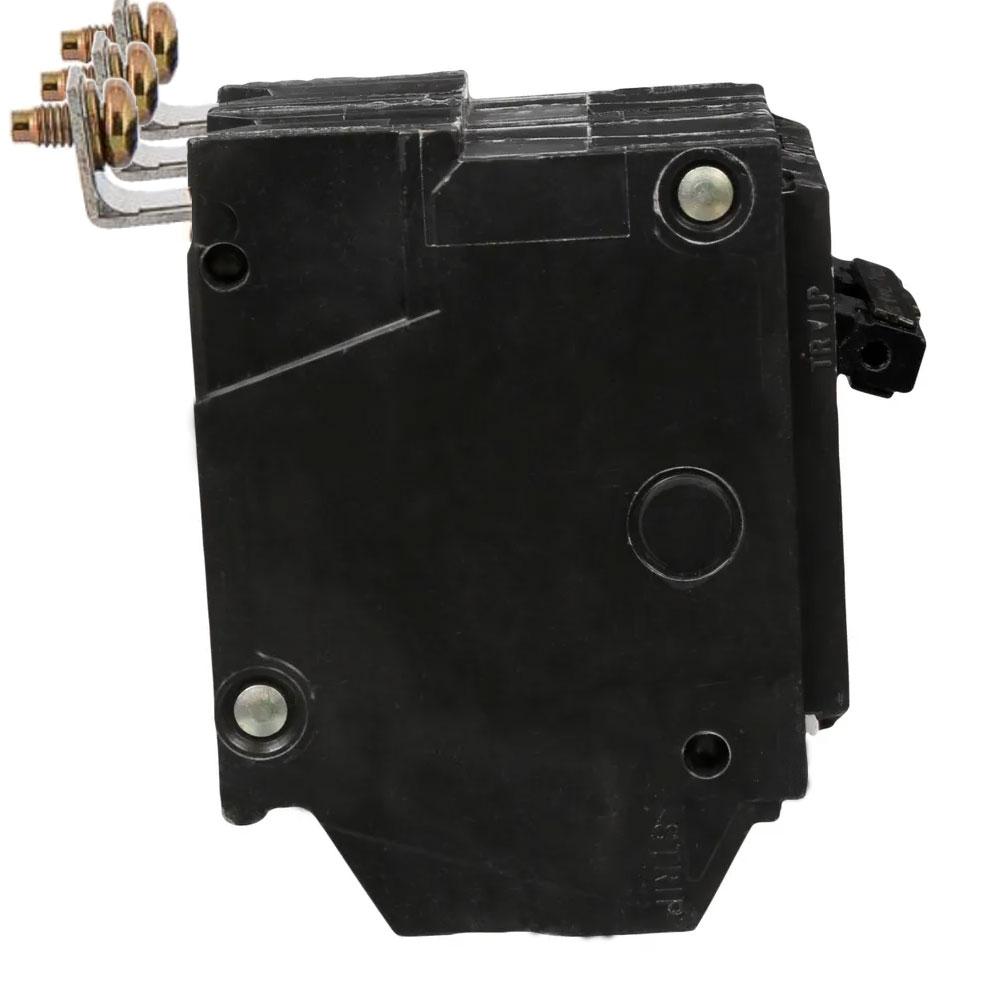

THQB32040 is a General Electric 3-pole, 40 amp, 240 volt bolt-on circuit breaker from the Q-Line A-Series II designed for residential and commercial applications.This miniature circuit breaker features a thermal-magnetic trip unit with a 10,000 amp interrupt rating, compatible with GE panel boards. It has a bolt-on mounting type and is 1 inch wide per pole, ensuring compact installation and reliable protection.
- Amperage: 40 Amps
- Voltage: 120/240 VAC
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10,000 Amps
- Series/Frame: Q-Line A-Series II
- Trip Unit: Thermal-Magnetic
- Width: 1 inch per pole
- Application: Residential and Commercial
- Non-Interchangeable Trip
Specifications
- Part Number: THQB32040
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 10kA@208V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 078316401242
- GTIN : 00783164012422
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 3.000 in
- Weight : 1
- Certification : Ul Listed
- Wire Size : 8 To 3 Awg (Copper/Aluminum)
