Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
THPR3616

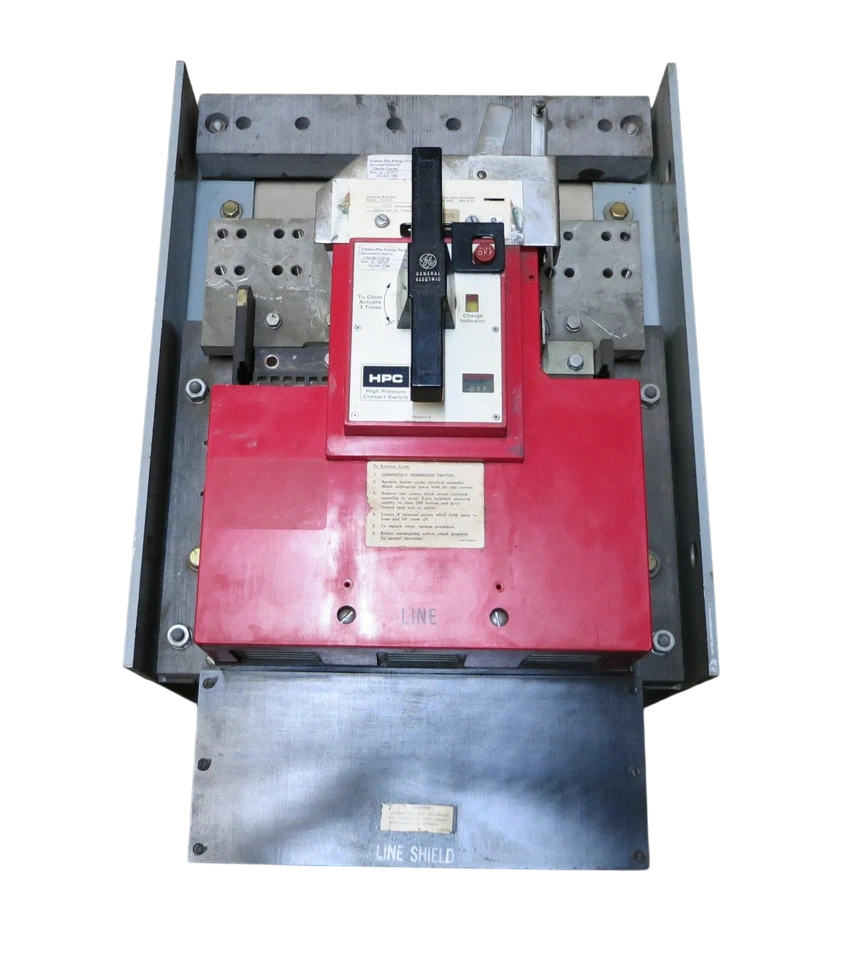

THPR3616 is a General Electric 1600A, 600V, 3-pole fusible high pressure contact switch designed for service or feeder disconnect applications. This switch features a manually operated mechanism and is suitable for use with Class L current-limiting fuses. The THPR3616 is part of the HPC series and is built for high interrupting capacity, making it ideal for demanding electrical environments. It is a top-feed, fixed mount (bolt-in) switch with provisions for padlocking and mechanical operations counter. The switch is not intended for ground fault protection or remote tripping applications.
- Part Number: THPR3616
- Manufacturer: General Electric
- Series: HPC
- Amperage: 1600A
- Voltage: 600V
- Poles: 3
- Mounting Type: Fixed (Bolt-In)
- Interrupt Rating: 200kA @ 480V
- Operation: Manual
- Feed Type: Top Feed
- Fusible: Yes
- Certifications: UL 1066, UL 489, NETA
Specifications
- Part Number: THPR3616
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Compatible Frames : LIP
Product Data
- Weight : 80
