Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description

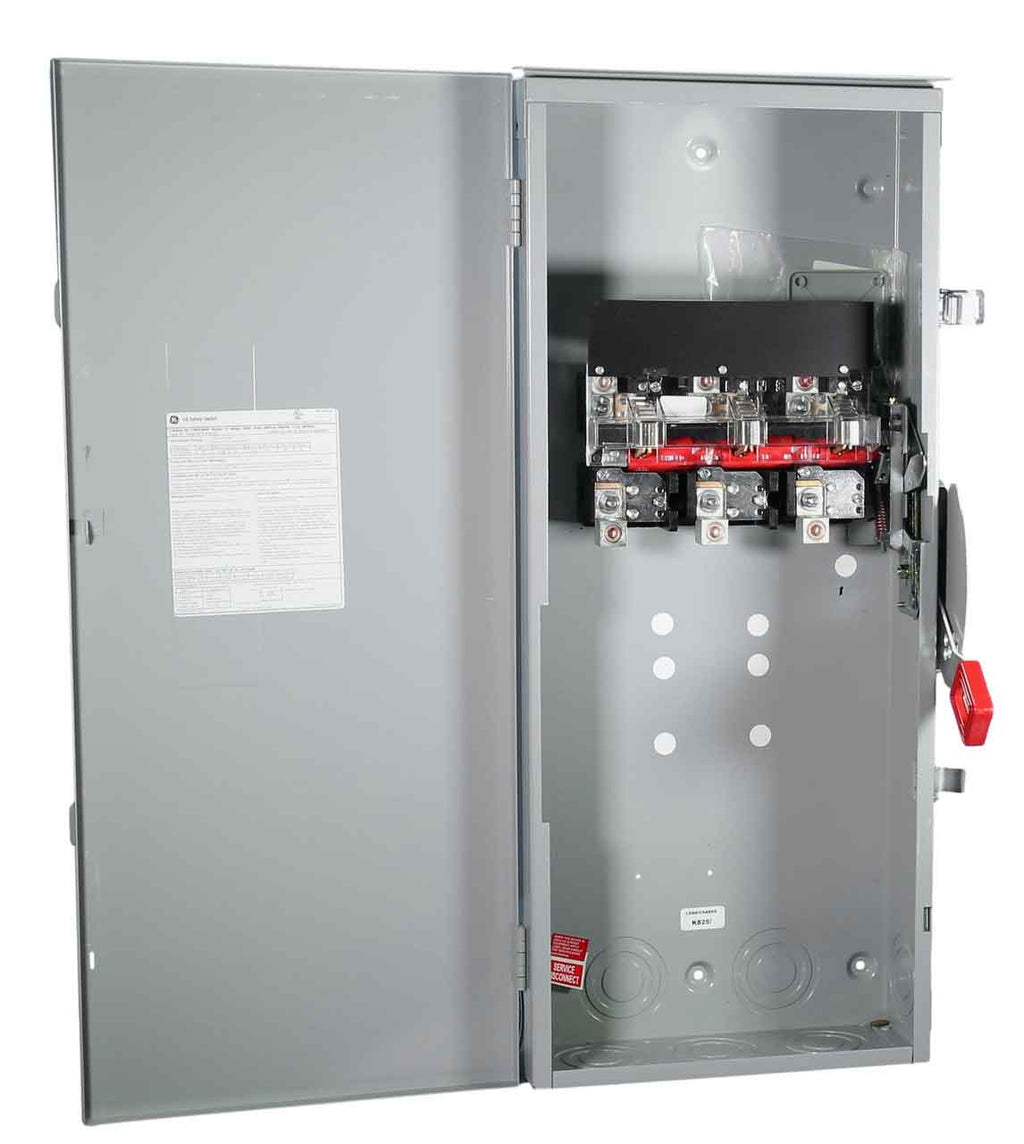

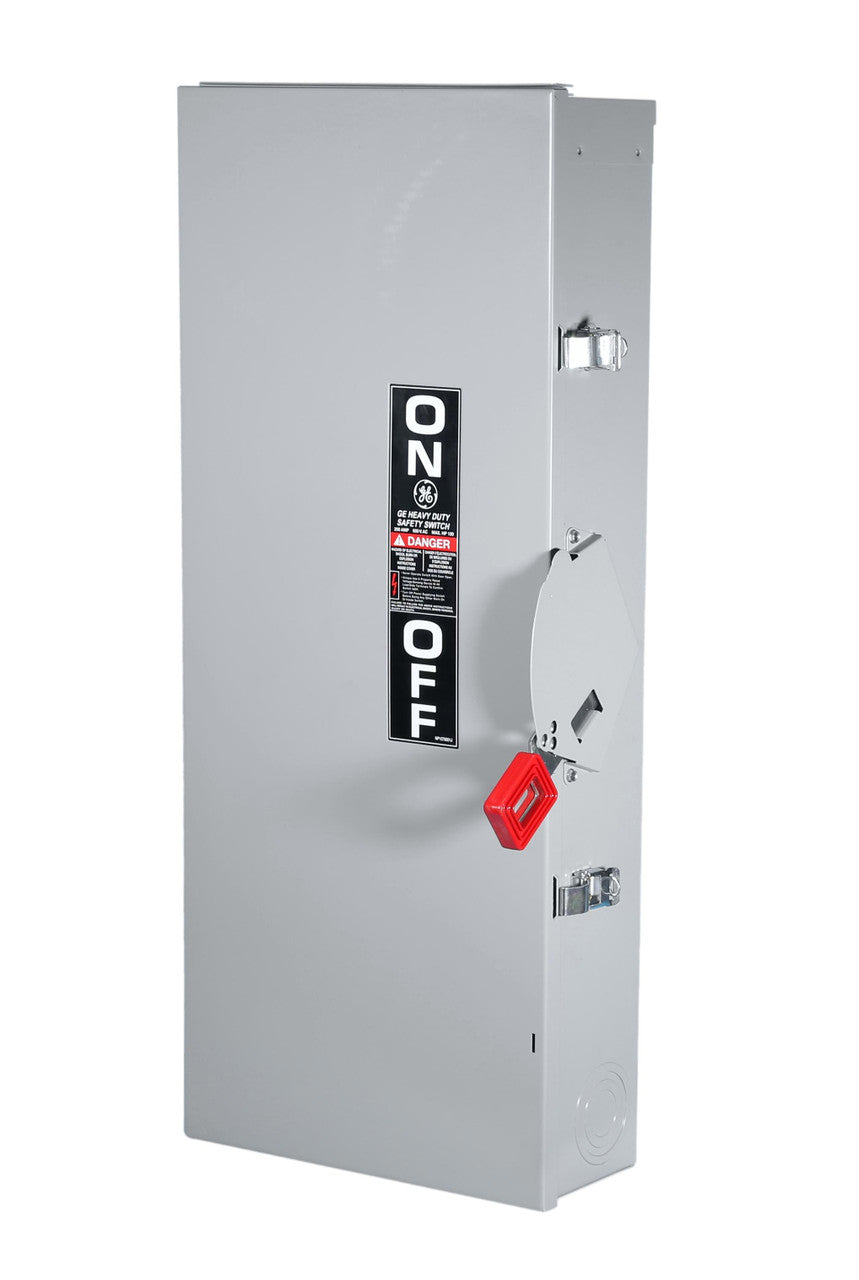

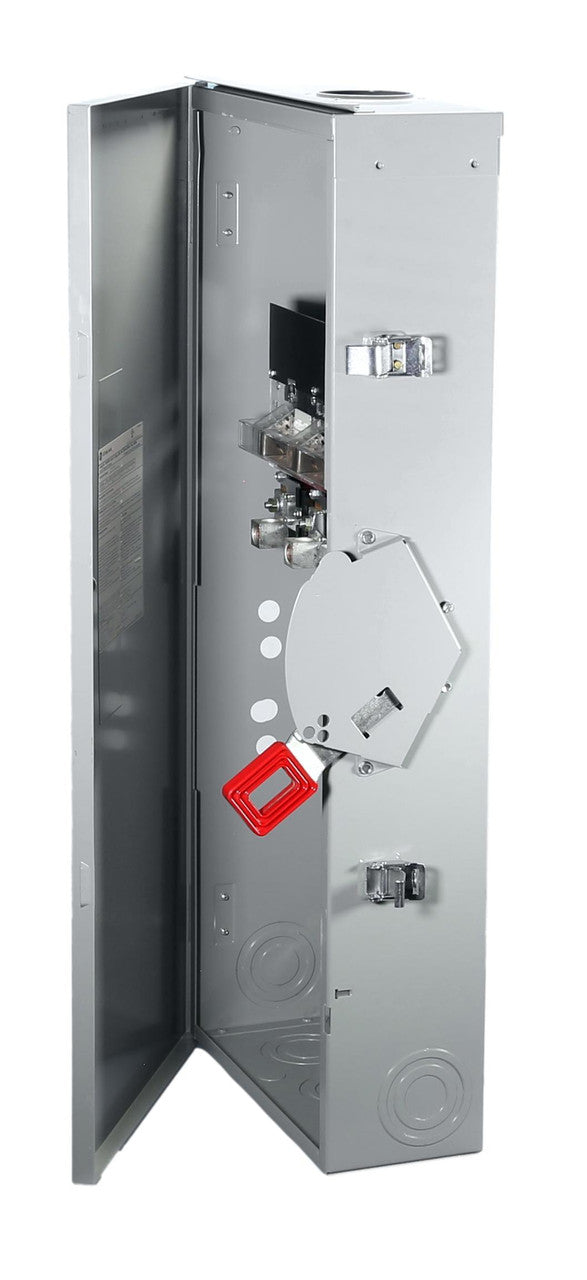

THN3364R
THN3364R is a General Electric heavy duty safety switch designed for commercial and industrial applications requiring reliable power distribution and safety.THN3364R features a 200 ampere rating, 600 volt AC capacity, and 3 poles in a NEMA 3R outdoor-rated enclosure. This non-fusible switch supports up to 150 horsepower at 600 VAC and complies with UL and CSA certifications. It is constructed for durability and ease of installation with a metallic composition and suitable for 3-wire connections.
- Key Specifications
- Amperage: 200 A
- Voltage: 600 V AC
- Poles: 3
- Mounting Type: Surface mount (NEMA 3R enclosure)
- Interrupt Rating: Heavy Duty
- Series/Frame: Spec-Setter TH Series
- Trip Unit: Non-fusible
- Certifications: UL Listed, CSA Certified
- Horsepower Rating: 150 HP at 600 VAC
- Wire Range: 2-250 Cu/Al
- Weight: Approximately 33 lbs
Specifications
- Part Number: THN3364R
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Spec-Setter
- Type : THN
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 783164011357
- GTIN : 00783643152076
- Weight : 30 lb
