Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THJK436F000

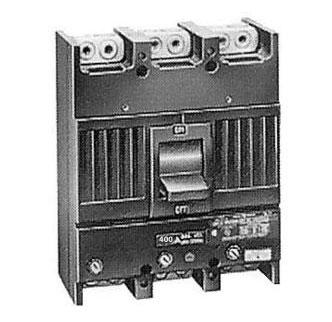

THJK436F000 is a General Electric 3-pole, 400 amp, 600 volt thermal magnetic molded case circuit breaker frame designed for industrial applications.This breaker frame type TJK supports a voltage rating of 600 VAC and a current rating of 400 amps with a magnetic trip unit. It features a bolt-on mounting type and offers interrupting ratings up to 42kA at 240VAC, 30kA at 480VAC, and 22kA at 600VAC. The breaker is compatible with line and load lug terminal connections and is certified to CSA LR40350 and UL E11592 standards.
- Key Specifications
- Manufacturer: General Electric
- Part Number: THJK436F000
- Frame Type: TJK
- Amperage: 400A
- Voltage: 600 VAC
- Poles: 3
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC
- Mounting Type: Bolt-on
- Certifications: CSA LR40350, UL E11592
- Terminal Connection: Line and Load Lugs
Additional Information
Frame only, Trip unit and lugs not included.
Specifications
- Part Number: THJK436F000
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : THJK
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164010596
- GTIN : 00783164010596
- Weight : 16 lb
