Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQL2180

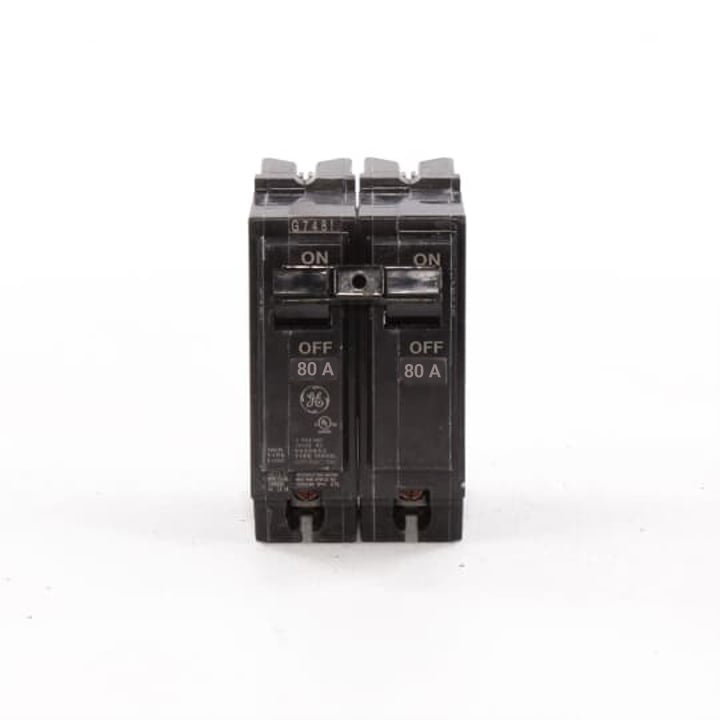

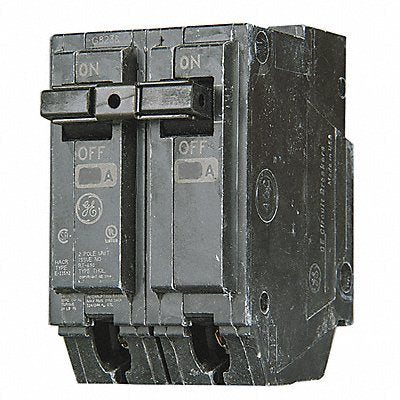

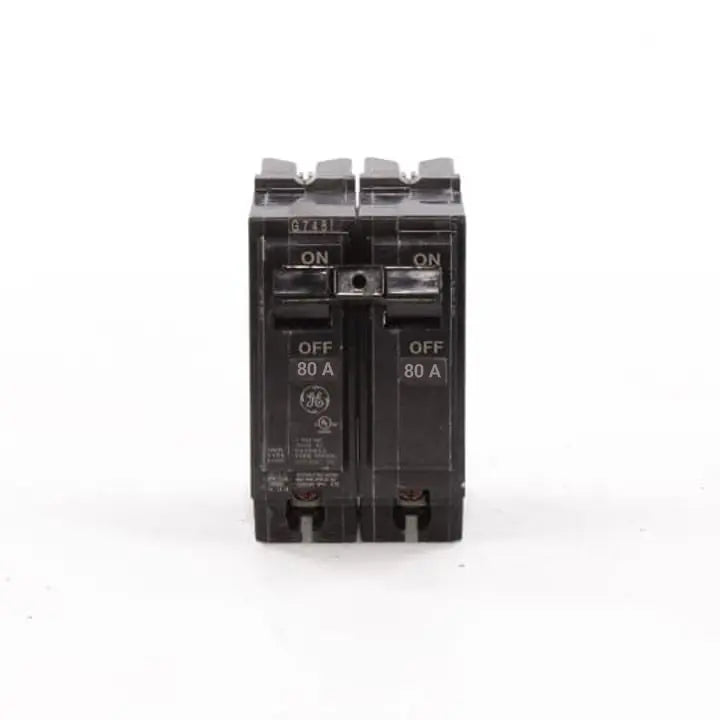

THHQL2180 is a General Electric Q-Line circuit breaker designed for residential and light commercial applications.THHQL2180 features an 80 ampere rating, 120/240 volt AC operation, and 2 poles with a 22 kA interrupting capacity. It uses a fixed thermal magnetic trip unit with a non-interchangeable trip style and is part of the Q-Line frame series.
- Amperage: 80 A
- Voltage: 120/240 VAC
- Poles: 2
- Interrupt Rating: 22 kAIC
- Frame Type: Q-Line (THHQL)
- Trip Unit: Fixed Thermal Magnetic, Non-Interchangeable
- Mounting Type: Load Center
- Certification: UL Listed
- Application: Residential and Light Commercial
- Weight: Approximately 3 lbs
Specifications
- Part Number: THHQL2180
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQL
- Voltage : 120
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 22kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164092059
- GTIN : 00783164092059
- Weight : 3
- Certification : UL
- Wire Size : 6 to 1/0 AWG, 4 to 1/0 AWG
